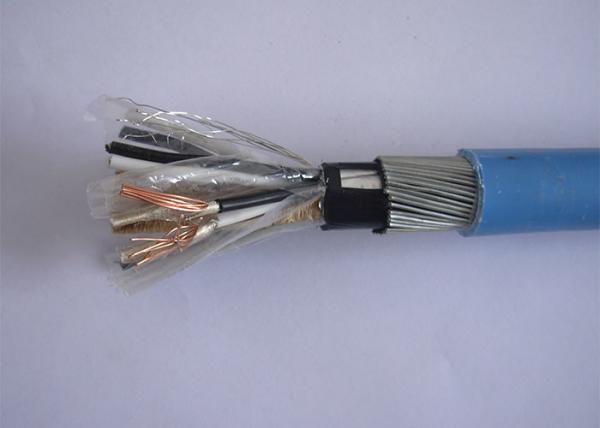

IS And OS Multi Pair Shielded Cable SWA 1.5mm2 Instrumentation And Control Cables
IS And OS Multi Pair Shielded Cable SWA 1.5mm2 Instrumentation And Control Cables image
Brand Name :
Yifang
Model Number :
22×0.75mm2
Place of Origin :
china
MOQ :
1000m
Price :
USD 0.8-9.6/m
Payment Terms :
T/T
Supply Ability :
300km/month
Delivery Time :
20-30days
Packaging Details :
wooden-steel drum
insulation :
pvc
sheath :
pvc
screen :
individual screen
color :
black
armor :
SWA or STA
IS and OS multi pairs XLPE insulation HDPE sheath instrumentation cable SWA 1.5mm2
1. Application :
Instrument cable has a broad range of uses,particularly in the petrochemical ,pulp,paper and sawmill,and other process industries.
Instrument cable design for wet and dry locations ,it is resistent to mechanical damage and corrosive chenicals ,and it is often employed in raceways,direct burial and control applications.
2. Construction
1. Conductor: bare copper
2. Insulation: pvc/pe/xlpe
3. Individul shield: aluminum/polyester tape with drain wire
4. Overall shield : overall aluminum/polyester tape with drain wire
5. Inner sheath: pvc/pe/lszh
6. Armoured :galvanized steel wire armoured
7. Outer jacket: pvc/pe/lszh
3. Technical data Instrument cable:
| National types | Cable structure characteristics | ||||||
| DJYPV | DJYJPV | Copper wires braided individual screen of each pair | |||||
| DJYP2V | DJYJP2V | Copper tape wrapped individual screen of each pair | |||||
| DJYP3V | DJYJP3V | Laminated Aluminium plastic strip individual screen of each pair | |||||
| DJYVP | DJYJVP | Copper wires braided overall screen | |||||
| DJYVP2 | DJYJVP2 | Copper tape wrapped overall screen | |||||
| DJYVP3 | DJYJVP3 | Laminated Aluminium plastic strip overall screen | |||||
| DJYPVP | DJYJPVP | Copper wires braided individual screen and overll screen | |||||
| DJYP2VP2 | DJYJP2VP2 | Copper tape wrapped individual screen and overll screen | |||||
| DJYP3VP3 | DJYJP3VP3 | Laminated Aluminium plastic strip individual screen and overll screen | |||||
We are China IS And OS Multi Pair Shielded Cable SWA 1.5mm2 Instrumentation And Control Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: individually shielded twisted pair cable, Instrumentation Cable, multi pair shielded cableSimilar Or Related
-
