IP68 Waterproof Copper Solar PV Cable 1500V Twin Extension With Connector 200m / Roll

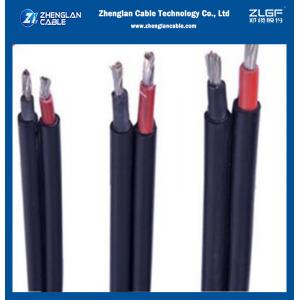

IP68 Waterproof Copper Solar PV Cable 1500V Twin Extension With Connector 200m / Roll image
factory copper Solar Cable IP68 Waterproof 1500V Twin Extension Cable with PV Connecto 200m/roll
Solar cables are designed to be used in photovoltaic power supply systems (cable interconnections between the solar panels and the other components of the photovoltaic system) and similar applications for free hanging, movable, fixed installation and buried in ground in constructional covered systems. These cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture.
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
factory copper Solar Cable IP68 Waterproof 1500V Twin Extension Cable with PV Connecto 200m/roll CHARACTERISTICS:
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
factory copper Solar Cable IP68 Waterproof 1500V Twin Extension Cable with PV Connecto 200m/roll Technical Date:
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
factory copper Solar Cable IP68 Waterproof 1500V Twin Extension Cable with PV Connecto 200m/roll specification:
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1×16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1×25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1×35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |
factory copper Solar Cable IP68 Waterproof 1500V Twin Extension Cable with PV Connecto 200m/roll images:
We are China IP68 Waterproof Copper Solar PV Cable 1500V Twin Extension With Connector 200m / Roll manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
