Insulated Conductor Gripper Cable Pulling Clamp Transmission Line Stringing Tools

 China Insulated Conductor Gripper Cable Pulling Clamp Transmission Line Stringing Tools supplier

Insulated Conductor Gripper Cable Pulling Clamp Transmission Line Stringing Tools image

Get a Quote Email to us

Brand Name :Suntech
Model Number :SKJL-1
Certification :CE and ISO
Place of Origin :Ningbo,China
MOQ :1pcs
Price :Get the lastest price
Payment Terms :L/C, T/T, Western Union
Supply Ability :2000pcs per month
Delivery Time :In Stock
Packaging Details :Exported Wooden Case
Model :SKJL-1
Name :Conductor Gripper
Rated Load :10KN
Max open :15 Mm
Weight :1.4 Kg
Material :Aluminum Alloy

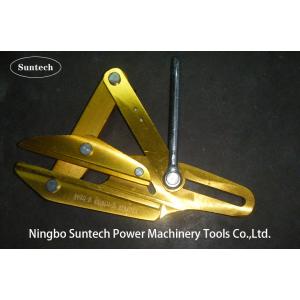

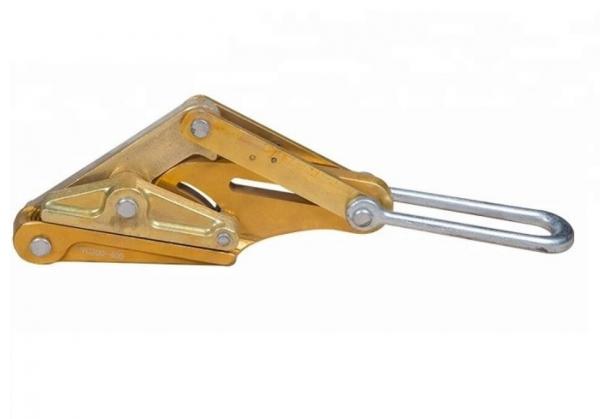

Insulated Conductor Automatic Cable Pulling Clamps SKJL-1 15mm Max Gap

Cable Pulling Clamps Features:Insulated Conductor Automatic Cable Pulling Clamps SKJL-1 15mm Max Gap is adopted the serpentine and wavy jaw, positive grip, and excellent protective to the insulation.

Insulated Conductor Automatic Cable Pulling Clamps SKJL-1 15mm Max Gap,model SHJL, has the four classification, named 0.5T,1T,1.5T,and 2T, to fit the different diameter of applicable wire, from 6mm to 29mm, when you put the order, pls make sure this gripper can meet your actual wire diameter, our automatic cable pulling clamps, the maximum gap reach is also accordingly, the material you can feel assured we adopted the first class aluminum alloy, that can keep the best strength, and durable life time, and very easy to show the features when you use them.

In plant, we also have the other kinds of come along clamps, like earth wire clamps, universal gripper, dual cam earth wire gripper, aluminum alloy conductor gripper, if you are interest to see,please freely ask us,whatever, we are willing to support you.

Order number Model Rated load (kN) Diameter of applicable wire Maximum gap (mm) Weight (kg) Remark
13182 SKJL-0.5 5 Φ6~Φ10 12 1.0 Aluminum alloy
13192 SKJL-1 10 Φ10~Φ14 15 1.4 Aluminum alloy
13202 SKJL-1.5 15 Φ14~Φ20 22 3 Aluminum alloy
13212 SKJL-2 20 Φ20~Φ25 27 4.0 Aluminum alloy
13213 SKJLA-2 20 Φ25~Φ29 31 4.0 Aluminum alloy

How about the delivery date?
A. Within 5-7 days after deposit received. Urgent order or small order will be handled case by case.

What are your Payment terms?

A. General speaking: TT 30% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment

We are China Insulated Conductor Gripper Cable Pulling Clamp Transmission Line Stringing Tools manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
