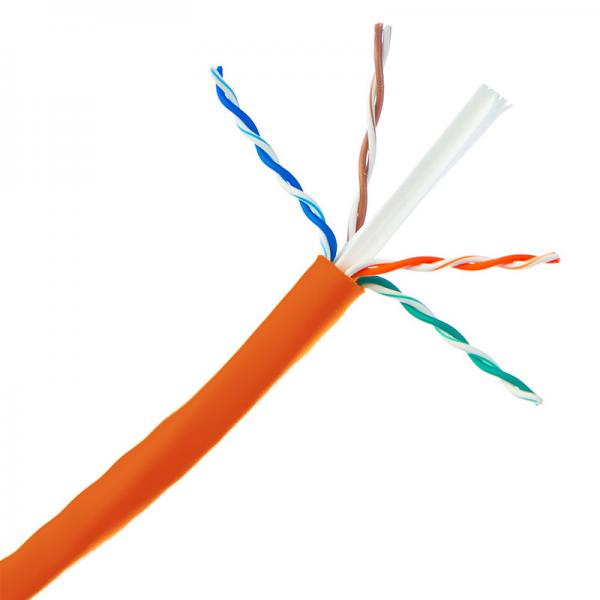

Indoor Cat6 UTP FTP Network Cable 23AWG BC/CCA Conductor Blue Red Black Grey
Indoor Cat6 UTP FTP Network Cable 23AWG BC/CCA Conductor Blue Red Black Grey image
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
23AWG BC/CCA Conductor Cat6 UTP FTP Network Cable Price
Production Description:
Application:
These are structured cables for campus, riser and horizontal installations. Suitable for Ethernet Applications and compatible with all known connection systems. Ideal for high performance workstation applications including voice/ data systems, digital video, broadband and voice over internet protocol, etc.
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1,10,100,250MHz | Max. 570, 545, 538 & 536 ns/100 m |
| Propagation Delay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Features:
· Fully Complies to the requirements of TIA/EIA 568 C.2.
· Enhanced performance specification up to 250 MHz.
· Cables verified for performance with UL Certification and shipped with UL authorized markings an Labels
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 6.35 mm (Max.) |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
| Available Colour | : Grey or As Per Customer Requirement |
Construction
| 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) | |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath material: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 14.2 kg | 305m/roll pull box | 42 x 24 x 42 |
800 box |
6. Product Image
