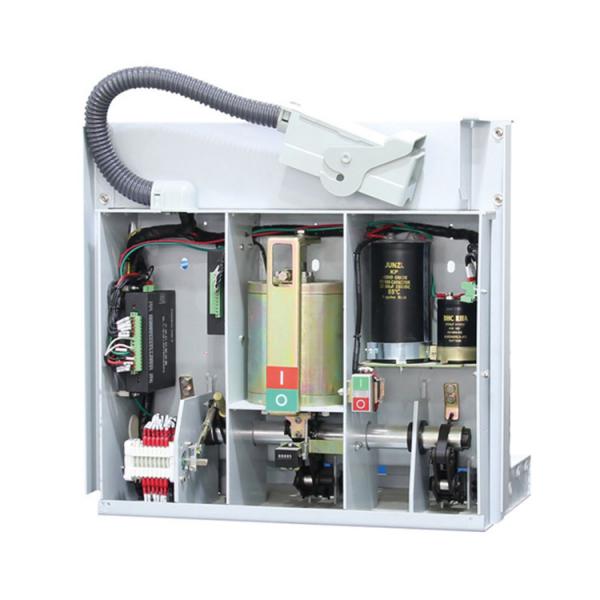

Indoor 3 Phase 12kV 630A Permanent Magnetic Circuit Breaker
Indoor 3 Phase 12kV 630A Permanent Magnetic Circuit Breaker image
Brand Name :
Suntech
Model Number :
ZN63(VS1)-12
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C , T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
25-30 days after Payment
Packaging Details :
Exported Wooden Boxes
Name :
Permanent Magnetic Circuit Breaker
Ambient temperature :
-15°C-+40°C
Altitude :
≤1000m
Poles Number :
3
Permanent Magnetic Indoor 3 Phase 12kV 630A High Voltage Vacuum Circuit Breaker
VS1- 12 series permanent magnetic indoor vacum circuit breaker is a three-phase AC 50Hz. rated vltage of 12kV indoor switchgear, control and protection for industrial and mining enterprise, power plants and substatins, eletrical faciltes, and for frequent operatin place.
Adopting VET operating mechanism and circuit breaker integrated, design can be used as a fixed insallation unit can also be equipped with special advance mechanism. the composition of handcart unit used.
Model description
| Ambient condition |
1. Altitude:≤1000m; 2. Ambient temperature: -15℃- +40℃; 3. Earthquake does not exceed degree 8; 4. Relative humidity: daily average value is not greater than 95%, monthly average is not greater than 90%; 5. The surrounding air is not corrosive and flammable gas, steam and other significant plluion; |
We are China Indoor 3 Phase 12kV 630A Permanent Magnetic Circuit Breaker manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 12KV Indoor Circuit Breaker, 12KV Permanent Magnetic Circuit Breaker, 630A Permanent Magnetic Circuit Breaker, Vacuum Circuit BreakerSimilar Or Related
-
