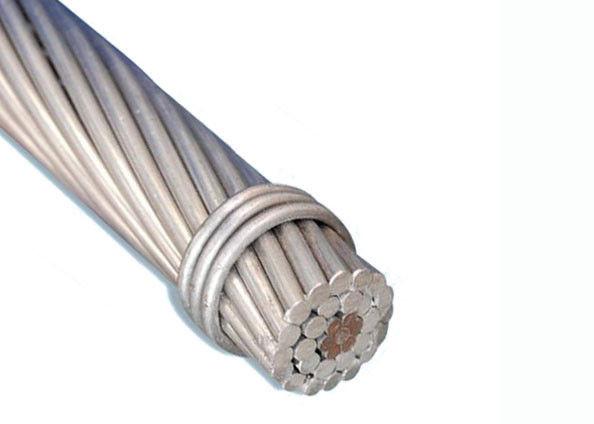

IEC61089 ACSR Bare Overhead Conductors , Overhead Electrical Conductors
IEC61089 ACSR Bare Overhead Conductors , Overhead Electrical Conductors image
Brand Name :
Shenzhen Chengtiantai
Model Number :
UTP Category 6A Indoor Cable Type 1
Certification :
CE,UL& ROHS
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1000 m
Price :
on request
Payment Terms :
L/C, T/T
Supply Ability :
50,000 m/day
Delivery Time :
7 / 15 working days
Packaging Details :
steel wooden drum
AModel Number :
ACSR
Conductor Material :
Aluminum Clad Steel
Application :
Overhead
Conductor Type :
Stranded
Standard :
IEC 61089
conductor :
bared
Aluminum conductor steel reinforced (ACSR)
IEC61089, BS215 part2, ASTM B232, DIN48204, BS EN50182, JIS C3110, NF C34-120,GB/T 1179-2008
Brief Description:
ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium (E.C. GRADE).
ACSR CONDUCTOR is available in a wide range of steel varying from as low as 6% to as high as 40 %. The higher strength ACSR CONDUCTORS are used for river crossings, overhead ground wires, installations involving extra long spans etc.. Against any given resistance of conductor, ACSR
CONDUCTORS may be manufactured for having a wide range of tensile strength as per requirement.The principal advantage of these conductors are high tensile strength and light weight with longer spans as well as with lesser supports. Due to the greater diameter of ACSR CONDUCTORS a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.
Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR CONDUTOR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity. ACSR CONDUTORS are used extensively for overhead ground wires, river crossings etc. These ACSR CONDUTORS are available with us in various types for meeting the exact requirements of the clients.
Construction:
Aluminum alloy 1350-H19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B,or C galvanizing; "aluminized" aluminum coated (AZ); or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
Aluminum Conductors Steel Reinforced IEC 61089 | |||||||||||||
Code number | Steel ratio | Areas | No. of wires |
Wire diam. |
Diameter |
Linear mass |
Rated strength |
D.C resistance |
|||||
Alum. | Steel | Total | Al | St. | Alum. | Steel | Core | Cond. | |||||
% | mm2 | mm2 | mm2 | mm | mm | mm | mm | kg/km | kN | Ohn/km | |||
16 | 17 | 16 | 2.67 | 18.7 | 6 | 1 | 1.84 | 1.84 | 1.84 | 5.53 | 64.6 | 6.08 | 1.7934 |
25 | 17 | 25 | 4.17 | 29.2 | 6 | 1 | 2.30 | 2.30 | 2.30 | 6.91 | 100.9 | 9.13 | 1.1478 |
40 | 17 | 40 | 6.67 | 46.7 | 6 | 1 | 2.91 | 2.91 | 2.91 | 8.74 | 161.5 | 14.40 | 0.7174 |
63 | 17 | 63 | 10.5 | 73.5 | 6 | 1 | 3.66 | 3.66 | 3.66 | 11.0 | 254.4 | 21.63 | 0.4555 |
100 | 17 | 100 | 16.7 | 117 | 6 | 1 | 4.61 | 4.61 | 4.61 | 13.8 | 403.8 | 34.33 | 0.2869 |
125 | 6 | 125 | 6.94 | 132 | 18 | 1 | 2.97 | 2.97 | 2.97 | 14.9 | 397.9 | 29.17 | 0.2304 |
125 | 16 | 125 | 20.4 | 145 | 26 | 7 | 2.47 | 1.92 | 5.77 | 15.7 | 503.9 | 45.69 | 0.2310 |
160 | 6 | 160 | 8.89 | 169 | 18 | 1 | 3.36 | 3.36 | 3.36 | 16.8 | 509.3 | 36.18 | 0.1800 |
160 | 16 | 160 | 26.1 | 186 | 26 | 7 | 2.80 | 2.18 | 6.53 | 17.7 | 644.9 | 57.69 | 0.1805 |
200 | 6 | 200 | 11.1 | 211 | 18 | 1 | 3.76 | 3.76 | 3.76 | 18.8 | 636.7 | 44.22 | 0.1440 |
200 | 16 | 200 | 32.6 | 233 | 26 | 7 | 3.13 | 2.43 | 7.30 | 19.8 | 806.2 | 70.13 | 0.1444 |
250 | 10 | 250 | 24.6 | 275 | 22 | 7 | 3.80 | 2.11 | 6.34 | 21.6 | 880.6 | 68.72 | 0.1154 |
250 | 16 | 250 | 40.7 | 291 | 26 | 7 | 3.50 | 2.72 | 8.16 | 22.2 | 1007.7 | 87.67 | 0.1155 |
315 | 7 | 315 | 21.8 | 337 | 45 | 7 | 2.99 | 1.99 | 5.97 | 23.9 | 1039.6 | 79.03 | 0.0917 |
315 | 16 | 315 | 51.3 | 366 | 26 | 7 | 3.93 | 3.05 | 9.16 | 24.9 | 1269.7 | 106.83 | 0.0917 |
400 | 7 | 400 | 27.7 | 428 | 45 | 7 | 3.36 | 2.24 | 6.73 | 26.9 | 1320.1 | 98.36 | 0.0722 |
400 | 13 | 400 | 51.9 | 452 | 54 | 7 | 3.07 | 3.07 | 9.21 | 27.6 | 1510.3 | 123.04 | 0.0723 |
450 | 7 | 450 | 31.1 | 481 | 45 | 7 | 3.57 | 2.38 | 7.14 | 28.5 | 1485.2 | 107.47 | 0.0642 |
450 | 13 | 450 | 58.3 | 508 | 54 | 7 | 3.26 | 3.26 | 9.77 | 29.3 | 1699.1 | 138.42 | 0.0643 |
500 | 7 | 500 | 34.6 | 535 | 45 | 7 | 3.76 | 2.51 | 7.52 | 30.1 | 1650.2 | 119.41 | 0.0578 |
500 | 13 | 500 | 64.8 | 565 | 54 | 7 | 3.43 | 3.43 | 10.30 | 30.9 | 1887.9 | 153.80 | 0.0578 |
560 | 7 | 560 | 38.7 | 599 | 45 | 7 | 3.98 | 2.65 | 7.96 | 31.8 | 1848.2 | 133.74 | 0.0516 |
560 | 13 | 560 | 70.9 | 631 | 54 | 19 | 3.63 | 2.18 | 10.90 | 32.7 | 2103.4 | 172.59 | 0.0516 |
630 | 7 | 630 | 43.6 | 674 | 45 | 7 | 4.22 | 2.81 | 8.44 | 33.8 | 2079.2 | 150.45 | 0.0459 |
630 | 13 | 630 | 79.8 | 710 | 54 | 19 | 3.85 | 2.31 | 11.60 | 34.7 | 2366.3 | 191.77 | 0.0459 |
710 | 7 | 710 | 49.1 | 759 | 45 | 7 | 4.48 | 2.99 | 8.96 | 35.9 | 2343.2 | 169.56 | 0.0407 |
710 | 13 | 710 | 89.9 | 800 | 54 | 19 | 4.09 | 2.45 | 12.30 | 36.8 | 2666.8 | 216.12 | 0.0407 |
Package: wooden drums, steel drums or steel-wooden drums.
key numbers of coporate | Our production in numbers |
● Cable production started 1983 |
● 100,000 m2 Production area |
Certification
shenzhen chengtiantai cable operates certified management systems compliant with:
Certificat | Information | |
ISO 9001:2008 quality management systems |
Certificat ISO 9001:2008 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
ISO 14001:2004 environmental management systems |
Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
|
OHSAS 18001:2007 assessment specification for occupational health & safety management systemsenvironmental management systems |
Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 13 January 2019 |
We are China IEC61089 ACSR Bare Overhead Conductors , Overhead Electrical Conductors manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: acsr conducto, Aerial Bundled Cable, bare overhead conductors
