IEC61089 AAC All Aluminum Conductor Cable Bare Insulation For Aerial Distribution Lines

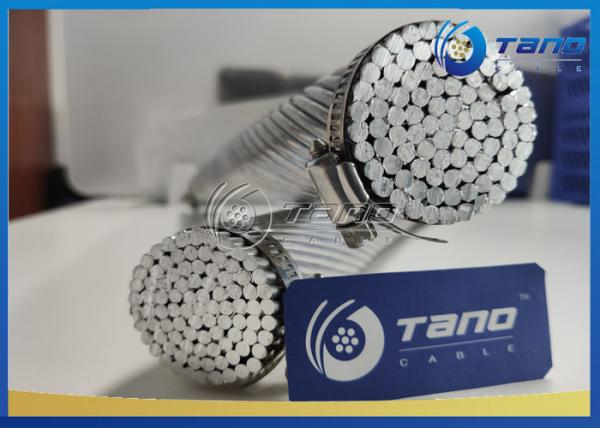

IEC61089 AAC All Aluminum Conductor Cable Bare Insulation For Aerial Distribution Lines image
Brand Name :
TANO CABLE
Model Number :
AAC
Certification :
CCC ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000Kilometers per month
Delivery Time :
7-20 working days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel
Product name :
AAC All Aluminum Conductor cable
Conductor :
Hard Drawn Aluminum
Standard :
IEC 61089
Packing :
Wooden drum
Insulation :
Bare
Application :
Overhead,Construction,Transmission line
Sample :
Free
IEC61089 Best Price AAC All Aluminum Conductor Cable 10-1500
Application of AAC 95mm2
All Aluminium bare conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.
Standard of AAC 95mm2
IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179.
Description of AAC 95mm2

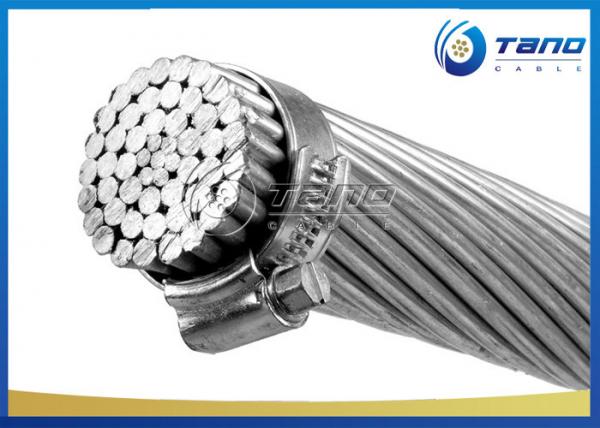

This bare concentric-lay stranded conductor is constructed with a straight round central wire surrounded by one
or more layers of helically wires.
Parameters of AAC 95mm2
IEC 61089
IEC 61089 | ||||||
Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
mm2 | No./mm | mm | kg/km | KN | ohm/km | |
10 | 10.0 | 7/1.35 | 4.05 | 27.4 | 2.0 | 2.8633 |
16 | 16.0 | 7/1.71 | 5.13 | 43.8 | 3.0 | 1.7896 |
25 | 25.0 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 |
40 | 40.0 | 7/2.70 | 8.10 | 109.4 | 6.8 | 0.7158 |
63 | 63.0 | 7/3.39 | 10.17 | 172.3 | 10.4 | 0.4545 |
100 | 100.0 | 19/2.59 | 12.95 | 274.8 | 17.0 | 0.2877 |
125 | 125.0 | 19/2.89 | 14.45 | 343.6 | 21.3 | 0.2302 |
160 | 160.0 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 |
200 | 200.0 | 19/3.66 | 18.30 | 549.7 | 32.0 | 0.1439 |
250 | 250.0 | 19/4.09 | 20.45 | 687.1 | 40.0 | 0.1151 |
315 | 315.0 | 37/3.29 | 23.03 | 867.9 | 52.0 | 0.0916 |
400 | 400.0 | 37/3.71 | 25.97 | 1102.0 | 64.0 | 0.0721 |
450 | 450.0 | 37/3.94 | 27.58 | 1239.8 | 72.0 | 0.0641 |
500 | 500.0 | 37/4.15 | 29.05 | 1377.6 | 80.0 | 0.0577 |
560 | 560.0 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 |
630 | 630.0 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 |
710 | 710.0 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 |
800 | 800.0 | 61/4.09 | 36.81 | 2207.4 | 128.0 | 0.0361 |
900 | 900.0 | 61/4.33 | 38.97 | 2483.3 | 144.0 | 0.0321 |
1000 | 1000.0 | 61/4.57 | 41.13 | 2759.2 | 160.0 | 0.0289 |
1120 | 1120.0 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 |
1250 | 1250.0 | 91/4.18 | 45.98 | 3452.6 | 200.0 | 0.0231 |
1400 | 1400.0 | 91/4.43 | 48.73 | 3866.9 | 224.0 | 0.0207 |
1500 | 1500.0 | 91/4.58 | 50.38 | 4143.1 | 240.0 | 0.0193 |
Construction of AAC 95mm2
Aluminum 1350 wires, concentrically stranded.
FAQ of AAC 95mm2
1. Can you provide Type Test Report?
Surely, we will give 100% support according to your instruction.
2. Can we represent your TANO CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
10. What is price term you can provide?
FOB, CFR, CIF or as your favorite
3. Which payment term do you accept?
A: The payment term varies with different price level and total amount of each contract.
The following are most common terms:
a. 30% T/T down payment, the balance before delivery.
b. 100% L/C at sight.
c. 30% T/T down payment, the balance against 100% L/C at sight.
d. 30% T/T down payment, 40% before delivery, the balance against the copy of B/L.
e. 30% T/T down payment, the balance against the copy of B/L.
f. 100% down payment.
