IEC60502 70mm Copper Cable PVC Armored LV Power Cable

 China IEC60502 70mm Copper Cable PVC Armored LV Power Cable supplier

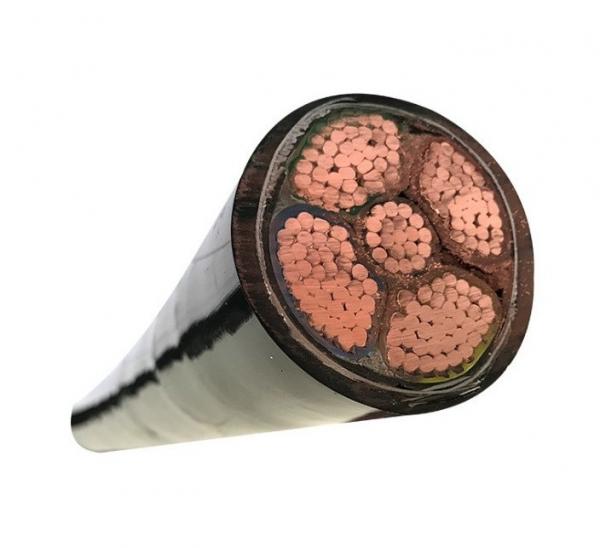

IEC60502 70mm Copper Cable PVC Armored LV Power Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
Armored Low Voltage Power Cable

Conductor :
Copper

Insulation material :
XLPE

Application :
Electricity Supply

Type :
Low Voltage

Jacket :
PVC

Standard :
IEC60502

Color :
Black or Customized

IEC60502 Standard 70 MM Copper Cable PVC Armored Low Voltage Power Cable

Scope of application:

This product is suitable for AC 50HZ rated voltage 0.6/1kV transmission and distribution lines.

Guidelines for use:

Rated voltage Uo/U: 0.6/1kV;
Long-term allowable working temperature: The long-term working temperature of the conductor should not exceed 70℃, and the maximum working temperature during short-circuit should not exceed 250℃ (the longest duration should not exceed 5s);
The cable laying temperature should not be lower than 0℃;
Minimum bending radius (D is the outer diameter of the cable)
Single core cable: 15D;
Multi-core cable: 12D.

Description:

Low-voltage cable lines and low-voltage overhead lines, low-voltage overhead insulated lines compared to the higher cost, laying maintenance is more difficult, but because it has a reliable operation, do not set up poles, does not occupy the ground, not unsightly, less affected by the outside world, and other characteristics, and in the low-voltage distribution system is widely used.

Construction:

VV22/VLV22-0.6/1-kV-single core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inter sheath: Polyvinyl chloride PVC
4. Armour: Steel-tape
5. Sheath: Polyvinyl chloride PVC

VV22/VLV22-0.6/1-kV-multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Wrap around: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

Specificaiton:

Product name Low Voltage Electrical Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

Quality commitment:

1. Strictly implement the quality management system, the products conform to the relevant national standards and customer requirements.

2. The products are packed and transported in strict accordance with customer requirements and regulations to ensure the safety and reliability of the products during loading and unloading and transportation.

3. Product per circle of meters, less 1 meter our company add 10 meters.

4. Product implementation of three packages (quality, quantity, price), free technical advice and related technical information for customers.

5. Strict quality control on the procurement of raw materials, product production process quality control points, semi-finished products, finished products, packaging, etc., to ensure excellent product quality and timely delivery.

Low Voltage Electrical Cable

We are China IEC60502 70mm Copper Cable PVC Armored LV Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
