IEC U40B High Voltage Glass Insulators 11mm Coupling Size Disc Suspension Insulator
IEC U40B High Voltage Glass Insulators 11mm Coupling Size Disc Suspension Insulator image
Brand Name :
XYHY
Model Number :
N/A
Certification :
ISO9001:2008
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, , D/A, D/P, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30days after order confirmed
Packaging Details :
Wooden case and pallet, or according to customer’s requirement
Material :
Toughened glass
Type :
Insulator
Application :
High Voltage
Rated Voltage :
75KV
Tensile Strength :
40kN
Reference standard :
IEC60383
Color :
Green
Feature :
Electrical Performence
120kN High Voltage Toughened Glass Disc Insulator with Cap and Pin
Quick Details
| Place of Origin: | Guangdong, China (Mainland) |
| Type: | Insulator |
| Model number: | U40 B |
| Material: | Toughened glass |
| Application: | High Voltage |
| Tensile Strength: | 40kN |
| Certification: | ISO9001:2008 |
Packaging & Shipping
Packaging Details: Wooden case and pallet, or according to customer's requirement
Delivery Time: 30days after order confirmed
Description
Insulators are commonly used as a flexible coating on electric wire and cable. Since air is an insulator, in principle no other substance is needed to keep power where it should be. High-voltage power lines commonly use just air, since a solid (e.g., plastic) coating is impractical. However, wires which touch each other will produce cross connections, short circuits, and fire hazards. In coaxial cable the center conductor must be supported exactly in the middle of the hollow shield in order to prevent EM wave reflections. Finally, wires which expose voltages higher than 60V can cause human shock and electrocution hazards. Insulating coatings help to prevent all of these problems.
Specifications
The Toughened glass insulators of cap and pin type is used high-voltage, ultrahigh voltage and extra high voltage alternating current and direct current transmission lines and hanging wires. It consists of iron cap, toughened glass and insulator pin. And owing to light weight, high intensity and large creepage distance , it can save metallic materials and reduce line cost.
- IEC Class: U40B/110
- Type: Cap & Ball Pin
- Material of Insulator: Toughened Glass
- Nominal Diameter: 178MM
- Unit Spacing Height: 110MM
- Norminal Creepage Distance: 185MM
- Coupling Size: 11mm
- Min. falling Load: 40KN
- Minimum 50Hz puncture Voltage of Unit: 90KV
- Power Frequency Withstand Voltage, DRY : 50KV
- Power Frequency Withstand Voltage, WET : 25KV
- Approx. Net Weight: 2.1kgs
- Material: Toughened glass
- Certificate: ISO9001:2008.
- The price is negotiation.
We are China IEC U40B High Voltage Glass Insulators 11mm Coupling Size Disc Suspension Insulator manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: High Voltage Glass Insulators, power line insulators, toughened glass insulatorSimilar Or Related
-
7.1kg Weight High Voltage Glass Insulators 1600kN Tensile Strength ISO9001 Certificaion
-

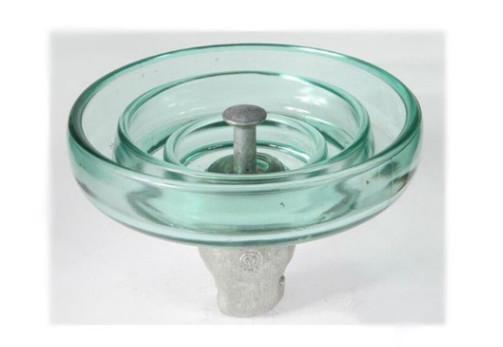

400KV High Tension Power Line Insulators , Glass Power Insulators 280mm Norminal Diameter
-
