IEC Standard 60502-1 XLPE Insulated Power Cable Three Phase LV 600/1000V 150mm2

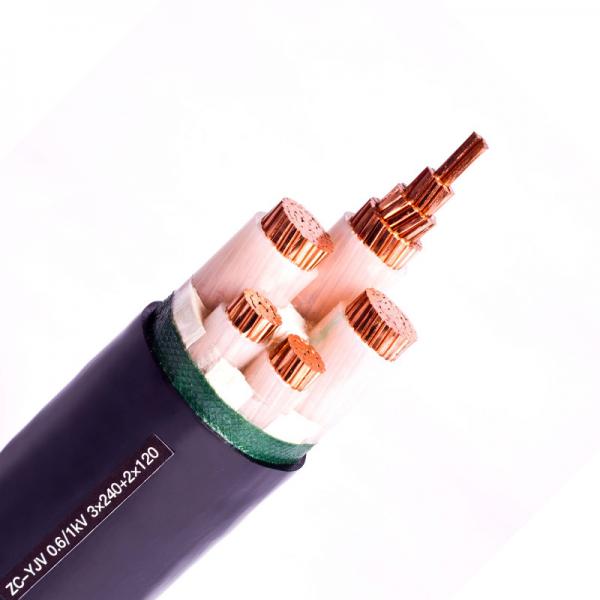

IEC Standard 60502-1 XLPE Insulated Power Cable Three Phase LV 600/1000V 150mm2 image
Brand Name :
JHY CABLE
Model Number :
YJV
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE
Place of Origin :
SHENZHEN CHINA
MOQ :
100M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
7~10 Days
Packaging Details :
As per customer request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
XLPE insulated
Conductor :
Bare Copper
Voltage :
0.6/1KV
Insulation :
XLPE
Sheath :
PVC
IEC Standard 60502-1 Three Phase LV 600/1000V 150mm2 XLPE Insulated Power Cable
Production Description:
1. Stranded copper conductor class 2
2. XLPE insulation
3. PP Filling
4. Non-woven fabrics wrapping
5. PVC outer sheath
APPLICATION
YJV-Copper Conductor XLPE Insulated PVC Sheathed Power&Mains Cable.
Copper Conductor XLPE PVC LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1kV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,VDE,ASTM and etc. upon request.
TYPE & DESIGNATION OF BARE CONDUCTOR
| Rated Voltage; (Uo/U)(Um) | 0.6/1kV |
| Max. working; temperature | 70 °c for pvc; insulation and 90 °c for xlpe insulation |
| Max. temperature; during short circuit (≤5S | 160°c (PVC; insulation), 250°c (XLPE insulation) |
| Conductor | class 1 and 2 copper or aluminum |
| Shape of conductor | circular and sectional |
| Shape of conductor | circular and sectional |
| Sectional area | 1.5 – 500mm2 |
| Insulation | PVC / XLPE |
| No. of cores | 1,2,3,4,5,6 |
| Armour | steel wire or steel tape available |
| Sheath | PVC |
| Filler | Polypropylene lament with lapped binding tape |
| Core-covering: | Binding tape |
| Min. beding radius | 15 times cable radius (single core), 12 times cable radius (multi cores) |
Construction
| 1. Conductor material: | Copper Core | |
| 2. Sheath Material | PVC | |
| 3.Insulation Material | XLPE | |
| 4.Filler | Polypropylene lament with lapped binding tape | |
| 5.Armoured | unarmoured |
PRODUCTION RANGE
| NO. of Cores | Nominal core Cross Sectional area mm² |
| 1x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55 /70 /95 /120 /150 /185 /240 /300 /400~800mm; |
| 2x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55 /70 /95 /120 /150 /185 /240 /300~400mm; |
| 3x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55 /70 /95 /120 /150 /185 /240 /300~630mm; |
| 4x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55 /70 /95 /120 /150 /185 /240 /300~500mm; |
| 3+1x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55/70 /95 /120 /150 /185 /240 /300~630mm; |
| 5x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55/70 /95 /120 /150 /185 /240 /300~500mm; |
| 4+1x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55/70 /95 /120 /150 /185 /240 /300~500mm; |
| 3+2x | 0.75 /1 /1.5 /2.5 /3.5 /4 /5 /6 /10 /16 /25 /35 /50 /53.17 /55 /70 /95 /120 /150 /185 /240 /300~500mm; |
2. Product Image
