Iec 61089 All Aluminum Conductor 10 16 25 63 100 Round Wire Concentric Lay

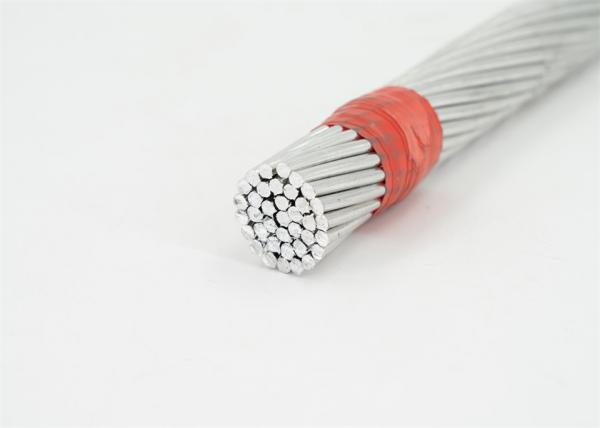

Iec 61089 All Aluminum Conductor 10 16 25 63 100 Round Wire Concentric Lay image
Brand Name :
Sanwu
Model Number :
IEC 61089 AAC
Certification :
CCC,ISO
Place of Origin :
LUOYANG,CHINA
MOQ :
1000m
Price :
Negociable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer’s request.
Conductor :
All aluminum conductor
Application :
Overhead transmission line, electrical transmission line
Standard :
IEC 61089
Insulation :
No, Bare conductor
Type :
concentric lay stranded
Voltage :
LV,HV Conductor
Stranded :
7,19,37,61,91 wires
IEC 61089 10 16 25 63 100 Round wire concentric lay overhead electrical stranded AAC conductors
SINCE 2016
1. APPLICATION
All Aluminum Conductors (AAC) can be used as a bare overhead conductor for distribution lines. Because of its low strength-to-weight ratio, (AAC) has limited use in transmission lines. AAC is extensively used in urban areas where spans are usually short but high conductivity is required.
2. STANDARDS
IEC 61089: Round wire concentric lay overhead electrical stranded conductors.
3. CONDUCTORS
Hard drawn Aluminum wires, concentric lay stranded.
The most commonly used stranding consists of 7, 19, 37, 61 and 91 wires.
Bare concentric-lay-stranded aluminum wires constructed with a straight round central aluminum wire surrounded by one or more layers of helically laid aluminum wires.
| Code number | Nominal cross sectional area | Number of Wires | Diameter Wire | Conductor | Weight | Rated strength | Max. d.c. resistance @20°C |
| mm2 | mm | mm | kg/km | kN | Ohm/km | ||
| 10 | 10 | 7 | 1.35 | 4.05 | 27.40 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.80 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68.40 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109.40 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.20 | 172.30 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.90 | 274.80 | 17.00 | 0.2377 |
| 125 | 125 | 19 | 2.89 | 14.50 | 343.60 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.40 | 439.80 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.30 | 549.70 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.50 | 687.10 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23.03 | 867.9 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26.00 | 1102.0 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.50 | 1239.8 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29.00 | 1377.6 | 80.00 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.70 | 1542.9 | 89.60 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.60 | 1738.3 | 100.80 | 0.0458 |
4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.
(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
5. Available Samples
6. Factory Cable making machines
7. Packing&Delivery
We are China Iec 61089 All Aluminum Conductor 10 16 25 63 100 Round Wire Concentric Lay manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
