IEC 61089 200 ACSR 26/7,18/1 Aluminum Conductor Steel Reinforced Power Transmission Lines

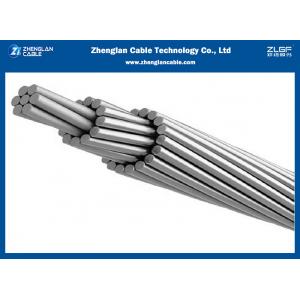

IEC 61089 200 ACSR 26/7,18/1 Aluminum Conductor Steel Reinforced Power Transmission Lines image
IEC 61089 200 ACSR 26/7,18/1 Aluminum Conductors Steel Reinforced CABLE Power Transmission Line
APPLICATION
ACSR conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying
across rivers and valleys where special geographical teatures exist.
STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards
Construction of ACSR Conductor:
According to IEC61089, cross section area of ACSR is from 16mm2 to 1250mm2.
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Basic Information
Model No: ACSR Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
TECHNICAL DATA
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
CONSTRUCTION PARAMETERS
|
Specification NO. |
Steel ratio %. |
Nominal cross section | No. of single wire | Diameter |
DC resistance 20℃ ( Ω/km) |
Rating tension resistance |
|||||||
|
Al mm² |
Steel mm² |
Total mm² |
Al mm |
Steel mm |
Steel core mm |
Stranded wire mm |
JL/G1A | JL/G1B | JL/G2A | JL/G2B | |||
|
16 25 40 63 100 |
17 |
16 25 40 63 100 |
2.67 4.17 6.67 10.5 16.7 |
18.7 29.2 46.7 73.5 117 |
6 | 1 |
1.84 2.30 2.91 3.66 4.61 |
1.84 2.30 2.91 3.66 4.61 |
1.7934 1.1478 0.7174 0.4555 0.2869 |
6.08 9.13 14.40 21.63 34.33 |
5.89 8.83 13.93 20.58 32.67 |
6.45 9.71 15.33 22.37 35.50 |
6.27 9.42 14.84 21.63 34.33 |
|
125 125 160 160 200 |
6 16 6 16 6 |
125 125 160 160 160 |
6.94 20.4 8.89 26.1 11.1 |
132 145 169 186 211 |
18 26 18 26 18 |
1 7 1 7 1 |
2.97
5.77 3.36 6.53 3.76 |
14.9 15.7 16.8 17.7 18.8 |
0.2304 0.2310 0.1800 0.1805 0.1440 |
29.17 45.69 36.18 57.69 44.22 |
28.68 44.27 35.29 55.86 43.11 |
29.65 48.54 37.42 61.34 45.00 |
29.65 47.12 36.80 59.51 44.22 |
|
200 250 250 315 315 |
16 10 16 7 16 |
200 200 250 315 315 |
32.6 24.6 40.7 21.8 51.3 |
233 275 291 337 366 |
26 22 26 45 26 |
7 |
7.30 6.34 8.16 5.97 9.16 |
19.8 21.6 22.2 23.9 24.9 |
0.1444 0.1154 0.1155 0.0917 0.0722 |
70.13 68.72 87.67 79.03 106.83 |
67.85 67.01 84.82 77.51 101.70 |
74.69 72.16 93.37 82.08 114.02 |
72.41 70.44 90.52 80.55 110.43 |
|
400 400 450 450 500 |
7 13 7 13 7 |
400 400 450 450 500 |
27.7 51.9 31.1 58.3 34.6 |
428 452 481 508 535 |
45 54 45 54 45 |
7 |
6.73 9.21 7.14 9.77 7.52 |
26.9 27.6 28.5 29.3 30.1 |
0.0723 0.0642 0.0643 0.0578 0.0578 |
1320.1 1510.3 1485.2 1699.1 1650.2 |
98.36 117.85 105.29 132.58 116.99 |
102.23 130.30 111.82 146.58 124.25 |
100.29 126.67 109.64 142.50 121.83 |
|
500 560 560 630 630 |
13 7 13 7 13 |
500 560 560 630 630 |
64.8 38.7 70.9 43.6 79.8 |
565 599 631 674 710 |
54 45 54 45 54 |
7 7 19 7 19 |
10.3 7.96 10.9 8.44 11.6 |
30.9 31.8 32.7 33.8 34.7 |
0.0516 0.0516 0.0643 0.0578 0.0578 |
1887.9 1848.2 2103.4 2079.2 2366.3 |
147.31 131.03 167.63 147.40 186.19 |
162.87 139.16 182.52 156.55 202.94 |
158.33 136.45 177.56 153.50 197.36 |
|
710 710 800 800 800 |
7 13 4 8 13 |
710 710 800 800 800 |
49.1 89.9 34.6 66.7 101 |
759 800 835 867 901 |
45 54 72 84 54 |
7 19 7 7 19 |
8.96 12.3 7.52 10.4 13.0 |
35.9 36.8 37.6 38.3 39.1 |
0.0516 0.0516 0.0459 0.0459 0.0407 |
2343.2 2666.8 2480.2 2732.7 3004.2 |
166.12 209.83 164.99 198.67 236.43 |
176.43 228.71 172.25 214.67 257.71 |
172.99 222.42 169.83 210.00 250.61 |
|
900 900 1000 1120 1120 |
4 8 4 4 8 |
900 900 1000 1120 1120 |
38.9 75.0 43.2 47.3 91.2 |
939 975 1043 1167 1211 |
72 84 72 72 84 |
7 7 7 19 19 |
7.98 11.1 8.41 8.90 12.4 |
39.9 40.6 42.1 44.5 45.3 |
0.0407 0.0361 0.0361 0.0362 0.0362 |
2790.2 3074.2 3100.3 3464.9 3811.5 |
185361 219.00 206.23 231.22 276.78 |
193.78 231.75 215.31 241.15 295.94 |
191.06 226.50 212.28 237.84 289.55 |
|
1250 1250 |
4 8 |
1250 1250 |
52.8 102 |
1303 1352 |
72 84 |
19 19 |
9.40 13.1 |
47.0 47.9 |
0.0231 0.0232 |
3867.1 4253.9 |
258.06 308.91 |
269.14 330.16 |
265.44 323.16 |
