IEC 60502 4 Core XLPE Insulated Power Cable 95 Mm² Unarmored Underground

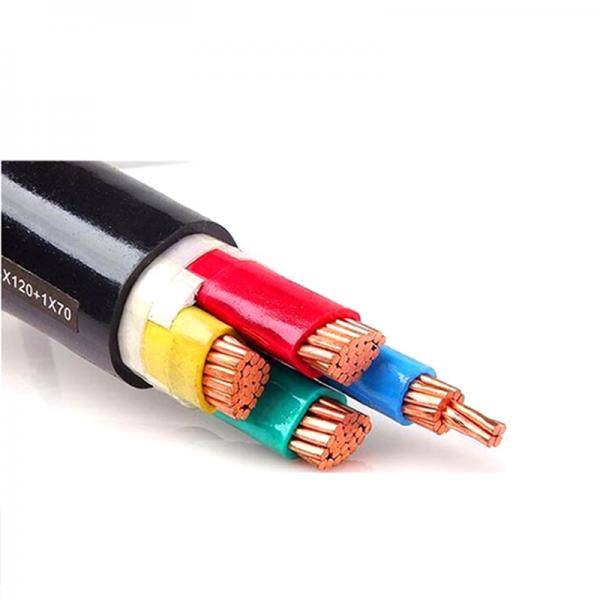

IEC 60502 4 Core XLPE Insulated Power Cable 95 Mm² Unarmored Underground image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
YJV

Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE

Place of Origin :
SHENZHEN CHINA

MOQ :
100M

Price :
Negotiable

Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability :
10000M/Day

Delivery Time :
7~10 Days

Packaging Details :
As per customer request

Application :
Construction,Industrial,Underground,Power Station,BUILDING

Type :
XLPE insulated

Conductor :
Bare Copper

Voltage :
0.6/1KV

Insulation :
XLPE

Sheath :
PVC

IEC 60502 4 Core 95 Mm² Unarmored Underground XLPE Insulation Cable

Production Description:

XLPE power cable is used in power transmission and distribution system of 0.6/1kV or lower.

It is generally applied to power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.

TYPE & DESIGNATION OF BARE CONDUCTOR

Rated Voltage; (Uo/U)(Um)	0.6/1kV
Max. working; temperature	70 °c for pvc; insulation and 90 °c for xlpe insulation
Max. temperature; during short circuit (≤5S	160°c (PVC; insulation), 250°c (XLPE insulation)
Conductor	class 1 and 2 copper or aluminum
Shape of conductor	circular and sectional
Shape of conductor	circular and sectional
Sectional area	1.5 – 500mm2
Insulation	PVC / XLPE
No. of cores	1,2,3,4,5,6
Armour	steel wire or steel tape available
Sheath	PVC
Filler	Polypropylene lament with lapped binding tape
Core-covering:	Binding tape
Min. beding radius	15 times cable radius (single core), 12 times cable radius (multi cores)

Technical Data

Rated voltage: 0.6/1kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

7. Tabular data
Construction

	1. Conductor material:	Copper Core
	2. Sheath Material	PVC
	3.Insulation Material	XLPE
	4.Filler	Polypropylene lament with lapped binding tape
	5.Armoured	unarmoured

8. Product Image

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome.
Above we provide a wide range of products’ information, any further information you need please contact us as below:
Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

We are China IEC 60502 4 Core XLPE Insulated Power Cable 95 Mm² Unarmored Underground manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
