IEC 60502 1 XLPE Copper Cable Single Core XLPE Insulated Wire Medium Voltage

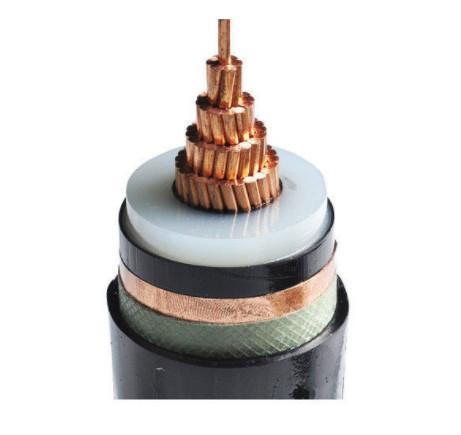

IEC 60502 1 XLPE Copper Cable Single Core XLPE Insulated Wire Medium Voltage image
Brand Name :
Huanghe
Model Number :
YJV YJV22 YJV32
Certification :
ISO CCC OHSAS
Place of Origin :
China
MOQ :
200
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000meter per week
Delivery Time :
5-8days
Packaging Details :
Wooden drum
Type :
Medium Voltage,Power Cable
Standard :
IEC
Color :
black
Rated voltage :
0.6/1KV,1000V/1500V DC
Sheath :
LSOH,ZR-PVC
Core :
5 cores,Single or multi,Multi-core
IEC 60502 1 XLPE Copper Cable Single Core XLPE Insulated Wire Medium Voltage
STANDER
International:IEC60502-2
National:GB/T 12706.1-2008
CONSTRUCTION:
1. CONDUCTOR
– Bare copper class 2 to IEC 60228, round, multiwire stranded and compact
2. CONDUCTOR SCREEN
– Inner semi-conducting coating
3. INSULATION
– Core insulation of cross-linked polyethylene (XLPE)
4. INSULATION SCREEN
– Outer conductive layer extruded and per-manently welded with the core insulation
Semi-conducting type
– Over the outer semi-conducting layer, a semiconducting tape must be used.
5. METAL SCREEN
– copper tapes helically with a minimum thickness of 0,1 mm.
Separator
– Over the screen as well as under outer sheath, a separating layer must be used (e. g. taping).
6. SHEATH
– Outer sheath of PVC compound
Single Core IEC 60502-1 XLPE Copper cable XLPE Insulated Electrical Cables
Physical and Electrical Characteristics of IEC60502-1 XLPE Cable:
| No.cores x cross-sec. |
Insulation thickness |
Sheath thickness Nominal value |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 1×1.5 | 0.7 | 1.4 | 5.8 | 45 | 32 | 43 | 12.1 |
| 1×2.5 | 0.7 | 1.4 | 6.2 | 57 | 42 | 57 | 7.41 |
| 1×4.0 | 0.7 | 1.4 | 6.7 | 75 | 56 | 74 | 4.61 |
| 1×6.0 | 0.7 | 1.4 | 7.2 | 97 | 70 | 93 | 3.08 |
| 1×10 | 0.7 | 1.4 | 8.2 | 142 | 97 | 127 | 1.83 |
| 1×16 | 0.7 | 1.4 | 9.2 | 205 | 125 | 167 | 1.15 |
| 1×25 | 0.9 | 1.4 | 10.8 | 304 | 165 | 216 | 0.73 |
| 1×35 | 0.9 | 1.4 | 11.8 | 403 | 200 | 261 | 0.52 |
| 1×50 | 1.0 | 1.4 | 13.3 | 555 | 245 | 311 | 0.39 |
| 1×70 | 1.1 | 1.4 | 15.3 | 756 | 305 | 388 | 0.27 |
| 1×95 | 1.1 | 1.5 | 17.1 | 1005 | 375 | 461 | 0.19 |
| 1×120 | 1.2 | 1.5 | 18.7 | 1250 | 435 | 527 | 0.15 |
| 1×150 | 1.4 | 1.6 | 20.9 | 1561 | 500 | 592 | 0.12 |
| 1×185 | 1.6 | 1.6 | 22.9 | 1910 | 580 | 671 | 0.10 |
| 1×240 | 1.7 | 1.7 | 25.5 | 2453 | 685 | 781 | 0.08 |
| 1×300 | 1.8 | 1.8 | 28.2 | 3044 | 795 | 886 | 0.06 |
| 1×400 | 2.0 | 1.9 | 32.0 | 4024 | 930 | 1019 | 0.05 |
| 1×500 | 2.2 | 2.0 | 35.4 | 5006 | 1080 | 1170 | 0.04 |
Single Core IEC 60502-1 XLPE Copper cable XLPE Insulated Electrical Cables
We are China IEC 60502 1 XLPE Copper Cable Single Core XLPE Insulated Wire Medium Voltage manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
