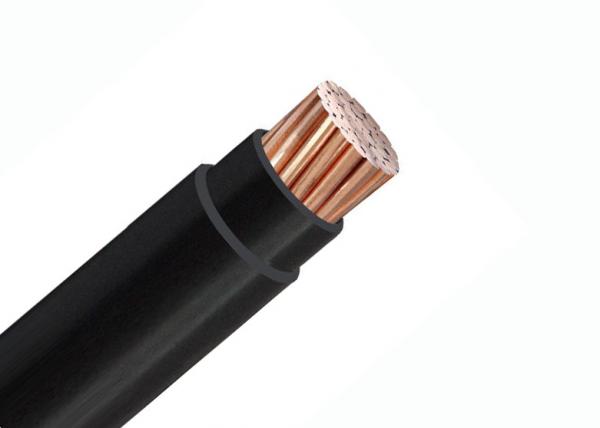

IEC 60502-1 PVC Cable Low Voltage Power Cable 0.6/1 KV | Single Core PVC Insulation ,PVC Sheathed

IEC 60502-1 PVC Cable Low Voltage Power Cable 0.6/1 KV | Single Core PVC Insulation ,PVC Sheathed image

Get a Quote Email to us

Brand Name :
Chengtiantai Cable

Model Number :
VV-1 C

Certification :
CE, CB

Place of Origin :
Shenzhen, Mainland China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
L/C, T/T

Delivery Time :
15 working days after payments

Packaging Details :
Steel Wooden Drum

Nominal Voltage :
0.6/1 kV

Core Insulation :
PVC Compound

No. of Conductor :
single core

Outer Sheath :
PVC Compound

Conductor Material :
Bare Copper to IEC60228 Cl.2

Manufacturer :
Shenzhen Chengtiantai

Single core, Class 2 Conductor, Copper Conductor, XLPE Insulated, PVC Sheathed

APPLICATIONS:

Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.

STANDARDS

International: IEC 60502-1
National:GB/ T 12706.1-2008

CONSTRUCTION:

1. CONDUCTOR
– Bare copper conductor, Class 2 to IEC 60228

2. INSULATION
– PVC Compound

3. OUTER SHEATH :
– PVC Compound

Sheath colour :
– Black

*Note: when required for a particular application, other colors are available.

Electrical Characteristics

Rated Voltage Uo/U	0.6/1 kV
Maximum operating voltage	1.2 kV
Frequence	50 Hz
Test voltage :	3500 V

Usage Characteristics

Permissible operating temperature at conductor	+70°C
short circuit temperature ( duration max. 5 s)	160 °C
Minimum installation temperature	should not be lower than 0°C
Max. conductor permissible tensile stress	50 N/mm²
Minimum bending radius	15 x cable Ø

Physical and Electrical Characteristics:

No.cores x cross-sec.	Insulation thickness	Nominal Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃	maximum DC resistance at 20℃
mm²	mm	mm	mm	kg / km	A	A	Ω/km
1×1.5	0.8	1.4	6.1	61	24	29	12.1
1×2.5	0.8	1.4	6.5	74	31	38	7.41
1×4.0	1.0	1.4	7.4	100	41	49	4.61
1×6.0	1.0	1.4	7.9	124	52	61	3.08
1×10	1.0	1.4	9.2	183	72	83	1.83
1×16	1.0	1.4	10.3	251	95	105	1.15
1×25	1.2	1.4	12.0	367	120	135	0.73
1×35	1.2	1.4	13.1	475	150	160	0.52
1×50	1.4	1.4	14.9	618	180	195	0.39
1×70	1.4	1.4	16.9	840	230	240	0.27
1×95	1.6	1.5	19.3	1134	280	285	0.19
1×120	1.6	1.5	21.1	1384	325	325	0.15
1×150	1.8	1.6	23.1	1683	375	365	0.12
1×185	2.0	1.7	25.6	2084	430	415	0.10
1×240	2.2	1.8	28.9	2696	510	480	0.08
1×300	2.4	1.9	31.7	3355	585	545	0.06
1×400	2.6	2.0	33.0	4246	690	625	0.05
1×500	2.8	2.1	37.2	5092	800	710	0.04
1×630	2.8	2.2	40.5	6362	920	810	0.03

*Dimensions and specifications may be changed without prior notice.

Conductor Design

Packaging & Delivery

Packaging details :		Delivery :

Steel Wooden Drums	Cable Drum In container	shipped in 15 days after payment

Cable Drum Data

CABLE DRUMS	D1=Flange Diameter(mm)	W=Useful Width (mm)	D2=Barrel Diameter(mm)
	1000	700	500
	1100	700	550
	1200	700	600
	1400	750	710
	1600	900	900
	1800	1120	1000
	2400	1150	1300

Delivery Port:


Port of Shenzhen	Port of Hongkong	Port of Guangzhou

Manufacturing Process Of Low Voltage Power Cable ( Unarmored )


1. copper rod	2. wire drawing	3. wire stranding

4.Inner sheath	5. Assembling	6.outer covering Process

7. Sheath Marking	8. Packing	9. cable delivering

Our production in numbers

● Cable production started 1983
● 35 years of cable manufacturing experience

● Sales in 2016 about 500 million USD

● 100,000 m² Production area
● 350 Will-trained employees
● Exported more than 22 countries
● 2 Manufacturing plant
● 1 R&D Center

● 200 Sets Of Testing Equipment

● 100 Testing Items
● 8 workshop
● 40 wire drawing machines
● 10 bunching machines
● 28 Extruder system
● 42 stranding machines
● 10 Braiding machines

Some great shots of our manufactering plant


Mannufacturing plant	R&D Building	Bird's eye view of the plant

MV Power Cable Workshop	Cable Reels Waiting to be shipped out	Shipping

Shenzhen chengtiantai cable operates certified management systems compliant with:

	Certificat	Information
	ISO 9001:2008 quality management systems	Certificat ISO 9001:2008 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 9th January 2022
	ISO 14001:2004 environmental management systems	Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 9th January 2022
	OHSAS 18001:2007 assessment specification for occupational health & safety management systemsenvironmental management systems	Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 9th January 2022

Customer services:

RECOMMENDED ORDERING PARAMETERS

CONTACT

For prompt quotation / supplies please make sure your inquiries and your orders are
securing the following data :

1 – International or Special Standard. (Alternatively, the precise usage of the cable.)
2 – Rated voltage.
3 – Copper or Aluminium conductors.
4 – Size of each conductor.
5 – Insulation material : XLPE or others.
6 – Number and identification of conductors.
7 – Other requirements.
8 – Packing.
9 – Required delivery time.
10 – Required validity.

If this all seems a litle too technical for you, then why not get in touch with us.

We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Tel:+86 755 6114 5028
Fax:+86 755 61137976
E-mail : [email protected]
Head office:chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106

WARRANTY

For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
