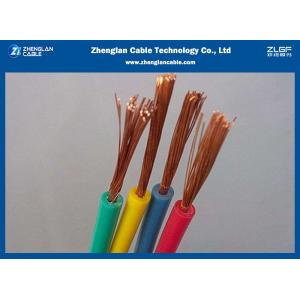

IEC 60227 Standard (Cu/Pvc) Single Core None Sheathed Flexible Wire 1cx1.5sqmm

 China IEC 60227 Standard (Cu/Pvc) Single Core None Sheathed Flexible Wire 1cx1.5sqmm supplier

IEC 60227 Standard (Cu/Pvc) Single Core None Sheathed Flexible Wire 1cx1.5sqmm image

Get a Quote Email to us

Brand Name :Zhenglan cable
Model Number :RV/Single wire
Certification :3C,ISO 9001:2015,ISO 14001:2005; CE
Place of Origin :Henan, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T,
Supply Ability :5 Million one month
Delivery Time :5-10 days
Packaging Details :Rolls or Customerised
Conductor :99.99% oxygen free copper
Sheath :PVC insulated
Application :Use for Home or Building
Colour :Black, red, bule,yellow or Customerised
Core :1
Running voltage :450/750V

IEC 60227 standard (cu/pvc) single core none sheathed flexible wire 1cx1.5sqmm

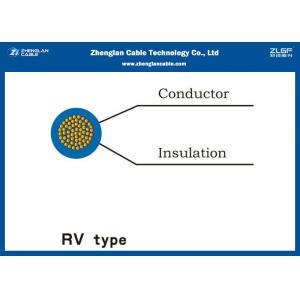

Single Wire Construction:
Conductor:
Stranded copper, class 5
Insulation: PVC
BV Cable Electrical characteristics:
Rated voltage Uo/U (Um) : 300/500V;
Test voltage: 2000V(300/500V);

BV Cable Standards:

300/500V—60227

Physical features:
Bending radius: 15 x Ø
Service temperature:+70℃,+90℃,105℃ available
Insulation resistance: 10 MΩ x km
BV Cable Application: These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings
Packing: 100m per roll (per coil or plastic reel, as your request)

Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable) is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.


RV Cable Data Sheet

300/500V

Nominal section area(mm²) No ./Dia
of
Strand
(mm)
Nom.
Thickness
of insulation
(mm)
Average
OD Max.
(mm)
Max. DC conductor
resistance at 20℃
(Ω/km)
Min. Insulating
resistance
at 70℃
(MΩ·km)
1*0.5 16/0.2 0.6 2.6 9.1 0.013
1*0.75 24/0.2 0.6 2.8 12.2 0.011
1*1.0 32/0.2 0.6 3.0 15.1 0.010

RV-90℃

Nominal section area(mm²) Core no./dia(mm)

Max diameter

(mm)

Insulation thickness

(mm)

Reference weight

(kg/km)

90℃Minimum insulation electric resistance(mΩ/km)
1*0.5 16/0.2 2.5 0.6 10.2 0.013
1*0.75 24/0.2 2.7 0.6 13.5 0.012
1*1.0 32/0.2 2.8 0.6 16.4 0.010
1*1.5 30/0.25 3.4 0.7 21.4 0.009
1*2.5 49/0.25 4.1 0.8 34.5 0.009

450/750V

Nominal section area(mm²) No ./Dia.of
Strand
mm
Nom.
Thickness
of insulation
mm
Average
OD (Max.)
mm
Max. DC conductor
resistance at 20℃
Ω/km
1*1.5 30/0.25 0.7 3.5 13.3
1*2.5 50/0.25 0.8 4.2 7.98
1*4 77/0.26 0.8 4.8 4.95
1*6 78/0.31 0.8 6.3 3.30
1*10 84/0.39 1.0 7.6 1.91
1*16 133/0.39 1.0 8.8 1.21
1*25 189/0.41 1.2 11.0 0.78
1*35 259/0.41 1.2 12.5 0.554
1*50 361/0.41 1.4 14.5 0.386
1*70 337/0.51 1.4 17.0 0.272
1*95 494/0.49 1.6 17.5 0.206

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China IEC 60227 Standard (Cu/Pvc) Single Core None Sheathed Flexible Wire 1cx1.5sqmm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
