ICEA S-75-381 Stranded Bare Copper Type G-GC Mining Cable 3 Conductor 6 AWG 2KV

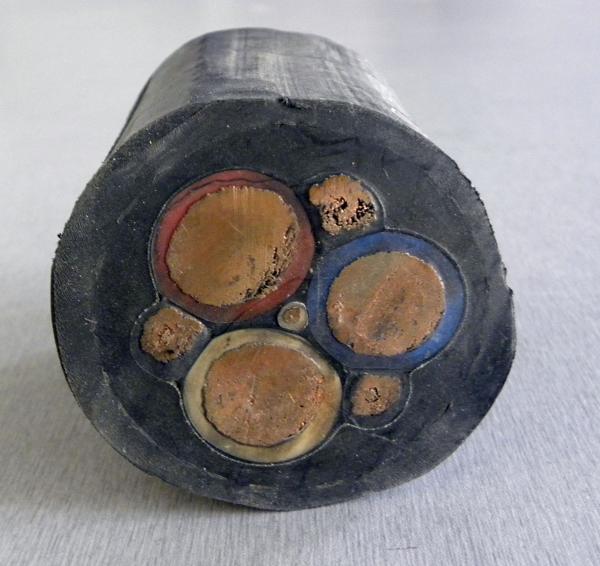

ICEA S-75-381 Stranded Bare Copper Type G-GC Mining Cable 3 Conductor 6 AWG 2KV image
Brand Name :
CN Cable Group
Model Number :
Type G-GC Mining Cable
Certification :
ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1000m
Price :
$1 – $60/ Meter
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
1-4 weeks
Packaging Details :
Roll/Wooden Reel/Iron-wooden Reel/Steel Reel
Conductor Type :
Stranded
Application :
Industrial
Conductor Material :
Copper
Sheath Material :
CPE
Insulation Material :
Rubber
Model :
Type G-GC Cable
ICEA S-75-381 Type G-GC Mining Cable 3 Conductor 6 AWG 2KV
Product Description
Application
Trailing cable on ac mining equipment where a ground conductor is required. For use where induced voltages in grounding system will not produce a hazard.
Standards:
ICEA S-75-381/NEMA WC 58
Cable Construction:
Conductor: Soft or annealed tinned coated copper conductor
Separator: A separator may be applied over the conductor.
Insulation: Ethylene propylene rubber (EPR) meeting ICEA S-75-381.
Phase ID: Color coded insulation, Black, White and Red.
Jacket: Black heavy duty chlorinated polyethylene (CPE) compound, applied in one layer over a fibrous reinforcement layer.
Technical Characteristics:
Maximum operating voltage: 2 kV
Maximum conductor operation temperature: 90 °C wet or dry locations under normal operating conditions.
Data Sheet
| Conductor Size | Number of Strands | Size of Each Strand | Nominal Insulation Thickness | Ground Conductor Size | Maximum Overall Diameter | Approximate Total Weight |
| AWG or kcmil | – | AWG | mil | AWG | in | lb/kft |
| 8 | 133 | 29 | 60 | 10 | 1 | 652 |
| 6 | 133 | 27 | 60 | 10 | 1.08 | 800 |
| 4 | 259 | 28 | 60 | 8 | 1.22 | 1082 |
| 2 | 259 | 26 | 60 | 7 | 1.37 | 1458 |
| 1 | 259 | 25 | 80 | 6 | 1.54 | 1848 |
| 1/0 | 259 | 24 | 80 | 5 | 1.69 | 2251 |
| 2/0 | 329 | 24 | 80 | 4 | 1.79 | 2681 |
| 3/0 | 413 | 24 | 80 | 3 | 1.94 | 3232 |
| 4/0* | 532 | 24 | 80 | 2 | 2.09 | 3642 |
| 250* | 608 | 24 | 95 | 2 | 2.45 | 4556 |
| 300* | 741 | 24 | 95 | 1 | 2.62 | 5389 |
| 350* | 855 | 24 | 95 | 1/0 | 2.74 | 6095 |
| 500* | 1221 | 24 | 95 | 2/0 | 3.09 | 7916 |
Packing&Shipping
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
We are China ICEA S-75-381 Stranded Bare Copper Type G-GC Mining Cable 3 Conductor 6 AWG 2KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
