ICEA S-61-402 25kv Aerial Bundled Cable Primary And Secondary Overhead Distribution

 China ICEA S-61-402 25kv Aerial Bundled Cable Primary And Secondary Overhead Distribution supplier

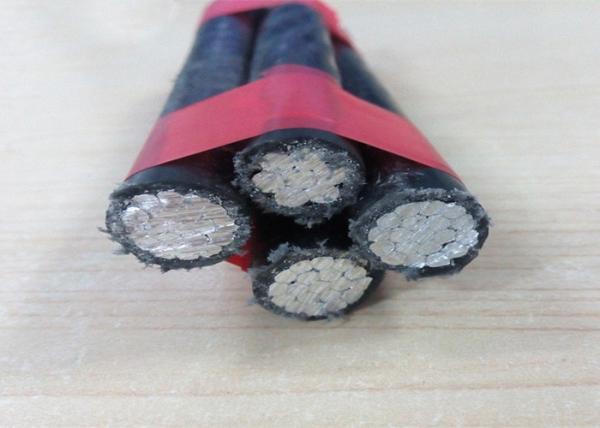

ICEA S-61-402 25kv Aerial Bundled Cable Primary And Secondary Overhead Distribution image

Get a Quote Email to us

Model Number :Tree wire
Place of Origin :Henan, China (Mainland)
MOQ :1000 Meter/M
Payment Terms :Western Union, L/C, T/T, MoneyGram
Supply Ability :200KM per month
Delivery Time :1-4 weeks
Packaging Details :Wooden Reel, Iron-wooden Reel, Steel Reel
Name :Aerial Bundled Cable
Conductor Material :AAC/ACSR/AAAC
Insulation Material :XLPE
Jacket :XLPE/PE/PVC
Rated voltage :15KV ,25KV,35KV
Certificate :ISO9001/ISO14001
Application :Primary And Secondary Overhead Distribution
Color :Black

ICEA S-61-402 25kv Aerial Bundled Cable Primary And Secondary Overhead Distribution



Aerial Bundled Cable Application:



It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.



Aerial Bundled Cable Standard:



ASTM B230,ASTM B231,ASTM B232 ASTM B398,ASTM B399,ASTM B400



Aerial Bundled Cable construction:



AAC/AAAC/ACSR Conductor , XLPE/ Insulation , HDPE Outer Jacket

Packing Material:Wooden Reel, Iron-wooden Reel, Steel Reel





Tree Wire-25KV-3Layer-ACSR Core

Size Stranding No. Conductor dia. Conductor Shield Thickness Insulation thickness Outer sheath thickness Approx. Cable. Dia. Approx. Cable Weight Rated strength
AWG/kcmil No.s mm mils mm mm mm kg/km KN
1/0 6/1 10.11 0.4 3.2 3.2 23.6 573 18.5
2/0 6/1 11.35 0.4 3.2 3.2 24.8 659 22.4
3/0 6/1 12.75 0.4 3.2 3.2 26.2 763 28
4/0 6/1 14.30 0.4 3.2 3.2 27.8 893 35.3
266.8 18/1 15.47 0.4 3.2 3.2 28.9 905 29.1
266.8 26/7 16.31 0.4 3.2 3.2 29.8 1030 47.7
336.4 18/1 17.37 0.4 3.2 3.2 30.8 1063 36.7
336.4 26/7 18.29 0.4 3.2 3.2 31.8 1217 59.5
336.4 30/7 18.82 0.4 3.2 3.2 32.3 1616 73.1
397.5 18/1 18.87 0.4 3.2 3.2 32.3 1197 42
397.5 24/7 19.61 0.4 3.2 3.2 33.1 1284 61.7
397.5 26/7 19.89 0.4 3.2 3.2 33.4 1378 68.8
477 24/7 21.49 0.5 3.2 3.2 35.2 1487 72.6
477 26/7 21.79 0.5 3.2 3.2 35.5 1601 82.3
477 30/7 22.43 0.5 3.2 3.2 36.1 2170 100.5
556.5 18/1 22.33 0.5 3.2 3.2 36.0 1555 57.9
556.5 24/7 23.22 0.5 3.2 3.2 36.9 1673 83.6
556.5 26/7 23.55 0.5 3.2 3.2 37.3 1805 95.4







Tree Wire-25KV-3Layer-AAAC Core



Size Stranding No. Conductor dia. Conductor Shield Thickness Insulation thickness Outer sheath thickness Approx. Cable. Dia. Approx. Cable Weight Rated strength
AWG/kcmil No.s mm mils mm mm mm kg/km KN
4 7 6.35 0.4 3.2 3.2 19.8 335 7
2 7 8.03 0.4 3.2 3.2 21.5 409 11.2
1/0 7 10.11 0.4 3.2 3.2 23.6 518 17.8
2/0 7 11.35 0.4 3.2 3.2 24.8 589 21.6
3/0 7 12.75 0.4 3.2 3.2 26.2 676 27.2
4/0 7 14.30 0.4 3.2 3.2 27.8 781 34.2
266.8 19 16.31 0.4 3.2 3.2 29.8 909 44
336.4 19 18.29 0.4 3.2 3.2 31.8 1066 53.2
397.5 19 19.89 0.4 3.2 3.2 33.4 1198 62.4
477 19 21.79 0.5 3.2 3.2 35.5 1387 75.2
556.5 19 23.55 0.5 3.2 3.2 37.3 1554 87.6
636 37 25.15 0.5 3.2 3.2 38.9 1708 97.6
795 37 28.14 0.5 3.2 3.2 41.9 2067 122





Packaging & Shipping

Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port







Company Information

CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.



The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.



There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.



Our Services





Buyer Feedback







FAQ



Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.



Q3: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q4: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Looking forward to cooperating with you.


We are China ICEA S-61-402 25kv Aerial Bundled Cable Primary And Secondary Overhead Distribution manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
