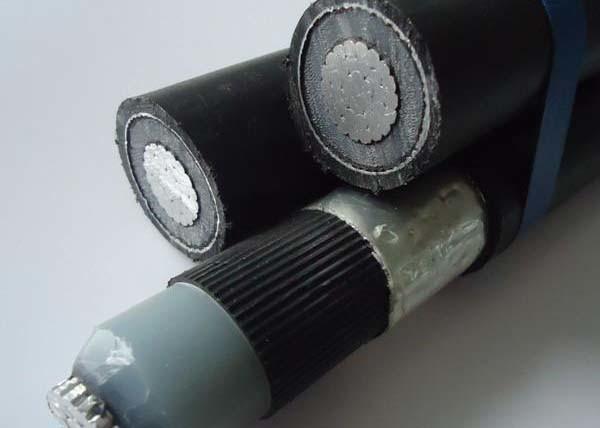

HTA CIS Armoured Power Cable / XLPE Medium Voltage Cables 12/20KV 150 240 Sqmm

HTA CIS Armoured Power Cable / XLPE Medium Voltage Cables 12/20KV 150 240 Sqmm image

Get a Quote Email to us

Brand Name :
Yifang

Model Number :
Hta Cis Cable

Certification :
KEMA ISO 9001 CCC

Place of Origin :
China

MOQ :
500 Meters

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
500 KMs per month

Delivery Time :
25~30 working days or based on your qty

Packaging Details :
Wooden drum or Iron&wooden drum with wood lagging

Standard :
NFC 33226

Color :
Black

Characteristic :
Water-resistant

Metallic Screen :
Longitude Aluminum Plastic Tape

Insulation Screen :
Strippable Semi-Conducting Compound ,Longitude Wit

Conductor :
Compacted Round Aluminum

Rated Voltage :
6/10KV 12/20KV 18/30KV

Size :
16~800mm2

XLPE Insulated Hta Cis Cable Medium Voltage Power Cable 12/20KV 150 240 Sqmm for Cote d'Ivoire Market

1. Application:
Cable HTA CIS is used for public power distribution network 1~35KV.

2. Reference standard : NFC 33-226 IEC60502 and special requirements of clients

3. Cable structure :
3.1 Conductor material: Aluminium
3.2 Conductor Screen: Semi-conducting compound
3.3 Insulation: XLPE
3.4 Insulation screen: Strippable semi-conducting compound ,longitude with grooves and sealing power over it
3.5 Metallic screen layer: Longitude aluminum plastic tape
3.6 Outer sheath: PE

4. Packaging: Wooden drum / Iron-wooden drum

5. Export areas: African Countries

6. Certificate available : ISO ,CE , SGS, KEMA

7. Construction:

Rated Voltage		6/10kV		Type													1
Cross-Section	mm
	Conductor			Conductor Screen		XLPE Insulation								Metallic Screen			Jacket
	No	Dia	Od	Thick ness	Od	Thick ness	Min Thick ness		Od	Thick ness	Od		Od	Aluminum Plastic Tape			Thickness	Od
		mm	mm	mm	mm	mm	mm		mm	mm	mm		mm	Width	Thick ness	Od	mm	mm
mm2														mm	mm
25	7	2.18	6.0	0.6	7.2	3.4	2.96	3.54	14.0	0.7	15.4	0.35	16.1	57	0.20	16.7	1.8	20.3
35	7	2.57	7.0	0.6	8.2	3.4	2.96	3.54	15.0	0.7	16.4	0.35	17.1	60	0.20	17.7	1.8	21.3
50	7	2.99	8.2	0.6	9.4	3.4	2.96	3.54	16.2	0.7	17.6	0.35	18.3	64	0.20	18.9	1.8	22.5
70	14	2.57	9.9	0.6	11.1	3.4	2.96	3.54	17.9	0.7	19.3	0.35	20.0	69	0.20	20.6	1.8	24.2
95	19	2.57	11.6	0.6	12.8	3.4	2.96	3.54	19.6	0.7	21.0	0.35	21.7	77	0.20	22.3	1.8	25.9
120	19	2.90	13.0	0.6	14.2	3.4	2.96	3.54	21.0	0.7	22.4	0.35	23.1	81	0.20	23.7	1.8	27.3
150	30	2.57	14.4	0.6	15.6	3.4	2.96	3.54	22.4	0.7	23.8	0.35	24.5	86	0.20	25.1	1.8	28.7
185	37	2.57	16.2	0.6	17.4	3.4	2.96	3.54	24.2	0.7	25.6	0.35	26.3	91	0.20	26.9	1.9	30.7
240	37	2.94	18.6	0.6	19.8	3.4	2.96	3.54	26.6	0.7	28.0	0.35	28.7	99	0.20	29.3	2.0	33.3
300	37	3.29	20.8	0.6	22.0	3.4	2.96	3.54	28.8	0.7	30.2	0.35	30.9	108	0.20	31.5	2.0	35.5
400	60	2.91	23.6	0.6	24.8	3.4	2.96	3.54	31.6	0.7	33.0	0.35	33.7	116	0.20	34.3	2.2	38.7
500	60	3.31	26.6	0.6	27.8	3.4	2.96	3.54	34.6	0.7	36.0	0.35	36.7	126	0.20	37.3	2.2	41.7
630	60	3.77	30.2	0.6	31.4	3.4	2.96	3.54	38.2	0.7	39.6	0.35	40.3	137	0.20	40.9	2.4	45.7
800	60	4.27	34.2	0.6	35.4	3.4	2.96	3.54	42.2	0.7	43.6	0.35	44.3	150	0.20	44.9	2.5	49.9

We are China HTA CIS Armoured Power Cable / XLPE Medium Voltage Cables 12/20KV 150 240 Sqmm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
