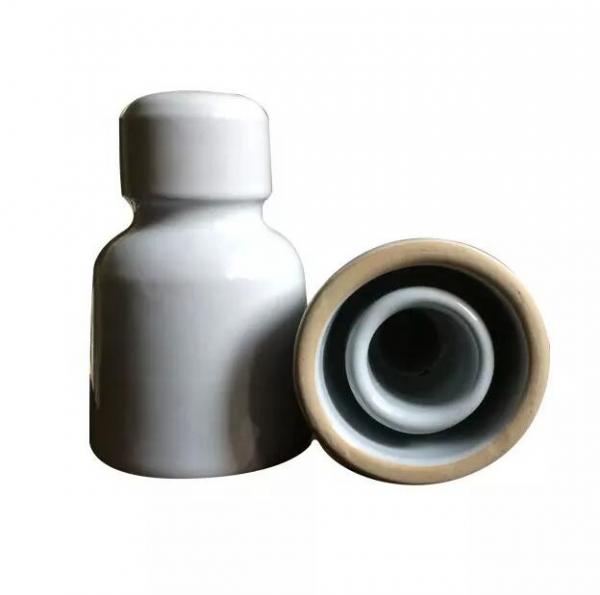

Hot Sale 11KV Electrical Ceramic Insulators

 China Hot Sale 11KV Electrical Ceramic Insulators supplier

Hot Sale 11KV Electrical Ceramic Insulators image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
RM-1

Certification :
ISO

Place of Origin :
Ningbo,China

MOQ :
1 PCS

Price :
Get the newest price

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
60,000,000pcs per year

Delivery Time :
25 days after deposit

Packaging Details :
Pallets and Cartons

Material :
Porcelain

Rated Voltage :
11KV

Creepage distance :
280mm

Tensile Strength :
Excellent

Application :
High Voltage

Transmission Line 11KV Electrical Ceramic Insulators

The ceramic material offers a very high mechanical resistance under pressure and hardness. The porcelain insulator does not deform unless an external force is applied. A long service life of up to 40 years can be guaranteed. Therefore, many users have provided long-term operating references in various applications. The design is modified to fit the environment.

1. The insulator cap use high density ductile iron ,we test each pieces with magnetic powder inspection method . all the insulator pins made of forged steel .the bonded arec between zinc sleeve and pin are more than 85% , the zinc sleeve will offer a good protection of insulator pins , it can extended insulator working life .

metal fittings surface hop-dip galvanized , coating thickness meet IEC 60383 standard.

2. We manufacture ceramic parts with high aluminum porcelain C130 . the porcelain surface covered a layer of shinning glaze , color can be grey , brown or white , it depends on customer's requirement.

3. The cotter key made of stainless steel which guarantee insulator string connection locked firmly .

4. We use Portland cement code 525 # make the assembled insulator have very good mechanical performance and good plastic character during hot & cold temperature shift.

VDE Class

RM-1

RM-2

RM-3

Main dimension,
mm

D

86

70

60

H

140

100

80

d

52

44

35

d1

22.5

18.5

16

h

50

32

30

R

12

8.5

7

R1

4

3.5

3

Leakage distance,mm
280

175

Insulation Resistance,MΩ
50000

40000

20000

Approx.weight,kg
1.1

0.5

0.3

We are China Hot Sale 11KV Electrical Ceramic Insulators manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
