Hot Roll Galvanized Metal Power Pole 33KV Class 2 1050daN 11.8m 4mm
Hot Roll Galvanized Metal Power Pole 33KV Class 2 1050daN 11.8m 4mm image
Brand Name :
FUTAO
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
8 pieces
Price :
$100 – $1500
Payment Terms :
L/C, T/T
Supply Ability :
Please talk with our staffs to get more details
Delivery Time :
36 workdays
Packaging Details :
Wrap by mat or straw mat
Model Number :
FT-CP026-01
Application :
it is widely used in cemented carbide materials grinding milling etc
Chemical composition :
c, bi , ni ,nickel nomo powerder ,
Shape :
needle/powder/granule/shot
Material :
ASTM GR65, GR50, Q460, A572,c
Height :
11.8m
Thickness :
4mm
Hot Roll Galvanized Metal Power Pole 33KV Class 2 1050daN 11.8m 4mm Q420
Product Description

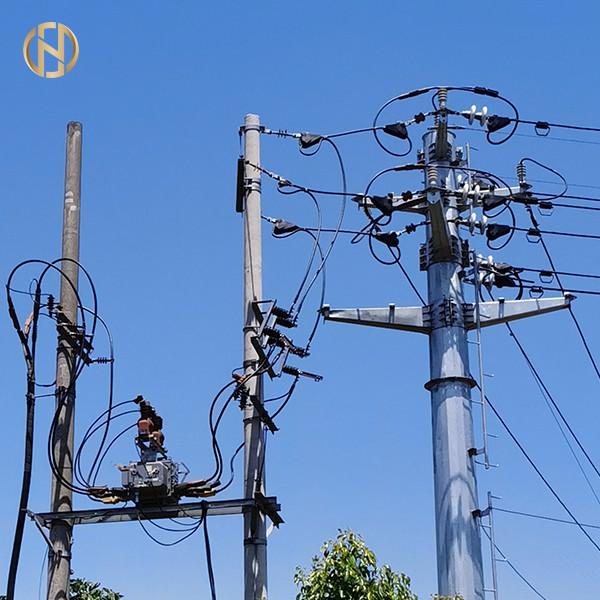

The products above are custom poles meant for overhead transmission lines.
- We can produce poles of various heights and dimensions for every situation.
To design in accordance with PLS software, we will require the following design parameters:
- The operational wind speed of the region where the pole will be used
- The Antenna load and height of the pole
- The total height of the pole itself
Product Specifications
| Item Description: | 11.8M STEEL POLES,1050daN, SF=2.0, class 3 | ||||||||
| Customer: | Congo | ||||||||
| End User: | |||||||||
| A.PROOF TESTS | Measured | Drawing Design | Allowed tolarance | Result | |||||
| Top Diameter (mm): | AVE=182 | 180 | 176-186 | PASSED | |||||
| Btm Diameter (mm): | AVE=300 | 300 | 292-308 | ||||||
| Galv Wall Thickness(mm): | AVE=4.16 | >=4 | >=4 | ||||||
| Length of Each section (mm): | 11780 | 11800 | 11700-11900 | ||||||
| Galvanized thickness (um ): | AVE=105.2(98/122/121/108/109) | ASTM 123 | Ave>=86Um | ||||||
| Holes size and distance | Passed. | drawing | No. | ||||||
| Nameplate | Y. | Y | Y/N | ||||||
| Grounding nuts | Y. | Y | Y/N | ||||||
| Bearing Plate | Y. | Y | Y/N | ||||||
| straightness of poles | 2cm allowed. | Y | 0.5% of length | ||||||
| Matercial Test | YS(Mpa) | 550 | >=460 | >=460 | |||||
| TS (Mpa) | 660 | >=550 | >=550 | ||||||
| EL (%) | 27 | >=15% | |||||||
Packaging & Shipping

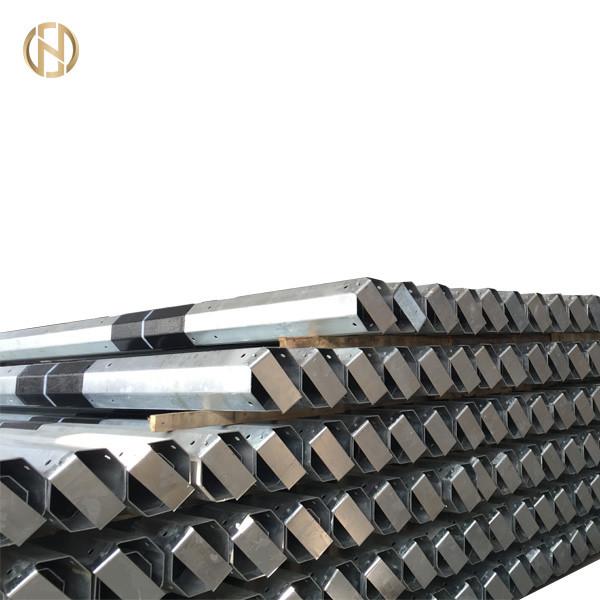

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
FAQ
- Price Term : FOB, CFR or CIF
– The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.
– Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.
- MOQ : 1 set for customized
- Payment: 30% by T/T as initial deposit, remaining balance by T/T or L/C at sight before shipment. Other payment terms can be negotiated.
- Delivery Time : Goods will be ready for shipment within 10 working days after receiving initial deposit
- Warranty : 30 years
- Surface Treatment : Hot Dip Galvanization
Our Service
1. All enquiries are replied within 24 working hours.
2. Customized designs are welcome. UEM & UBM are welcome.
3. Not sure about where to start? Have questions regarding any our products or design? Our well-trained and professional engineers and staff are here to help.
4. Special discount and protection of sales are provided to our distributors.
5. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
We are China Hot Roll Galvanized Metal Power Pole 33KV Class 2 1050daN 11.8m 4mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
