Hot Dip Galvanized Steel Q345 Q235 Mobile Tower For Telecommunication

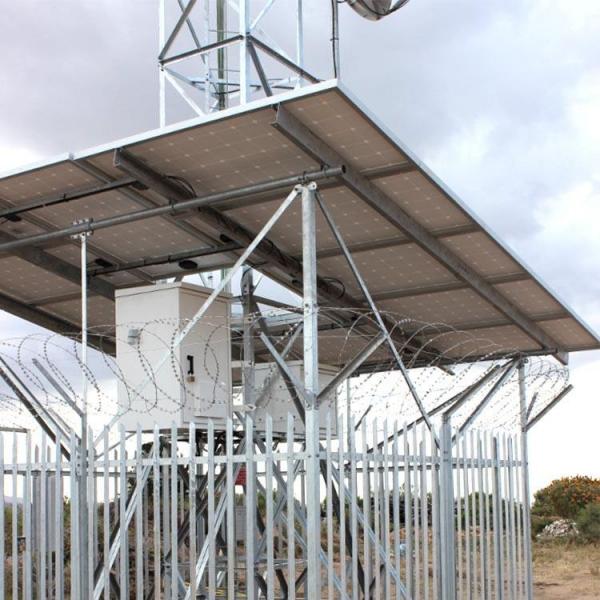

Hot Dip Galvanized Steel Q345 Q235 Mobile Tower For Telecommunication image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Steel Tower Mobile Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
100000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after payment

Packaging Details :
Exported Containers

Product Name :
Steel Tower Mobile Tower

Material List :
Steel Q345,Q235,Q420

Wind Speed :
110~160km/h_3 second gust

Usage :
Site Construction

Surface Treatment :
Hot Dip Galvanised

Lifetime :
20-30 years

Telecommunication RDU Hot-Dip Galvanized Steel Tower Mobile Tower

Signal tower is a type of signal transmission tower, also called a signal transmission tower or a signal

tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe

three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),

lifting communication tower, and movable communication tower.

Quick Detail:

Self supporting tower usually is 3-leg or 4-leg tower, and its material is steel pipe or angle steel. As for the connection,

tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.

Features

1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and

other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,

ultrashort wave, wireless network signal transmission and transmission.

Telecommunication Tower- Goods description and major parameters

No.	Description	Detailed Specification and Major design Parameters
1	Design Code	ANSI/TIA222G, European Standard and others
2	Design Loading	1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients.
4	Structure Classification	II
5	Hot-dip galvanization	ISO 1461 2009, ASTM A123
6	Steel Grade	1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
7	Bolts and Nuts	Mainly ISO 898 grade 6.8 and 8.8 bolts
8	Foundation	50KPa, 100KPa, 150KPa soil bearing capacity mainly.
9	Tower Type	1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles
10	Warranty	1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years
11	Return Period	50 Years
12	Accessories	1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients

Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in the field of electric power more than 26 years.

Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.

Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.

Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.

We are China Hot Dip Galvanized Steel Q345 Q235 Mobile Tower For Telecommunication manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
