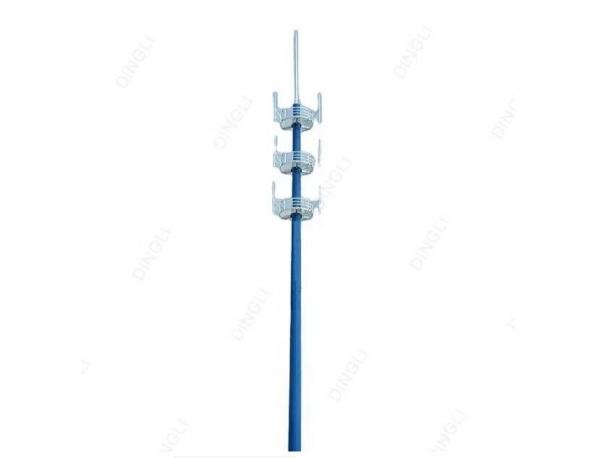

Hot Dip Galvanized Q345B Telecom Antenna Tower 100m

Hot Dip Galvanized Q345B Telecom Antenna Tower 100m image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
Steel Pole Tower

Certification :
ISO

Place of Origin :
China

MOQ :
1 Tower

Price :
Negotiation

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
30000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-40 days after deposit

Packaging Details :
Exported Containers

Material :
Usually Q345B

Height :
From 9 Meter To 100 Meter

Wall Thickness :
2-30mm

Shape :
Polygonal

Standard :
ISO 9001:2008

Bolts and Nuts :
Mainly ISO 898 Grade 6.8 And 8.8 Bolts

Hot Dip Galvanized Q345B Telecom Tower Antenna Tower Mast 100 Meter

Main Features
1. We can supply the product base on client required drawing ,but also can supply the design for any kinds

of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting

,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.
2. Material :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3 equivalent

standard materials
3. deal: Hot dip galvanized Following ASTM A 123 or any other standard by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 16meters once forming( single section)
6. Thickness: from 1mm to 25mm
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.
8. 110KV to 220kv
9. Easy install and maintenance.

Type	Straight Pole ,Suspension Pole ,Turn Pole, Terminal Pole,
Suit for	Telecommunication, Broadcasting, etc
Shape	Multi-pyramidal,Columniform, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52, and others equivalent steel material
Standard	ISO 9001:2008
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Slip joint , flange connected
Wall Thickness	2~30mm
Height	From 9 meter to 100 meter
Length of per section	Within 14m once forming without slip joint.
Welding	flaw testing.Internal and external double welding makes the welding good Welding Standard :AWS ( American Welding Society ) D 1.1
Bolts and Nuts	Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
Base plate	Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.
Marks	Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Production Process	Rew material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages→Delivery

Our company has a perfect logistics service system. Each of our products will be divided into parts suitable

for transportation, which will be carefully packaged and sent to the port or the place designated by the buyer.

The packing of the products is very easy to disassemble and protect the goods from damage.

We are China Hot Dip Galvanized Q345B Telecom Antenna Tower 100m manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
