Hot Dip Galvanized Artificial Tree Antenna Steel Tower For Telecommunication

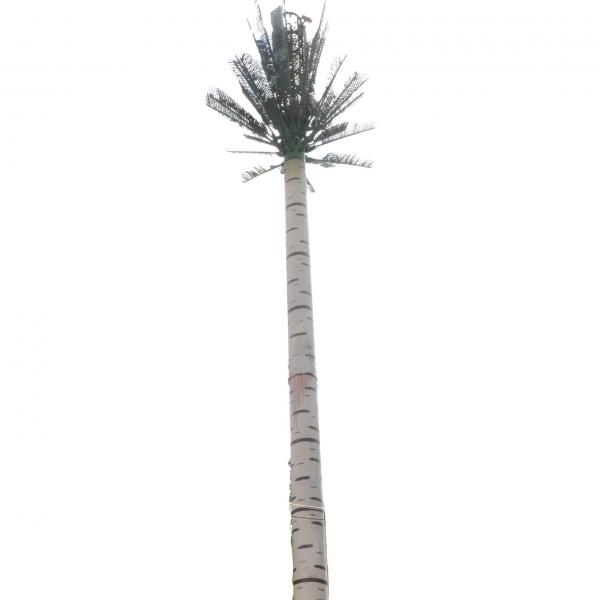

Hot Dip Galvanized Artificial Tree Antenna Steel Tower For Telecommunication image
Brand Name :
Suntech Tower
Model Number :
Palm Tree Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotitation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Name :
Telecommunication Steel Tower
Surface Treatment :
Hot-dip galvanized and specific bark with branches
Wind Speed :
110~160km/h_3 second gust
Material List :
Q235B & Q355B equivalent to A36/S235JR & Gr50/S355JR
Height :
0m~150m
Lifetime :
20-30 years
Hot-Dip Galvanized Artificial Tree Antenna Steel Tower For Telecommunication With Brackets And Lightning Rod,Fall Arrest
Artificial Tree Antenna Steel Tower For Telecommunication With Brackets And Lightning Rod,Fall Arrest
Design and Detailing
We have broad experience with virtually every make and model of tower used in the South America and Africa.
Because of this, we can design and detail antenna mounts and other tower appurtenances to meet any needs
and to fit any tower. With an in-house fabrication facility, we can custom-manufacture the items under our close
scrutinyto deliver what you need.
Tower Fabrication
As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,
camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive
prices. Let us provide you a quotation.
Tower Design
Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete
conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable.
| Telecommunication Tower- Goods description and major parameters | ||
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. |
| 2. Wind speed as per requested by the clients. | ||
| 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. | ||
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR | ||
| 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR | ||
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type | 1. 3 Leg Self supported Angular Towers |
| 2. 3 Leg Self supported Tubular Towers | ||
| 3. 4 Leg Self supported Angular Towers | ||
| 4. 4 Leg Self supported Tubular Towers | ||
| 5. Guyed Mast | ||
| 6. Monopole Tower | ||
| 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree | ||
| 8. RDS Tower: Rapid Deploy Site/Tower | ||
| 9. Rooftop Towers | ||
| 10. Smart Poles | ||
| 10 | Warranty | 1. Tower structures: 10 years |
| 2. Camouflaged towers | ||
| a. Barks: 10 years | ||
| b. Branches and leaves: 3 years | ||
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White |
| 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light | ||
| 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. | ||
| 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. | ||
| 5. ACDB as per specified by clients | ||
| 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. | ||
| 7. Fall arrest system: GB and CE certificate fall arrest system. | ||
| 8. Optical Fiber Cable: as per specified by client | ||
| 9. Generator: as per specified by client | ||
| 10. Canopy and Generator Cage: as per specified by clients | ||
Why Us
1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our
well-trained and professional engineers and staff.
4. Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians
to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit
our company anytime.
We are China Hot Dip Galvanized Artificial Tree Antenna Steel Tower For Telecommunication manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
