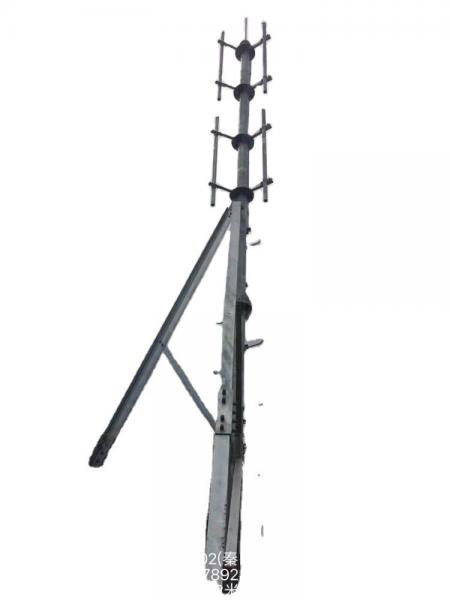

Hot Dip Galvanization And Painting Mobile Guyed Towers Steel Q355

 China Hot Dip Galvanization And Painting Mobile Guyed Towers Steel Q355 supplier

Hot Dip Galvanization And Painting Mobile Guyed Towers Steel Q355 image

Get a Quote Email to us

Brand Name :
Suntech Tower

Model Number :
Guyed Towers Mobile Tower

Certification :
ISO, CE

Place of Origin :
China

MOQ :
1 Tower

Price :
Get the newest price

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
100000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after deposit

Packaging Details :
Exported Containers

Product Name :
Guyed Towers Mobile Tower

Material List :
Steel Q355 & Q245

Height :
10-80m

Surface Treatment :
Galvanized

Wind Speed :
110~160km/h 3 second gust

Application :
Antenna Tower

Factory Supply Hot-Dip Galvanization And Painting Guyed Towers Mobile Tower

Ningbo Suntech Power Machinery Tools Co.,Ltd.

as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.

Factory price

We are our own directly factory. So you can get high quality products with factory price. For big order and regular Customers, we give favorable discounts.

Feedback:

Your satisfaction and positive feedback is very important to us. If you have any problems with our Tools or services, please feel free to contact us. We will do our best to solve any problems and provide you the best customer services

Transmission Line Steel Tower & Substation Structure- Goods description and major parameters

No. Description Detailed Specification and Major design Parameters
1 Design Code

1. Chinese National Standard:

a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line

b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line

2. American Standard:

a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures

b. ACI 318-02 Building Code Requirement for Structure Concrete

2 Design Software PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3 Design Loading As per requirement and specification by Clients worldwide.
4 Load test/destructive test We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5 Voltage 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6 Hot-dip galvanization ISO 1461-2009, ASTM A123
7 Steel Grade

1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60

2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR

3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR

8 Bolts and Nuts Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9 Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10 Tower Type Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11 Warranty Tower structures: 10 years
12 Return Period 50 Years
13 Transportation We are very close to the biggest port in the world which is our advantage for sea transportation.
14 Quality Control

Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality

We treat the quality first and 100% inspection ratio.

FAQ

1. Are you a manufacturer or a trading company?

We are a professional electrical manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.

2. Do you offer free samples?

We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.

3. Do you accept our design on products or boxes?

Yes. We accept customized design and we have a professional design team who can design products based on your requirements.

4. How long is your delivery time?

Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.

We are China Hot Dip Galvanization And Painting Mobile Guyed Towers Steel Q355 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
