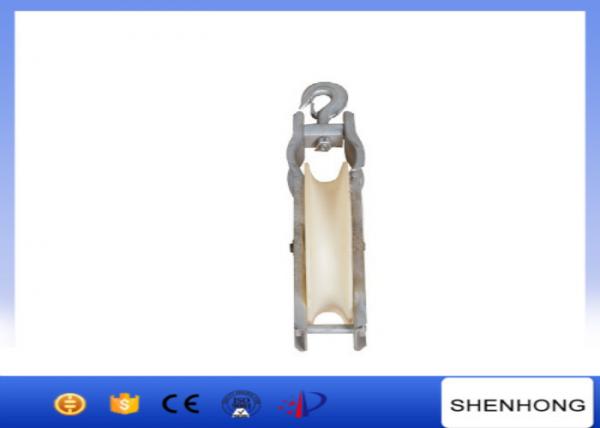

Hook style single sheave nylon wheel stringing pulley block suitable for ACSR
Hook style single sheave nylon wheel stringing pulley block suitable for ACSR image
Brand Name :
SHENHONG
Model Number :
SHD
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Piece/Pieces per Month
Delivery Time :
ten days after deposit
Packaging Details :
cartoon
Application :
construction
Function :
string wire
Diameter :
120-400mm
Rated Load :
5-20KN
Suitable conductor :
ACSR
Weight :
8kg
Hook style single sheave nylon wheel stringing pulley block suitable for ACSR
Application
It is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection. The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
Notes:
1. The material is aluminum alloy or nylon
2. The product is classified as hook style and clevis type
3. More specification can be customized.
Technical data of Hook style single sheave nylon wheel stringing pulley block suitable for ACSR
| Model | Material | Diameter | Width of sheave | Suitable conductor | Rated load(KN) | Weight(kg) |
| SHDN-120*30 | nylon | 120 | 30 | ACSR25-70 | 5 | 1.5 |
| SHDN-160*40 | nylon | 160 | 40 | ACSR95-120 | 10 | 2.5 |
| SHDN-200*40 | nylon | 200 | 40 | ACSR150-240 | 15 | 3.6 |
| SHDN-200*60 | nylon | 200 | 60 | ACSSR150-240 | 20 | 4 |
| SHDN-250*40 | nylon | 250 | 40 | ACSR150-240 | 20 | 4 |
| SHDN-250*60 | nylon | 250 | 60 | ACSR300-400 | 20 | 4.5 |
| SHDN-270*60 | nylon | 270 | 60 | ACSR300-400 | 20 | 5.6 |
| SHDN-320*60 | nylon | 320 | 60 | ACSR300-400 | 20 | 6.7 |
| SHDN-400*80 | nylon | 400 | 80 | ACSR400-500 | 20 | 13 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China Hook style single sheave nylon wheel stringing pulley block suitable for ACSR manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
