HO7RN-F Flexible Rubber Cable

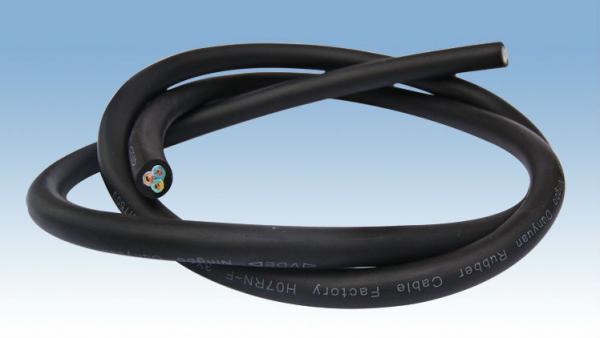

HO7RN-F Flexible Rubber Cable image
Place of Origin :
China
Brand Name :
Sino
Model Number :
HO7RN-F
Rated :
450/700V
MOQ :
300 meters
Packaging Details :
Roll/Drum/as required
Delivery Time :
10-30 days
Payment Terms :
TT
Supply Ability :
1000000 meter/week
Insulation Material :
Rubber
Type :
Low Voltage
Application :
Industrial
Conductor Material :
Copper
Jacket :
Rubber
Certification :
ISO,CCC,CE,CB
HO7RN-F Flexible Rubber Cable
Product Description
Heavy duty rubber sheathed flexible power cable H07RN-F for using on mobile devices.
Standard
IEC60245-4:2004-GB/T5013.4
Application
These cables designed to provide high flexibility and have the capacity to withstand weather,oils/greases.Mechanical and thermal stress.Applications include handling equipment,mobile power supplies,worksites,stage and audio visual equipment,port areas &dams.Also for use in drainage and water treatment, cold environment and severe industrial environment HO7RNF cable can be permanently immersed at depths of up to 100m.They are suitable for DC solar,battery and load connections.Applications include pumps,handling equipment,mobile power supplies,worksites,stage and audio visual equipment,aquatic environment,port areas and damns.Drainage and water treatment,cold environment.
Operating characteristic
1.Voltage Rating:450/750V
2.Operating Temperature Rating:-25°C/60°C (MAX.+85°C)
3.Bending radius:8X Overall Diameter
Material Specification http://www.electriccablechina.com [email protected]
Conductor:Class5 flexible plain copper conductors
Insulation:Rubber compound
Sheath:Rubber compound
Sheath Colour:Black
Conductor Identification
Two Cores-Brown and Blue
Three Cores-Brown,Blue and Green/Yellow
Four Cores-Brown,Grey,Black and Green/Yellow
Five Cores-Brown,Blue,Grey,Black and Green/Yellow
Six Cores–Black with white numerals,Green/Yellow
Part Of The Product Model & Specification
|
Core no. x Nominal sectional area (mm2) |
Pcs./Wire dia. (mm) |
Insulation thickness(mm) |
Sheath thickness (mm) |
Average outer dia.(mm) |
Weight Reference kg/km |
Max DC resistance of conductor at20°C Ω/km |
|
|
Min. |
Max. |
||||||
|
1×1.5 |
30/0.25 |
0.8 |
1.4 |
5.7 |
7.1 |
76 |
13.3 |
|
1×2.5 |
49/0.25 |
0.9 |
1.4 |
6.3 |
7.9 |
98 |
7.98 |
|
1×4 |
56/0.30 |
1.0 |
1.5 |
7.2 |
9.0 |
130 |
4.95 |
|
1×6 |
84/0.30 |
1.0 |
1.6 |
7.9 |
9.8 |
174 |
3.30 |
|
1×10 |
84/0.40 |
1.2 |
1.8 |
9.5 |
11.9 |
251 |
1.91 |
|
1×16 |
126/0.40 |
1.2 |
1.9 |
10.8 |
13.4 |
330 |
1.21 |
|
1×25 |
196/0.40 |
1.4 |
2.0 |
12.7 |
15.8 |
475 |
0.780 |
|
1×35 |
276/0.40 |
1.4 |
2.2 |
14.3 |
17.9 |
605 |
0.554 |
|
1×50 |
396/0.40 |
1.6 |
2.4 |
16.5 |
20.6 |
828 |
0.386 |
We are China HO7RN-F Flexible Rubber Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
