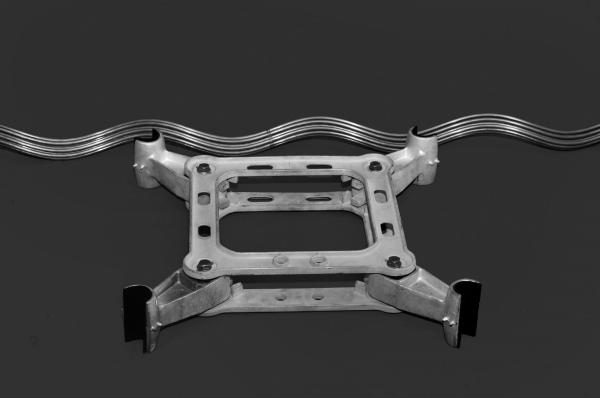

High Tensile Strength Transmission Line Clamps Efficient For Jumper Conductors
High Tensile Strength Transmission Line Clamps Efficient For Jumper Conductors image
Brand Name :
GZXYHY
Model Number :
XTJ
Certification :
ISO9001 Certification
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, T/T, Western Union
Supply Ability :
10 Piece/Pieces per Month
Delivery Time :
30days after order confirmed
Packaging Details :
1/ Wooden case 2/ Packaging according to the costomer’s request
Materail :
Aluminium alloy
Standard :
ISO9001-2008, IEC 61284
Characteristic :
High tensile strength
Elongation :
Long
Usage :
Be used in high voltage pole line
High Tensile Strength Aluminium Alloy Suspension Clamp for Jumper Conductors
Quick Details
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: XYHY
- Model Number: XTJ
- Material: Aluminium alloy
- Standard: ISO9001-2008, IEC 61284
Packaging & Delivery
Packaging Details :1/ Wooden case
2/ Packaging according to the costomer's request
Delivery Time: 30days after order confirmed
Description
Pole transmission line hardware suspension clamp is used in high voltage pole line to connect power fitting string or insulators. The clamp body and keepers are aluminium alloy, cotter-pins are stainless steel, the other parts are hot-dip galvanized steel.
If the bandle space of condactor reaches 450, all the suspension clamps for Jumper Conductors can match with the coanter weight ZC-20, but not ZC-18. If the bundle space of condactor reaches 500, all the suspension clamps for Jumper Conductors can match with both ZC-20 and ZC-18.
Characteristic: High tensile strength long elongation hot dip galvanized
Quality indemnity:
1. ISO9001 Certification
2. Test checking prior to shipment
3. GB/T national standard
4. Type test report provided
Specification
Suspension clamps for Jumper Conductors
| Catalog No. | Suitable Conductor | Dimensions(mm) |
Weight (kg) |
|||
| H | C | Ø | Ø1 | |||
| XTJ4-300 | LGJ-300/20~50 | 450 | 240 | 18 | 24 | 11.9 |
| XTJ4-400A | LGJ-400/20~35 | 450 | 240 | 18 | 24 | 11.9 |
| XTJ4-400 | LGJ-400/50~65 | 450 | 240 | 18 | 24 | 12.2 |
| XTJ4-400B | LGJ-400/95 | 450 | 240 | 18 | 24 | 11.9 |
| XTJ4-500 | LGJ-500/45 | 450 | 240 | 18 | 24 | 12.5 |
| XTJ4-630 | LGJ-630/45 | 500 | 240 | 26 | 24 | 15.4 |
| XTJ-720 | LGJ-720/50 | 500 | 240 | 26 | 24 | 15.4 |
We are China High Tensile Strength Transmission Line Clamps Efficient For Jumper Conductors manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: aerial cable clamp, Cable Suspension Clamp, cable suspension hardwareSimilar Or Related
-
Silver White Cable Suspension Hardware , Aluminum Cable Clamps Customized Designed
-

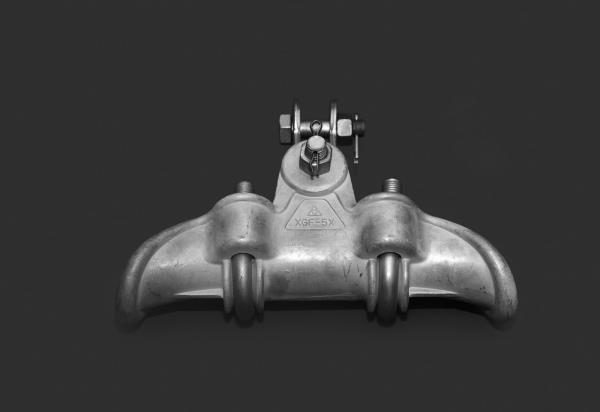

Trunnion Type XGU 1 Cable Suspension Clamp Malleable Iron / Steel In Power Transmission
-

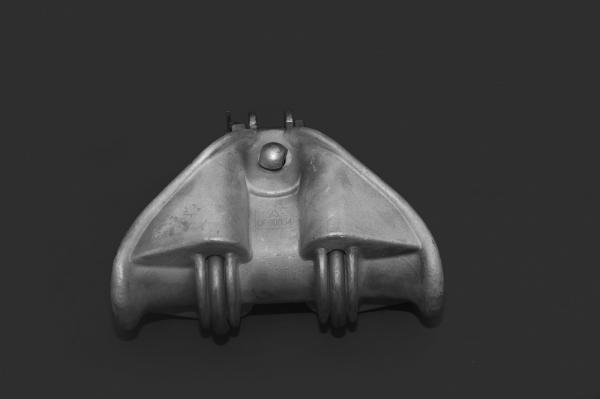

Hang – Down Type Cable Suspension Clamp 110 – 1000KV Voltage For Pole Line Hardware
-
