High Strength Transmission Line Stringing Tools 20KN / Customized Rated Load
High Strength Transmission Line Stringing Tools 20KN / Customized Rated Load image
Brand Name :
Suntech
Model Number :
SHDN
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C , T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
7-15 days after Payment
Packaging Details :
Wooden Case or Container
Name :
MC Stringing Blocks
Item :
SHDN
Feature :
Stringing Pulley
Load Capacity :
20KN,40KN,60KN Or Customized
Application :
Stringing Tools
Usage :
Overhead Line

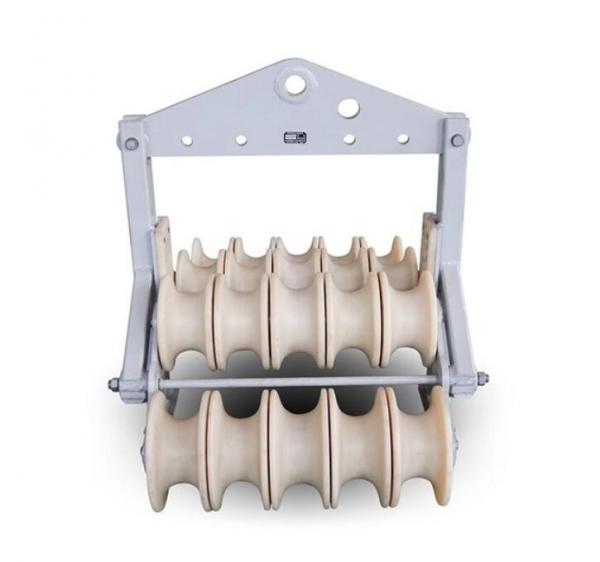

Construction Works Cable Pulley Transmission Line Stringing Pulleys
1.Wheel Size: 120~1040mm
2.Wheel Material: Nylon/Aluminum
3.Wheel number: 1~5
4.Galvanized Steel Frame
Different combinations different material Cable Pulley
Cable Pulley
Stringing blocks have different diameter were used to string different conductors.
Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.
Product: stringing pulley blocks; stringing blocks.
Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Description:
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements.
| Model | Wheel size Diameter x Width (mm) | Conductor size (mm2) | Rated load (kN) | Weight (kg) | Wheel material |
| SHD-120X30 | 120×30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120×30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-830X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 |
We are China High Strength Transmission Line Stringing Tools 20KN / Customized Rated Load manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
