High Strength Stranded CCS Copper Clad Steel Wire Size 0.08mm-4.0mm CCS Copper Wires

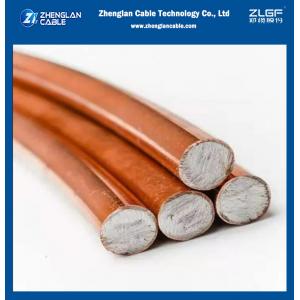

High Strength Stranded CCS Copper Clad Steel Wire Size 0.08mm-4.0mm CCS Copper Wires image
High Strength Stranded CCS Copper Clad Steel Wire size 0.08mm-4.0mm CCS copper wires
Applications:
1.Earth rod for power industry
2.Trolly wire for power transmission
3.Overhead-contact systems for railway
4.Connectors for electronic components
5.Strengthened Conductivity wire core for special cable
Standard:
- ASTM B227, BS 4087, ASTM B 452, ASTM B 869
Conductivity: 21%IACS – 45%IACS
Type: 21A, 21HS, 30A, 30HS, 30EHS, 40A, 40HS, 40EHS
Technical Parameters:
No./size of strands | No./mm | Cross-section mm2 | Rated strength kN | DC Resistance,Ω/km | Approx. weight kg/km | ||||
Grade 40 HS | Grade 30 HS | Grade 30 EHS | Grade 40 | Grade 30 | Grade 30 | Grade 40 | |||
3 No. 5 | 3/4.62 | 50.32 | 37.3 | 41.2 | 52.8 | 0.881 | 1.174 | 413.41 | 417.73 |
3 No.6 | 3/4.11 | 39.8 | 30.9 | 34 | 43.4 | 1.111 | 1.481 | 327.84 | 331.26 |
3 No. 7 | 3/3.67 | 31.65 | 25.5 | 28 | 35.3 | 1.401 | 1.867 | 259.39 | 262.66 |
3 No. 8 | 3/3.26 | 25.1 | 21.1 | 23 | 27.95 | 1.766 | 2.354 | 206.11 | 208.34 |
3 No. 9 | 3/2.91 | 19.9 | 17.13 | 18.9 | 22.8 | 2.227 | 2.969 | 163.55 | 165.19 |
3 No.10 | 3/2.59 | 15.78 | 14.35 | 15.6 | 18.5 | 2.808 | 3.744 | 129.62 | 130.99 |
3 No. 12 | 3/2.05 | 9.9 | 7.65 | 4.465 | 81.551 | 82.414 | |||
7 No. 4 | 7/5.19 | 148.1 | 99.3 | 110.3 | 130.9 | 0.3 | 0.4 | 1218.7 | 1231.5 |
7 No.5 | 7/4.62 | 117.4 | 82.4 | 91.1 | 109.7 | 0.378 | 0.504 | 966.41 | 976.53 |
7 No.6 | 7/4.11 | 93.1 | 68.2 | 75.2 | 91 | 0.477 | 0.636 | 766.25 | 774.29 |
7 No. 7 | 7/3.67 | 73.87 | 56.4 | 61.9 | 75.2 | 0.601 | 0.802 | 608.06 | 614.46 |
7 No.8 | 7/3.26 | 58.56 | 46.6 | 50.9 | 61.8 | 0.759 | 1.011 | 482.02 | 487.07 |
7 No. 9 | 7/2.91 | 46.44 | 38.4 | 41.2 | 50.2 | 0.956 | 1.275 | 382.16 | 386.18 |
7 No. 10 | 7/2.59 | 36.83 | 30.9 | 34 | 40.9 | 1.206 | 1.6 | 303.14 | 306.26 |
19 No. 5 | 19/4.62 | 318.7 | 223.5 | 247.2 | 297.6 | 0.14 | 0.187 | 2634 | 2660.8 |
19 No. 6 | 19/4.11 | 252.7 | 185.1 | 203.9 | 247 | 0.176 | 0.176 | 2087.9 | 2110.2 |
19 No. 7 | 19/3.67 | 200.4 | 153 | 167.9 | 204 | 0.222 | 0.297 | 1656.3 | 1674.2 |
19 No. 8 | 19/3.26 | 158.9 | 126.3 | 138.1 | 167.7 | 0.281 | 0.374 | 1313.6 | 1327.2 |
19 No. 9 | 19/2.91 | 12610 | 104.1 | 113.5 | 136.2 | 0.354 | 0.471 | 1041.7 | 1052.6 |
Image:
Support and Services:
Copper Clad Steel offers comprehensive technical support and service for our customers. Our team of technicians are available 24/7 to answer any questions you may have and to help you get the most out of your product.
We provide detailed installation guides to ensure that your product is installed correctly and is running at its best. In addition, if you experience any issues, our technicians can provide troubleshooting and repair services.
At Copper Clad Steel we strive to provide the best customer service experience possible. We are committed to providing you with the highest quality products and services to ensure that your experience is a positive one.
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
We are China High Strength Stranded CCS Copper Clad Steel Wire Size 0.08mm-4.0mm CCS Copper Wires manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 4.0mm copper Clad Steel, Copper Clad Steel, High Strength copper Clad Steel
