High strength Galvanized Steel wire reinforeced ACSR conductor cable

High strength Galvanized Steel wire reinforeced ACSR conductor cable image

Get a Quote Email to us

Brand Name :
Sanwu

Model Number :
ACSR conductor

Certification :
ISO CCC

Place of Origin :
Henan

MOQ :
1000M

Price :
Negotiate

Supply Ability :
200 tons per day

Delivery Time :
1-15days

Packaging Details :
wooden drum

Payment Terms :
L/C, T/T

Name :
ACSR Core Wire

Conductor :
Aluminum

Insulation :
bare

Valtage :
0.6/1 kv

application :
overhead

Size :
8 Mcm

Conductors Aac/ Aaac/ Acsr/ Acar/ Accc Overhead Bare Conductors

ACSR (Aluminum Conductor Steel Reinforced), consisting of a galvanized steel core, is surrounded byconcentric layers of aluminum wire, and grease if necessary.

Application:
Conductor (AAC and ACSR) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.

Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced

(ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.

ACSR ASTM Technical Datasheet
Code	Size	Section		Stranding		Diameter		Total Weight	Rated Strength	Maximum Resisitance @20°C
		Section		Stranding		Diameter
		Al	Total	Al	Steel	Cable	Steel
	AWG or MCM	mm²		mm		mm		kg/km	kg	Ω/km
Wren	8	8.37	9.81	6×1.33	1×1.33	3.99	1.33	33.8	340	3.4017
Turkey	6	13.3	15.48	6×1.68	1×1.68	5.03	1.68	53.7	540	2.1135
Swan	4	21.15	24.71	6×2.12	1×2.12	6.35	2.12	85.4	846	1.3278
Swanate	4	21.15	26.52	7×1.96	1×2.61	6.53	2.61	99.7	1067	1.3133
Sparrow	2	33.62	39.23	6×2.67	1×2.67	8.03	2.67	136	1289	0.8343
Sparate	2	33.62	42.13	7×2.47	1×3.30	8.26	3.3	159	1650	0.8251
Robin	1	42.41	49.48	6×3.00	1×3.00	9.02	3	171	1612	0.6621
Raven	1/0	53.51	62.39	6×3.37	1×3.37	10.11	3.37	216	1987	0.5243
Quail	2/0	67.44	78.65	6×3.78	1×3.78	11.35	3.78	273	2401	0.416
Pigeon	3/0	85.02	99.23	6×4.25	1×4.25	12.75	4.25	344	3006	0.3304
Penguin	4/0	107	125	6×4.77	1×4.77	14.3	4.77	433	3787	0.2618
Owl	266.8	135	153	6×5.36	7×1.79	16.09	5.37	507	4330	0.2109
Waxwing	266.8	135	143	18×3.09	1×3.09	15.47	3.09	431	3117	0.2119
Partridge	266.8	135	157	26×2.57	7×2.00	16.31	5.98	547	5113	0.21
Oatrich	300	152	177	26×2.73	7×2.12	17.27	6.36	614	5755	0.1867
Piper	300	152	188	30×2.54	7×2.54	17.78	7.62	697	7000	0.1902
Merlin	336.4	171	180	18×3.47	1×3.47	17.37	3.47	544	3931	0.168
Linnet	336.4	171	198	26×2.89	7×2.25	18.31	6.74	689	6730	0.1663
Oriole	336.4	171	210	30×2.69	7×2.69	18.82	8.07	784	7865	0.1654
Chickadee	397.5	201	213	18×3.77	1×3.77	18.87	3.77	642	4499	0.1421
Ibis	397.5	201	234	26×3.14	7×2.44	19.89	7.32	814	7488	0.1411
Lark	397.5	201	248	30×2.92	7×2.92	20.47	8.77	927	9202	0.1401
Pelican	477	242	255	18×4.14	1×4.14	20.68	4.14	771	5347	0.1184
Flicker	477	242	273	24×3.58	7×2.39	21.49	7.16	914	7790	0.1178
Hawk	477	242	281	26×3.44	7×2.67	21.79	8.03	977	8880	0.1171
Hen	477	242	298	30×3.20	7×3.20	22.43	9.61	1112	10783	0.1165
Heron	500	253	312	30×3.28	7×3.28	22.96	9.84	1162	11090	0.1141
Osprey	556.5	282	298	18×4.47	1×4.47	22.33	4.47	899	6233	0.1014
Parakeet	556.5	282	319	24×3.87	7×2.58	23.22	7.73	1067	8999	0.101
Dove	556.5	282	328	26×3.72	7×2.89	23.55	8.66	1140	10019	0.1007
Eagle	556.5	282	348	30×3.46	7×3.46	24.21	10.39	1298	12606	0.1001
Peacock	605	307	346	24×4.03	7×2.69	24.21	8.03	1161	9771	0.0928
Squab	605	307	357	26×3.87	7×3.01	24.54	9.04	1240	11018	0.0925
Teal	605	307	376	30×3.61	19×2.16	25.25	10.82	1398	13567	0.0919
Duck	605	307	346	54×2.69	7×2.69	24.21	8.07	1158	10210	0.0944
Kingbird	636	322	340	18×4.78	1×4.78	23.88	4.78	1028	7128	0.0895
Rook	636	322	364	24×4.14	7×2.76	24.82	8.28	1219	10298	0.0883
Grosbeak	636	322	375	26×3.97	7×3.09	25.15	9.27	1302	11427	0.0897
Egret	636	322	396	30×3.70	19×2.22	25.88	11.1	1471	14302	0.0876
Goose	636	322	364	54×2.76	7×2.76	24.84	8.28	1218	10730	0.0898
Flamingo	666.6	338	382	24×4.23	7×2.82	15.4	8.46	1278	10751	0.0843
Gull	666.6	338	382	54×2.82	7×2.82	25.38	8.46	1276	11140	0.0587
Starling	715.5	363	422	26×4.21	7×3.28	26.7	9.83	1465	12865	0.0781
Redwing	715.5	363	445	30×3.92	19×2.35	27.46	11.76	1653	15649	0.0778
Cuckoo	795	403	455	24×4.62	7×3.08	27.74	9.25	1524	12649	0.0719

We are China High strength Galvanized Steel wire reinforeced ACSR conductor cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Similar Or Related

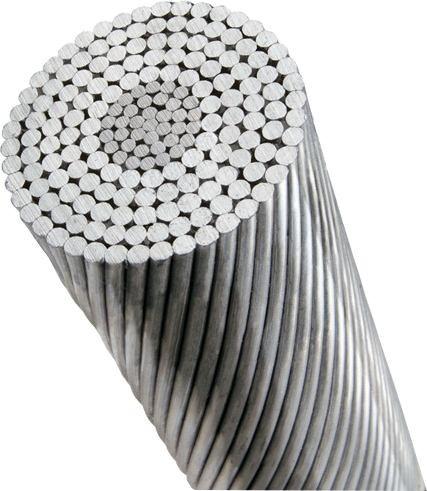

Galvanized Steel 8 Mcm 9.81mm2 ACSR Core Wire
