High Light Construction Site Telecom Mast Tower Steel Q235 Q420

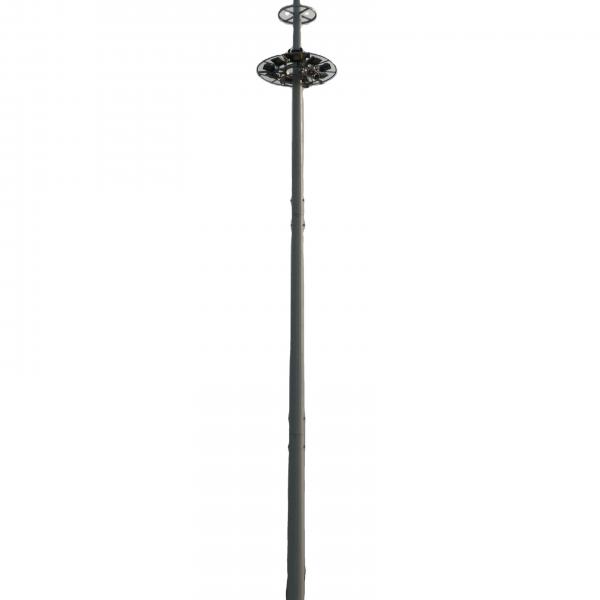

High Light Construction Site Telecom Mast Tower Steel Q235 Q420 image
Brand Name :
Suntech Tower
Model Number :
Steel Telecom Mast Tower
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the newest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Product Name :
Steel Telecom Mast Tower
Material List :
Steel Q235 Q420
Height :
10-120m
Surface Treatment :
Hot Dip Galvanized
Wind Speed :
110~180km/h 3 second gust
Application :
Monopole Tower
High Light Construction Site Steel Telecom Mast Tower For Telecommunication
Suntech Power Group is one of the largest Procurement, Engineering & Contracting Group companies in China.Our group branch company and factory have already engaged in field of electric power more than 26 years
Quick Detail:
Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This
fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.
As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe
capacity issues on their networks. While new technology and better wireless antennas can help, the best solution
is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more
stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles
and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more
aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.
Monopole advantages:
Small tower footprint and foundation
Fast and easy to erect
Aesthetically pleasing
Our Product Range,
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.
Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.
Technical Data
Design | ||
1. Design Code | TIA/EIA-222-G/F | |
Structure Steel | ||
2. Grade | Mild Steel | High Tensile Steel |
GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
ASTM A36 | ASTM A572 Gr50 | |
EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
3. Design Wind Speed | Up to 250 km/h | |
4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
5. Tension strength (Mpa) | 360~510 | 470~630 |
6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
7. Elongation (%) | 20 | 24 |
8. Impact strength KV (J) | 27(20°C)—Q235B(S235JR) | 27(20°C)—Q345B(S355JR) |
27(0°C)—Q235C(S235J0) | 27(0°C)—Q345C(S355J0) | |
27(-20°C)—Q235D(S235J2) | 27(-20°C)—Q345D(S355J2) | |
Bolts & Nuts | ||
9. Grade | Grade 4.8, 6.8, 8.8 | |
10. Standards for mechanical properties | ||
10.1 Bolts | ISO 898-1 | |
10.2 Nuts | ISO 898-2 | |
10.3 Washers | ISO 6507-1 | |
11. Standards for Dimensions | ||
11.1 Bolts | DIN7990, DIN931, DIN933 | |
11.2 Nuts | ISO4032, ISO4034 | |
11.3 Washers | DIN7989, DIN127B, ISO7091 | |
Welding | ||
12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
13. Standard | AWS D1.1 | |
Marking | ||
14. Method of marking of the members | Hydraulic Press Stamping | |
Galvanizing | ||
15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
Test | ||
17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
Capacity | ||
18. Maximum Production Capacity | 50,000 TON per annum |
