High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge

High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge image

Get a Quote Email to us

Place of Origin :
Anhui,China

Brand Name :
Litong Global

Certification :
ISO9001

Model Number :
LT-151112

MOQ :
Negotiable

Price :
Negotiable

Packaging Details :
In coil or on Drum

Delivery Time :
10 days after confirmed order or as per order quantity

Payment Terms :
TT/LC

Supply Ability :
400tons/day

Steel Grade :
high Carbon Wire Rod

Wire Gauge :
1.0-4.8mm

Type :
Galvanized

Alloy Or Not :
Non-alloy

Special Use :
Free Cutting Steel

Application :

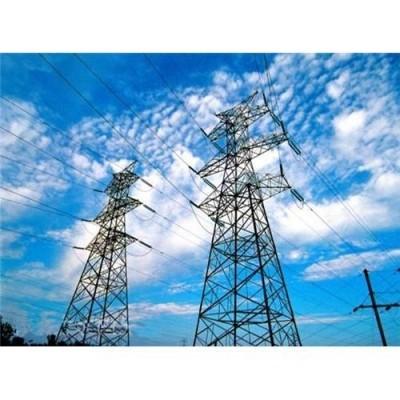

overhead transmission line,ACSR Conductor,telecommission

Standard :
AISI|ASTM|BS|DIN|GB|JIS

Galvanized Steel Wire/Strand

Our range of Galvanized Steel Wire/Strand(called”steel wire) has been designed for superior efficiency and performance.Steel Wire manufacturing has been Litong Cable’s initial products since established factory in 2000.It has today evolved into the country’s main larger player with a domestic share of over 15% ,esp.in China State Grid and an installed capacoty of over10,000MT.The Main product range comprises of 7 strand and 19 strand.

Product Range

Our Galvanized Steel Wire &Strand include:

.Main Single Wire Size:1.0mm-4.8mm

.Structure of Strand:1*7 &1*19

.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.

.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc.

Galvanized Steel Wire Strand ASTM A-475
Number of Wire(Dia.)	Approx.Strand Dia.		Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx.Weight
	Inch	mm	KN	KN	KN	kg/km
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.04	29.981	174
3/3.05	1/4	6.35	–	–	–	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.18	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	–	–	–	118
7/1.83	3/16	5.56	11.387	17.126	24.02	145
7/2.03	7/32	6.35	14.012	21.129	29.581	181
7/2.36	1/4	7.14	18.905	28.469	39.812	243
7/2.64	9/32	7.94	23.798	35.586	49.82	305
7/2.77	5/16	7.94	–	–	–	335
7/3.05	3/8	9.52	30.915	48.04	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.7	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.7	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352
19/5.08	1	25.4	209.066	325.61	464.839	2384
37/3.63	1	25.4	205.508	319.827	456.832	3061
37/4.09	11/8	28.58	262	407.457	581.827	4006
37/4.55	11/4	31.75	324.72	505.318	721.502	4833
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.04	29.981	174
3/3.05	1/4	6.35	–	–	–	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.18	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	–	–	–	118
7/1.83	3/16	5.56	11.387	17.126	24.02	145
7/2.03	7/32	6.35	14.012	21.129	29.581	181
7/2.36	1/4	7.14	18.905	28.469	39.812	243
7/2.64	9/32	7.94	23.798	35.586	49.82	305
7/2.77	5/16	7.94	–	–	–	335
7/3.05	3/8	9.52	30.915	48.04	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.7	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.7	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352

Galvanized Steel Wire Strand BS183:1972
Number of Wires/Dia.	Approx.Strand Dia.	Minimum Breaking Load of Strand							Approx Weight
Number of Wires/Dia.	Approx.Strand Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx Weight
	mm	kN	kN	kN	kN	kN	kN	kN	Kg/km
3/1.80	3.9	2.65	3.66	–	–	–	–	–	60
3/2.65	5.7	5.8	7.95	–	–	–	–	–	130
3/3.25	7	8.7	11.95	–	–	–	–	–	195
3/4.00	8.6	13.2	18.1	–	–	–	–	–	295
4/1.80	4.4	3.55	4.9	–	–	–	–	–	80
4/2.65	6.4	7.7	10.6	–	–	–	–	–	172
4/3.25	7.9	11.6	15.9	–	–	–	–	–	260
4/4.00	9.7	17.6	24.1	35.2	–	–	–	–	390
5/1.50	4.1	3.1	4.24	6.18	–	–	–	–	69
5/1.80	4.9	4.45	6.1	8.9	–	–	–	–	95
5/2.65	7.2	9.65	13.25	19.3	–	–	–	–	220
5/3.25	8.8	14.5	19.9	29	–	–	–	–	320
5/4.00	10.8	22	30.15	43.95	–	–	–	–	490
7/0.56	1.7	0.6	0.83	1.2	–	1.7	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94	–	2.75	3.19	3.6	28
7/0.85	2.6	1.39	1.9	2.8	–	3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3..1	–	4.45	5.12	5.8	35
7/1.00	3	1.92	2.64	3.85	–	5.5	6.32	7.15	43
7/1.25	3.8	3.01	4.1	6	–	8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14	84
7/1.60	4.8	4.9	6.75	9.85	11.95	14.1	16.2	18.3	110
7/1.80	5.4	6.23	8.55	12.45	–	17.8	20.5	23.2	140
7/2.00	6	7.7	10.55	15.4	–	22	25.3	28.6	170
7/2.36	7.1	10.7	14.7	21.4	–	30.6	35.2	39.8	240
7/2.65	8	13.5	18.5	27	–	38.6	44.4	50.2	300
7/3.00	9	17.3	23.75	34.65	–	49.5	56.9	64.3	392
7/3.15	9.5	19.1	26.2	38.2	–	54.55	62.75	70.9	430
7/3.25	9.8	20.3	27.85	40.65	–	58.05	66.8	75.5	460
7/3.65	11	25.6	35.15	51.25	–	73.25	84.2	95.2	570
7/4.00	12	30.9	42.2	61.6	–	88	101	114	690
7/4.25	12.8	34.75	47.65	69.5	–	99.3	114	129	780
7/4.75	14	43.4	59.45	86.8	–	124	142.7	161.3	970
19/1.00	5	5.22	7.16	10.45	–	14.92	17.16	19.4	120
19/1.25	6.3	8.16	11.19	16.32	–	23.32	26.81	30.31	180
19/1.40	7	10.24	14.04	20.47	–	29.25	33.64	38.02	230
19/1.60	8	13.37	18.35	26.75	–	38.2	43.93	49.66	300
19/2.00	10	20.9	28.65	41.78	50.74	59.69	68.64	77.6	470
19/2.50	12.5	32.65	44.8	65.29	79.28	93.27	107.3	121.3	730
19/3.00	15	47	64.5	94	114.1	134.3	154.5	174.6	1050
19/3.55	17.8	65.8	90.27	131.6	159.9	188	216.3	244.5	1470
19/4.00	20	83.55	114.6	167.1	203	238.7	274.6	310.4	1870
19/4.75	23.8	117.85	161.4	235.7	286	336.7	387.2	437.7	2630
7/1.60	4.8	4.9	6.75	9.85	11.95	14.1	16.2	18.3	110
7/1.80	5.4	6.23	8.55	12.45	–	17.8	20.5	23.2	140
7/2.00	6	7.7	10.55	15.4	–	22	25.3	28.6	170
7/2.36	7.1	10.7	14.7	21.4	–	30.6	35.2	39.8	240
7/2.65	8	13.5	18.5	27	–	38.6	44.4	50.2	300
7/3.00	9	17.3	23.75	34.65	–	49.5	56.9	64.3	392
7/3.15	9.5	19.1	26.2	38.2	–	54.55	62.75	70.9	430
7/3.25	9.8	20.3	27.85	40.65	–	58.05	66.8	75.5	460
7/3.65	11	25.6	35.15	51.25	–	73.25	84.2	95.2	570
7/4.00	12	30.9	42.2	61.6	–	88	101	114	690
7/4.25	12.8	34.75	47.65	69.5	–	99.3	114	129	780
7/4.75	14	43.4	59.45	86.8	–	124	142.7	161.3	970
19/1.00	5	5.22	7.16	10.45	–	14.92	17.16	19.4	120
19/1.25	6.3	8.16	11.19	16.32	–	23.32	26.81	30.31	180
19/1.40	7	10.24	14.04	20.47	–	29.25	33.64	38.02	230
19/1.60	8	13.37	18.35	26.75	–	38.2	43.93	49.66	300
19/2.00	10	20.9	28.65	41.78	50.74	59.69	68.64	77.6	470
19/2.50	12.5	32.65	44.8	65.29	79.28	93.27	107.3	121.3	730
19/3.00	15	47	64.5	94	114.1	134.3	154.5	174.6	1050
19/3.55	17.8	65.8	90.27	131.6	159.9	188	216.3	244.5	1470
19/4.00	20	83.55	114.6	167.1	203	238.7	274.6	310.4	1870

We are China High Carbon Galvanized Steel Core Wire ASTM B 803 With 1.0-4.8mm Wire Gauge manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
