High Breaking Force Different Size Anti Twisting Braided Steel Wire Rope Dia 9mm 11mm 13mm

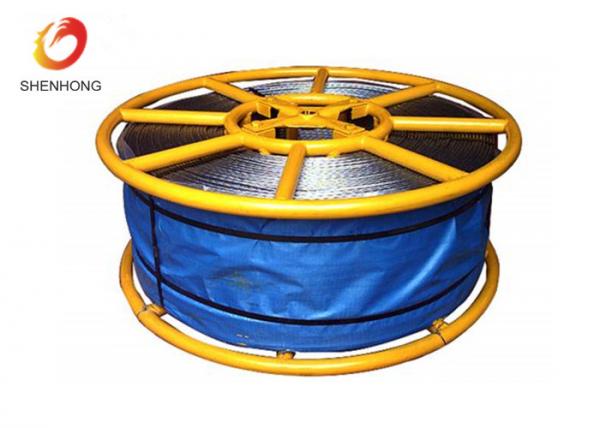

High Breaking Force Different Size Anti Twisting Braided Steel Wire Rope Dia 9mm 11mm 13mm image
Brand Name :
SHENHONG
Model Number :
YL18-12×19
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1000M
Price :
USD2-3/m
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000M per day
Delivery Time :
15 days after deposit
Packaging Details :
with spool
Product name :
High breaking force different size steel Wire Rope dia 9mm 11mm 13mm
Type :
Anti twist Wire Rope
Structure :
Hexagon 12 Strands
Standard Length (m) :
1000
Warranty :
1 year
Application :
Stringing Overhead Conductor or OPGW
High breaking force different size steel Wire Rope dia 9mm 11mm 13mm
12 strands Anti-twisting braided wire rope with high strength hot dip galvanized steel quality by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Feature
1. Tension applied to cable or hauling
2. Material: Galvanize steel,
3. Size: 9~30mm,
4. 6 squares 12strands or 18 strands,
Galvanize anti twist steel wire rope
Data Sheet
|
Structure |
Type |
section Dia |
Single |
Tensile Strength |
Min Breaking |
Min Breaking |
|
layer Dia |
(Mpa) |
Force of strands(KN) |
Force of rope(KN) |
|||
|
Four sides eight strands |
1x19x8 |
6 |
1.5 |
1770 |
3.0 |
20.3 |
|
1x19x8 |
8 |
2.0 |
1770 |
5.1 |
35.3 |
|
|
1x19Wx8 |
9 |
2.5 |
1930 |
9.2 |
61.2 |
|
|
1x19x8 |
9 |
2.5 |
1770 |
7.0 |
47.6 |
|
|
1x19Wx8 |
11 |
3.0 |
1930 |
11.2 |
76.0 |
|
|
1x19x8 |
11 |
3.0 |
1770 |
10.0 |
68.0 |
|
|
1x19Wx8 |
13 |
3.5 |
1930 |
15.5 |
105.0 |
|
|
1x19x8 |
13 |
3.5 |
1770 |
11.8 |
80.0 |
|
|
1x19x8 |
15 |
4.0 |
1770 |
11.8 |
80.0 |
|
|
1xT25x8 |
18 |
4.8 |
1930 |
30.0 |
204.0 |
|
|
1xT25x8 |
20 |
5.2 |
1930 |
35.5 |
241.0 |
|
|
1x37x8 |
22 |
6.0 |
1770 |
41.4 |
282.0 |
|
|
1x37x8 |
24 |
6.5 |
1770 |
52.0 |
354.0 |
|
|
Four sides twelve strands |
1x19x12 |
9 |
2.0 |
1770 |
4.0 |
41.0 |
|
1x19Wx12 |
11 |
2.5 |
1930 |
9.2 |
93.0 |
|
|
1x19x12 |
11 |
2.5 |
1770 |
7.0 |
71.0 |
|
|
1x19Wx12 |
13 |
3.0 |
1930 |
11.2 |
110.0 |
|
|
1x19x12 |
13 |
3.0 |
1770 |
10.0 |
102.0 |
|
|
1x19Wx12 |
15 |
3.5 |
1930 |
15.0 |
153.0 |
|
|
1x19x12 |
15 |
3.5 |
1770 |
11.8 |
120.0 |
|
|
1x19x12 |
17 |
4.0 |
1770 |
18.0 |
183.0 |
|
|
1xT25x12 |
20 |
4.8 |
1930 |
30.0 |
306.0 |
|
|
1xT25x12 |
24 |
5.2 |
1930 |
35.5 |
360.0 |
|
|
Six sides twelve strands |
1x19x12 |
9 |
2.0 |
1770 |
4.0 |
41.0 |
|
1x19Wx12 |
11 |
2.5 |
1930 |
9.2 |
930.0 |
|
|
1x19x12 |
11 |
2.5 |
1770 |
7.0 |
71.0 |
|
|
1x19Wx12 |
13 |
3.0 |
1930 |
11.2 |
110.0 |
|
|
1x19x12 |
13 |
3.0 |
1770 |
10.0 |
102.0 |
|
|
1x19Wx12 |
15 |
3.5 |
1930 |
15.0 |
153.0 |
|
|
1x19x12 |
15 |
3.5 |
1770 |
11.8 |
120.0 |
|
|
1x19x12 |
17 |
4.0 |
1770 |
18.0 |
183.0 |
|
|
1xT25x12 |
20 |
4.8 |
1930 |
30.0 |
306.0 |
|
|
1xT25x12 |
24 |
5.2 |
1930 |
35.5 |
360.0 |
We are China High Breaking Force Different Size Anti Twisting Braided Steel Wire Rope Dia 9mm 11mm 13mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
