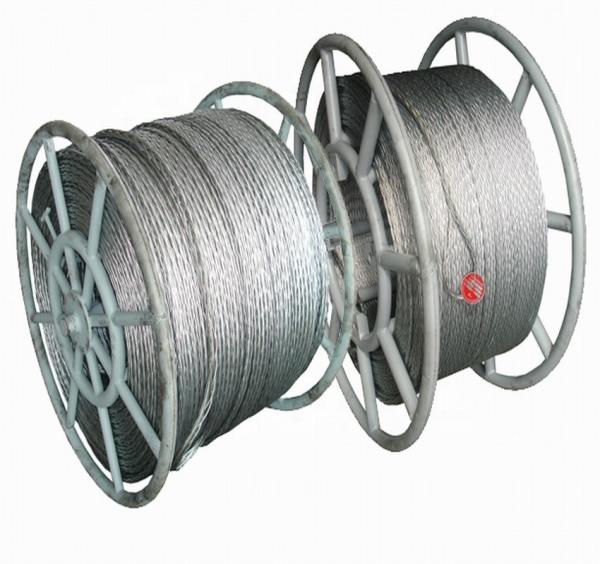

Hexagon Galvanized Cable Pulling Device Anti Twist Wire Rope Wire Rope With 6 Squares
Hexagon Galvanized Cable Pulling Device Anti Twist Wire Rope Wire Rope With 6 Squares image
Hexagon Galvanized Cable Pulling Device Anti Twisted Pilot Wire Rope With 6 Squares
Anti-Twisting Steel Wire Rope,Anti Twist Braided String Line,Non-Rotation Steel Wire Rope,Anti-Torsion Braided Wire Rope,Pilot Wire,Pilot Rope,Anti-Twist Pilot Wire,Anti-Twisting Steel Wire,Anti-Twist Rope.
Steel Wire Reel and Stand is also called cable reel cradle,drum cradle or reel stand.It is made of high strength steel tube and welded together.It has different models and different outside diameter of reel, with compact size,reasonable weight and long durability,which is easy to use and operate.
Application
Applied to mechanical pulling and tensioning release conductors, unsuitable to pulling ropes for small diameter winch.It is braided 1960MPa high-strength galvanized steel wire.Rotation resistance during pulling. Supple and disperse resistance.
The specification and length of steel can custom according to your request
Feature:
Made of high strength galvanized steel wire.It doesn't turn when it's turn round.Soft not broken strand.
Used to roll or pay off anti-twisting steel wire rope.
Item number | Structure | Diameter | Breaking Force | Weight |
18117 | 12 Strand | 9 | ≥54 | 0.3 |
18118 | 11 | ≥81 | 0.45 | |
18119 | 13 | ≥115 | 0.58 | |
18120 | 15 | ≥157 | 0.82 | |
18121 | 18 | ≥205 | 1.03 | |
18122 | 20 | ≥260 | 1.33 | |
18123 | 23 | ≥320 | 1.63 | |
18124 | 25 | ≥387 | 2.03 | |
18125 | 27 | ≥461 | 2.37 | |
18126 | 28 | ≥520 | 2.6 | |
18127 | 30 | ≥560 | 3.12 | |
18140 | 21 | ≥173 | 0.87 | |
18141 | 18 Strand | 24 | ≥236 | 1.24 |
18151 | 27 | ≥309 | 1.55 | |
18152 | 30 | ≥389 | 1.99 | |
18153 | 33 | ≥481 | 2.45 | |
18154 | 36 | ≥581 | 3.05 | |
18155 | 39 | ≥692 | 3.56 | |
18156 | 42 | ≥817 | 4.22 |
We are China Hexagon Galvanized Cable Pulling Device Anti Twist Wire Rope Wire Rope With 6 Squares manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 12 Strand Anti Twist Wire Rope, Anti Twist Wire Rope, Anti Twisting Braided Wire Rope, BW2000 Anti Twist Wire Rope
