Hexagon 12 Strands Galvanized Anti Twist Wire Rope

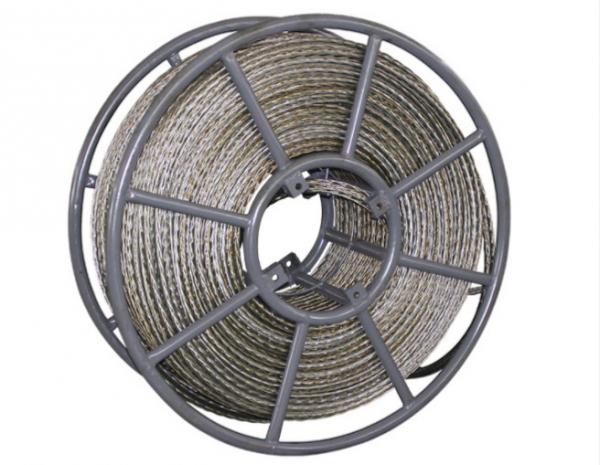

Hexagon 12 Strands Galvanized Anti Twist Wire Rope image
Brand Name :
Suntech
Model Number :
Pilot Wire
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
500m
Price :
Get The Latest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 meter per day
Delivery Time :
7-10 days after payment
Packaging Details :
Steel Reels
Application :
Overhead Line Tranmission
Material :
Steel Wire
Item :
Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope
Struction :
Hexagon With 12 Strands
Diameter :
10-30mm
Surface Treatment :
Galvanized
Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope
Application
Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope is applied to mechanical pulling and tensioning release conductors.
Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Technical Data
We adopt high quality steel rope to braide anti-twisting steel rope.It is used for pulling the conductor in the overhead transmission line.
| Item no. | Normal Diameter (mm) | Structure | Ref. Weight (kg/m) | Breakage tension(kN) | ||
| Rope structure | ||||||
| 1×19 | 1x19W | T25 T29 | ||||
| YL9-12×19 | 10 | 6 Squares 12 Strands | 0.297 | 50 | 55 | |
| YL11-12×19 | 11 | 6 Squares 12 Strands | 0.480 | 70.5 | 80 | |
| YL13-12×19 | 13 | 6 Squares 12 Strands | 0.630 | 105 | 120 | |
| YL15-12×19 | 15 | 6 Squares 12 Strands | 0.925 | 140 | 158 | |
| YL18-12×19 | 18 | 6 Squares 12 Strands | 1.150 | 185 | 210 | |
| YL20-12×19 | 20 | 6 Squares 12 Strands | 1.320 | 250 | ||
| YL22-12XT25 | 22 | 6 Squares 12 Strands | 1.822 | 320 | ||
| YL24-12xT25 | 24 | 6 Squares 12 Strands | 2.034 | 360 | ||
| YL28-12xT29 | 28 | 6 Squares 12 Strands | 2.882 | 480 | ||
| YL30-12xT29 | 30 | 6 Squares 12 Strands | 3.120 | 540 | ||
| YL20-18×19 | 20 | 6 Squares 18 Strands | 1.598 | 280 | 300 | |
| YL22-18XT25 | 22 | 6 Squares 18 Strands | 1.898 | 389 | ||
| YL24-18xT25 | 24 | 6 Squares 18 Strands | 2.162 | 440 | ||
| YL28-18xT29 | 28 | 6 Squares 18 Strands | 3.012 | 580 | ||
| YL30-18xT29 | 30 | 6 Squares 18 Strands | 3.616 | 658 | ||
| Item no. | Normal Diameter (mm) | Structure | Standard Length (m) |
Diameter of spool (mm) |
Empty spool weight (kgs) |
| YL9-12×19 | 10 | 6 Squares 12 Strands | 1000 | ||
| YL11-12×19 | 11 | 6 Squares 12 Strands | 1000 | 1100×560 | 50 |
| YL13-12×19 | 13 | 6 Squares 12 Strands | 1000 | 1100×560 | 52 |
| YL15-12×19 | 15 | 6 Squares 12 Strands | 1000 | 1250×560 | 60 |
| YL18-12×19 | 18 | 6 Squares 12 Strands | 1000 | 1400 | 74 |
| YL20-12×19 | 20 | 6 Squares 12 Strands | 1000 | 1400 | 74 |
| YL22-12XT25 | 22 | 6 Squares 12 Strands | 800 | 1400 | 74 |
| YL24-12xT25 | 24 | 6 Squares 12 Strands | 800 | ||
| YL28-12xT29 | 28 | 6 Squares 12 Strands | 500 | ||
| YL30-12xT29 | 30 | 6 Squares 12 Strands | 500 | ||
| YL20-18×19 | 20 | 6 Squares 18 Strands | 1000 | ||
| YL22-18XT25 | 22 | 6 Squares 18 Strands | 500 | ||
| YL24-18xT25 | 24 | 6 Squares 18 Strands | 500 | ||
| YL28-18xT29 | 28 | 6 Squares 18 Strands | 500 | ||
| YL30-18xT29 | 30 | 6 Squares 18 Strands | 500 |
We are China Hexagon 12 Strands Galvanized Anti Twist Wire Rope manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
