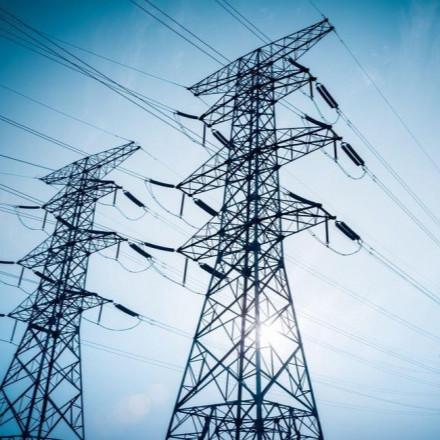

HDG Lattice Angle Steel High Voltage Electricity Pylons
HDG Lattice Angle Steel High Voltage Electricity Pylons image
Brand Name :
Suntech
Model Number :
Lattice Angle Tower
Certification :
ISO
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the latest prices
Payment Terms :
L/C, T/T
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Material :
Steel Q235B/Q345B/Q420
Color :
Designed As Customers’ Requirements
Function :
As A Frame Base Structure
Keywords :
Steel Tower, Iron Steel Tower
Application :
Electric Power Line Transmission
Usage :
For High Voltage Transmission Lines And Blow Transmission Line
110kv 132kv Galvanized Angel Steel Frame Power Tower Lattice Transmission Line Tower
Product Description
Lattice Angle Steel Towers For High Voltage Electricity Pylons
Quick Detail:
1. angle steel tower is also named as lattice tower, electrical tower;
2. angle steel tower is widely used as electrical power transmission and distribution;
3. angle steel tower is the frame structure for all kinds of power lines, especially for above 100KV high
voltage electrical powers;
| Product | Steel Structure Tower |
| Height | 5m to 100m or other height customer requirement |
| Suit for | Electric Power Distribution Transmission Steel Tower |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 |
| Q235B/A36,minimum yield strength>=235n/mm2 | |
| As well as Hot rolled coil from Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52 | |
| Strength | 2.5KN,5KN,8KN,10KN,12KN |
| Torlance of the dimenstion | -0.02 |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade I |
| The casing anti-corrosion performance | Class II |
| Working atmosphere of lighting fixture | -40 ºC~+45 ºC |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required |
| Joint of Poles | Insert mode, inner flange mode, face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160km/hour |
| Minimum yield strength | 335mpa |
| Minimum ultimate tensile strength | 400mpa |
| Max ultimate tensile strength | 620mpa |
| Standard | ISO9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | |
| We have passed flaw testing.Internal and external double welding makes the welding beautiful in shape | |
| Welding Standard : AWS ( American Welding Society ) D 1.1 | |
| Thickness | 1mm to 30mm |
| Production Process | Raw material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating , painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can follow by client required, each 40HC or OT can loading how many pics will calculation base on the client actually specification and data. |
| Style | Size and styles are variable as per customer request |
We are China HDG Lattice Angle Steel High Voltage Electricity Pylons manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
