HDG 75ft Lattice Telecommunication Steel Tower
HDG 75ft Lattice Telecommunication Steel Tower image
Brand Name :
Suntech
Model Number :
Steel Pole
Certification :
ISO
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000 Metric Ton/Metric Tons Per Year
Delivery Time :
40-45 days after deposit
Packaging Details :
Exported Containers
Material :
Tube Steel ASTM A36 A572 Gr50/S275JR S275JR.
Available :
From 9-40M Or According To Client’s Requirement
Surface Coating :
Hot Dip Galvanization Or Painting ASTM A123/ ISO 1461
Wind Speed :
0-300KM/H
Power :
10 KV ~550KV
Model :
Telecommunication Tower
Communication Steel Lattice Telecommunication Tower 75 Ft Steel Pole
Quick Detail:

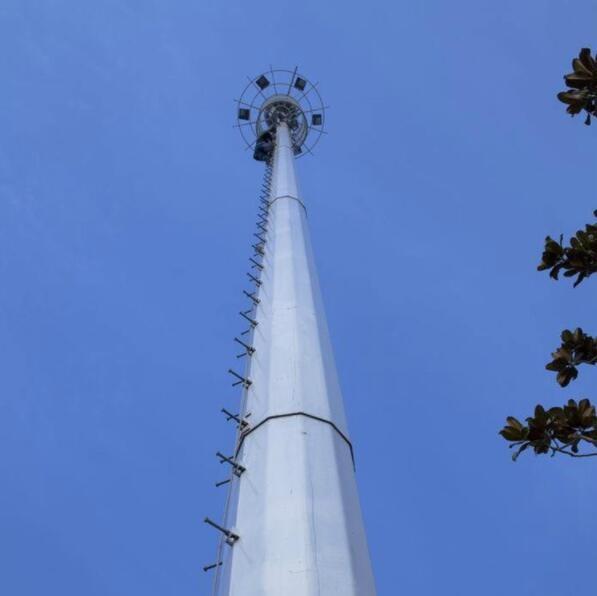

Monopole TowerMonopoles are one of the least intrusive and easiest communication towers to erect. This
fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.
As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe
capacity issues on their networks. While new technology and better wireless antennas can help, the best solution
is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more
stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles
and concealed monopoles (pine poles, flag poles, palm poles, etc…) requiring smaller footprints and being more
aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.
Monopole advantages:
Small tower footprint and foundation
Fast and easy to erect
Aesthetically pleasing
Versatile for different loading applications
With tapered monopoles becoming more popular in the wireless industry, NELLO invested in a plant that is capable
of producing thousands of poles a year. Some NELLO monopole advantages are listed below:
3. Technical Data
Design | ||
1. Design Code | TIA/EIA-222-G/F | |
Structure Steel | ||
2. Grade | Mild Steel | High Tensile Steel |
GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
ASTM A36 | ASTM A572 Gr50 | |
EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
3. Design Wind Speed | Up to 250 km/h | |
4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
5. Tension strength (Mpa) | 360~510 | 470~630 |
6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
7. Elongation (%) | 20 | 24 |
8. Impact strength KV (J) | 27(20°C)—Q235B(S235JR) | 27(20°C)—Q345B(S355JR) |
27(0°C)—Q235C(S235J0) | 27(0°C)—Q345C(S355J0) | |
27(-20°C)—Q235D(S235J2) | 27(-20°C)—Q345D(S355J2) | |
Bolts & Nuts | ||
9. Grade | Grade 4.8, 6.8, 8.8 | |
10. Standards for mechanical properties | ||
10.1 Bolts | ISO 898-1 | |
10.2 Nuts | ISO 898-2 | |
10.3 Washers | ISO 6507-1 | |
11. Standards for Dimensions | ||
11.1 Bolts | DIN7990, DIN931, DIN933 | |
11.2 Nuts | ISO4032, ISO4034 | |
11.3 Washers | DIN7989, DIN127B, ISO7091 | |
Welding | ||
12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
13. Standard | AWS D1.1 | |
Marking | ||
14. Method of marking of the members | Hydraulic Press Stamping | |
Galvanizing | ||
15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
Test | ||
17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
Capacity | ||
18. Maximum Production Capacity | 50,000 TON per annum |
We are China HDG 75ft Lattice Telecommunication Steel Tower manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
