GYXTW Outdoor Duct Aerial Armoured Fiber Optic Cable
GYXTW Outdoor Duct Aerial Armoured Fiber Optic Cable image
Brand Name :
Geto Telecom
Model Number :
GYXTW
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
Duct Aerial Armoured Fiber Optic Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-12 Cores
Application :
used for duct or aerial applications
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
Description:

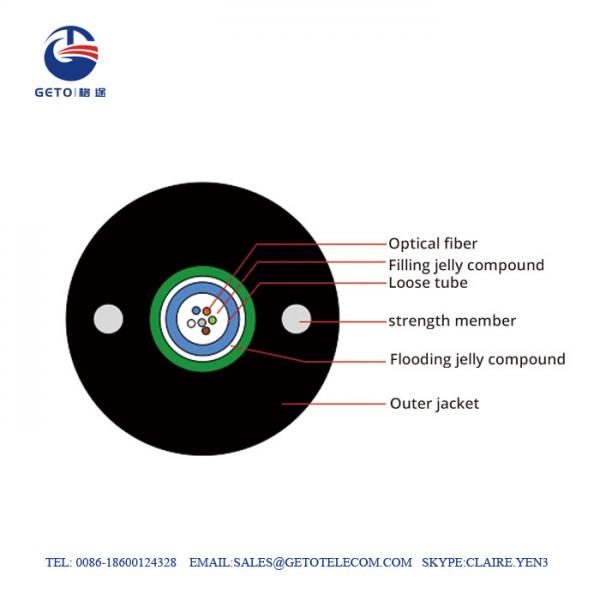

GYXTW aerial and duct fiber optic cable The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath. The central loose tube optical fiber cable GYXTW is suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network.
| Fiber count | Structure | Fibers/ tube | Loose tube diameter (mm) |
Wire diameter (mm) |
Thickness of outer jacket(mm) |
Cable diameter (mm) |
Cable Weight (kg/km) |
| 2 | Unitube | 2 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 4 | Unitube | 4 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 6 | Unitube | 6 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 8 | Unitube | 8 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 72 |
| 10 | Unitube | 10 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 73 |
| 12 | Unitube | 12 | 2.4±0.1 | 1 | 2.3±0.1 | 8.3±0.5 | 73 |
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | Natural color | |
| Armoured | Material | Plastic coated steel strip |
| Reinforced pieces | Material | Phosphating steel wire |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Tensile performance | Short term | 1500N |
| Crush | Short term | 1000N/100mm |
Specification
GYTS (loose tuber-stranding,metal strength member, flooding jelly compound, steel-polyethylene adhesive sheath)
Standards:
YD/T901-2009 outdoor layer stranded optical cable for telecommunications.
Note: 1. D refers to the cable diameter;
- The relevant technical parameters can be adjusted according to the customer’s demands.
3. The block water way can be adjusted according to the customer’s demands;
4. The design flame resistance,anti-rodent,termite resistant cable according to the customer’s demands.
