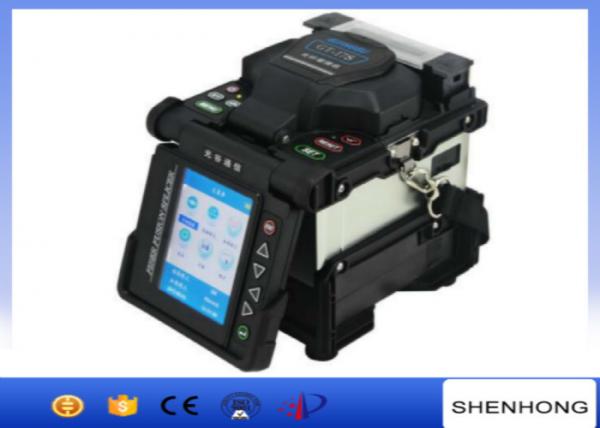

GT-17S OPGW Installation Tools Digital Fiber Optical Fusion Splicer , Fiber Optic Splicing Machine
GT-17S OPGW Installation Tools Digital Fiber Optical Fusion Splicer , Fiber Optic Splicing Machine image
Brand Name :
SHENHONG
Model Number :
GT-17S
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
cartoon
Application :
construction
Applicable fiber Type :
SM, MM, DS, NZDS, BIF/UBIF
Used :
Splicing
Return Loss :
More than 60dB
Operation :
Automatic, semi-automatic
Dimension :
135*160*150mm
GT-17S Digital Fiber Optical Fusion Splicer, Fiber Optic Splicing Machine
Application
It is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology.
The new imaging system, and all the digital processing technologies, are more clearly visible.The built-in large-capacity lithium battery provides stronger guarantee for long-term field work
Features
(1) Hardness: The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
(2) Fast: 9s fast splicing , 28s fast heating.
(3 )Long lifetime : 1group batteries. 250 fiber splicing .
(4) Convenience: convenient for maintenance
(5) Visible: Fiber amplification factor 300 times
Technical data of GT-17S Digital Fiber Optical Fusion Splicer, Fiber Optic Splicing Machine
Applicable fiber Type | SM, MM, DS, NZDS, BIF/UBIF |
Optical fiber alignment | Fiber core alignment, the foreskin alignment |
Applicable diber diameter | Cladding diameter of 80-150μm, coating diameter 100-1000μm |
Cutting length |
8-16mm(Covered fiber diameter<250μm) 16mm(Covered fiber diameter250-1000μm) |
Splice Mode | 100 sets of fusion modes, Factory default 9 sets |
Average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04Db(NZDS) |
Return Loss | More than 60dB |
Connecting time | 9sec (typical time) |
Operation | Automatic, semi-automatic |
Tensile test | 2N |
Screen | 3.7inch 640*480, TFT LCD panel |
Optical magnification | X/Y:150 times, X,or Y: 300 times |
Power Supply | lithium battery, 13.5V/5A power adapter |
Battery |
Typical Operating 220(splice/ heat shrink/thermal stripping) on a single charge 3h, can be resued 500 times |
Maximum storage | 5000 set of the latest record storage |
Data interface | USB2.0 |
Operating environment | Altitude 0~5000m, 0 to 95% relative humidity. Temperature -10 ℃ ~50 ℃, |
Weight | 1.8kgs (without battery), 2.3kgs(including battery) |
Size | 135*160*150mm |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China GT-17S OPGW Installation Tools Digital Fiber Optical Fusion Splicer , Fiber Optic Splicing Machine manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
