GJYXFCH/GJYXCH FTTH Drop Cable ftth optical fiber cable
GJYXFCH/GJYXCH FTTH Drop Cable ftth optical fiber cable image
Brand Name :
Geto Telecom
Model Number :
GJYXFCH/GJYXCH
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
FTTH Optic Fiber Cable FTTH Fiber Optic Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
Description

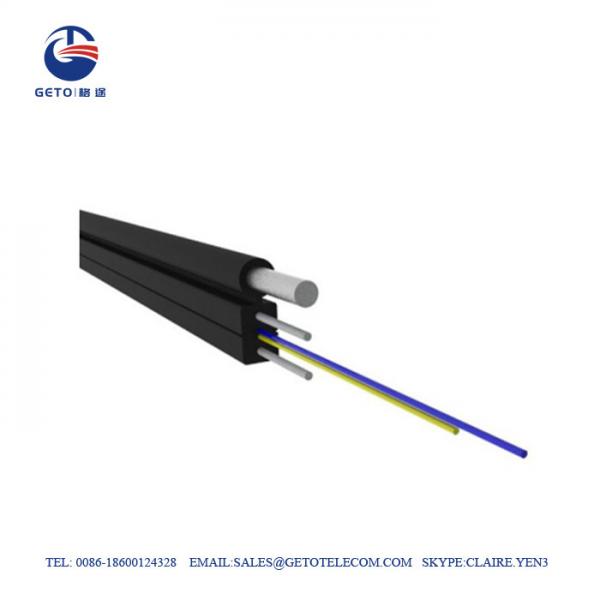

GJYXFCH/GJYXCH The optical fiber unit of FTTH outdoor fiber optic cable is positioned in the center of two strength member which composited with parallel steel wires or FRP, with a load-bearing steel wire or FRP in the center of cable, and completed with a black or colored LSZH for out sheath.
Characteristics
· Good mechanical and environmental characteristics;
· Flame retardant characteristics meet the requirements of relevant standards;
· The mechanical characteristics of jacket meet the requirements of relevant standards;
· Soft, flexible, easy to lay and splice, and with big capacity data transmission;
· Meet various requirements of market and clients.
Specification
| Item | Parameters | |||
| Fiber | Color | Natural color | All colors display | |
| Number of cores | 1 | 2 | 4 | |
|
Strength member |
Material | Phosphating steel wire | ||
| Diameter (mm) | 0.45 | |||
| Outer jacket | Material | LSZH Oxygen index≥25%) | ||
| Color | White | |||
| Cable diameter(mm) | 2.0±0.1*3.0±0.1 | |||
|
Min. bending radius |
Static | 15mm | ||
| Dynamic | 30mm | |||
| Tensile performance | Short term | 200N | ||
|
Crush |
Short term | 2200N/100mm | ||
Our service
1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
Contact us
Email: [email protected]
Whatsapp/Tel: 86-18600124328
Web: www.getotelecom.com
Company
We are China GJYXFCH/GJYXCH FTTH Drop Cable ftth optical fiber cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Fiber Optic CableSimilar Or Related
-
2 Cores OM4 Armored Fiber Optic Cable Single Mode , Single Mode Optical Fiber Cable
-
GJFJV Fiber Optic Indoor Cable Tight Buffer Duplex Flat Cord 5 KN/M Crush Resistance
-
Breakout Tight Buffered Fiber Optic Cable 2 – 24 Fiber Count PVC / LSZH Jacket GJPFJV
-

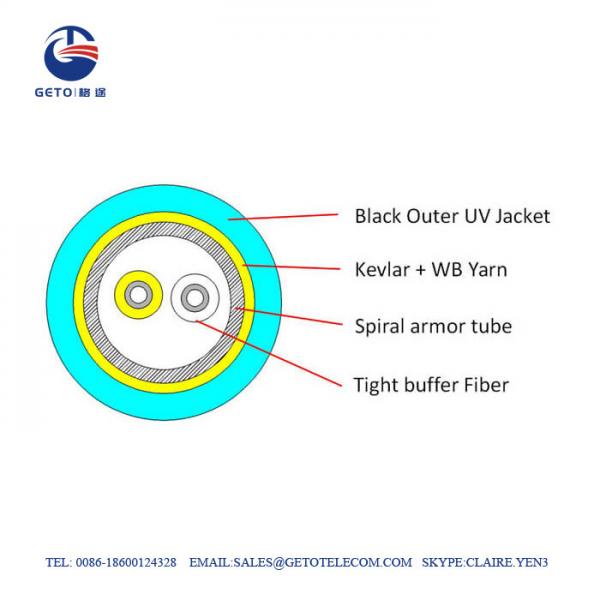

Plenum Armored Spiral Steel Adss Om3 Distribution Cable
