GB311.1-6 Permanent Magnet 12KV Mini Auto Circuit Breaker

 China GB311.1-6 Permanent Magnet 12KV Mini Auto Circuit Breaker supplier

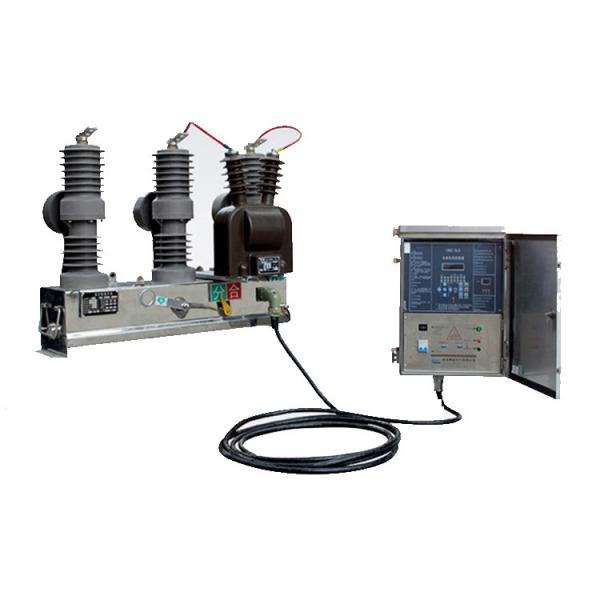

GB311.1-6 Permanent Magnet 12KV Mini Auto Circuit Breaker image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
ZW32-12M

Certification :
ISO

Place of Origin :
Ningbo,China

MOQ :
1 PCS

Price :
Get the lastest price

Payment Terms :
L/C , T/T, Western Union

Supply Ability :
60000 pcs per month

Delivery Time :
25 days after Payment

Packaging Details :
Exported Wooden Case

Name :
Voltage Permanent Magnet Circuit Breaker

Poles Number :
3

Altitude :
≤2000m

Ambient temperature :
-40°C-+45°C

Wind speed :
34m/s

Ambient pllution :
IV

High Voltage Permanent Magnet 12KV Mini Auto Circuit Breaker

ZW32M-12 type outdoor high voltage vacuum circuit breaker is rated voltage 12kv, three-phase AC 50Hz outdoor distribution equipment,which is mainly used for breaking, closing power system load current, overload current, short-circuit current. For substation and industrial and mining enterprises distribution system for the protection and control of the role and place of rural power grids frequent operation.

The circuit breaker has small size, light weight, anti-condensation, maintenance-free characteristics, can adapt to poor weather conditions and dity environments.

The models with permanent magnet operating mechanism operates; since the permanent action energy operating mechanism provided by a permanent magnet, the switch quickly to keep the points off position, a small number of mechanical parts, mechanical transmission chain is short, thus greatly improving the switch rlibility and mechanical life.

Name Unit Data
Rated voltage KV 12
Rated power frequency Hz 50
Rated current KA 630/1250
Rated short-circuit breaking current KA 20/25
Rated withstand current(peak) KA 50/63
4s Rated short-time withstand current(4s) KA 20/25
Rated short-circuit making current(peak) KA 50/63
Mechanical life Secondary 10000
Rated short-circuit breaking time Secondary 30

Power frequency withstand voltage

(1min) 🙁 wet) (dry) white, rightfracture

KV 42/48

Lighting impulse withstand votage

(peak) and white, right fracture

KV 75/85

Secondary circuit 1min power

frequency withstand voltage

KV 2

Standard

1. GB1984 "AC high voltage circuit breakers"

2. GB1102 "nigh-oltage switch and control equipment standards common technical requirements"

3. GB311.1-6 "insulated high voltage transmission and distribution equipment."

4. GB763 "AC high voltage electrical work in long-term fever"

5. GB2706 "AC high voltage electrical dynamic and thermal stability test methods"

6. GB3309 "high voltage switch at room temperature mechanical test"

7. DL / T593 "common ordering technology high voltage switch"

Ambient condition

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3. The ambient air can be contaminated dust, smoke, corrosive gases, vapors or salt spray

4. The wind speed does not exceed 34m / s (equivalent to 700pa on the cylindrical surface)

5. Ambient pllution: IV

6. Vibration or earth from the switch and control equipment at the Ministry is negligible

We are China GB311.1-6 Permanent Magnet 12KV Mini Auto Circuit Breaker manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
