Galvanized Zinc Coated Steel Wire For Spring Wire , ACSR Conductor , Wire Rope
Galvanized Zinc Coated Steel Wire For Spring Wire , ACSR Conductor , Wire Rope image
Brand Name :
Global
Model Number :
GS-1025-3
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
600tons/day

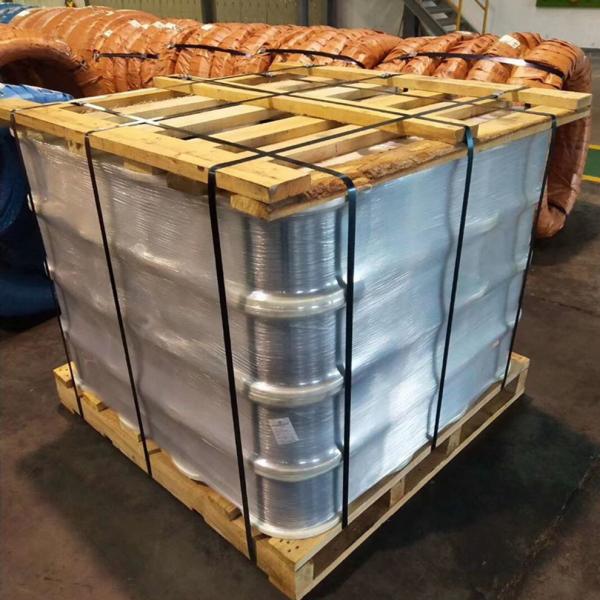

Packaging Details :
standard export packing in coil or on reel
Material :
High Carbon Wire Rod
Surface treatment :
Hot-dipped Galvanized
Size :
0.2mm-5.0mm
Structure :
1×2,1×3,1×7,1×12,1×19
Packing :
In coil or on reel
Galvanized steel wire for spring wire,ACSR Conductor,wire rope
Specification
Galvanized Steel Wire as per ASTM B 498
| Wire Diamater(mm) | Diamater Tolerance(mm) | Weight of Zinc-coating(g/m2) | Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
| 1.57-1.90 | +0.04,-0.03 | 210 | 1310 | 1450 | 3.0 |
| Over 1.9-2.3 | +0.04,-0.03 | 220 | 1310 | 1450 | 3.0 |
| Over 2.3-2.7 | +0.05,-0.05 | 230 | 1280 | 1410 | 3.5 |
| Over 2.7-3.1 | +0.05,-0.05 | 240 | 1280 | 1410 | 3.5 |
| Over3.1-3.5 | +0.08,-0.05 | 260 | 1240 | 1410 | 4.0 |
| Over 3.5-3.9 | +0.08,-0.05 | 270 | 1240 | 1410 | 4.0 |
| Over 3.9-4.5 | +0.1,-0.08 | 275 | 1170 | 1380 | 4.0 |
| Over 4.5-4.8 | +0.1,-0.08 | 300 | 1170 | 1380 | 4.0 |
Product Range
Our Galvanized Steel Wire &Strand include:
.Main Single Wire Size:1.0mm-4.8mm
.Structure of Strand:1*7 &1*19
.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.
.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc
We are China Galvanized Zinc Coated Steel Wire For Spring Wire , ACSR Conductor , Wire Rope manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
