Galvanized Steel Wires Strands Used to Fix and Tie Hanging System and Communication Cable
Galvanized Steel Wires Strands Used to Fix and Tie Hanging System and Communication Cable image
Brand Name :
Litong Global
Model Number :
LT-170119(1)
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
US$1-1000/ton
Supply Ability :
400tons/day
Packaging Details :

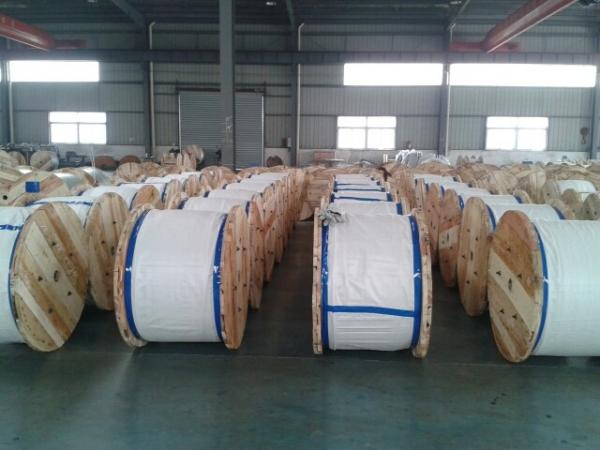

Standard export seaworthy packing in coil or on drum
Standard :
AISI, ASTM, DIN, EN, GB, JIS
Surface :
hot dipped galvanized
Standard :
ASTM A475 , ASTM B498 ,BS183 BS443 ,IEC ,GB , ASTM A363
Application :
Galvanized steel wire strand /guy wire /stay wire is used for ACSR Core , pulling pole ,overhead conductor, Messenger wire ,Static wire,Guy wire,Guide rail cable
Specification :
galvanized steel wire strand /steel strand wire /guy wire /stay wire
Loading Capacity :
25tons/20″
Galvanized Steel Wires Strands Used to Fix and Tie Hanging System and Communication Cable
(1)Production capacity:400ton/day
(2)MOQ:1000kg
(3)Delivery:5~15 Working days.
(4)Standards:IEC,ASTM,DIN,BS; or according to customers' requirements.
GSW (Galvanized Steel Wire)
1. Standards
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
BS183: Specification for General Purpose Galvanized Steel Wire Strand
BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
IEC 60888: Zinc-coated steel wires for stranded conductors
DIN 48200: Wires for stranded conductors
JIS G 3537: Zinc-coated steel wire strands
AS 1222.1: Steel conductors and stays-Bare overhead
2.Technical Data
Hot-Dipped Galvanized steel wire
Diameter:1.24~5.50mm
Zinc Coating:150-400g/m2 ASTM class A. class B.
Tensile Strength:900-1720 mpa.
Intensity Level:General,High,Very High.
Min.No. of 360° twists:10~16.
Construction:1×3,1×7,1×19.
| Galvanized Steel Wire Strand ASTM A-475 | ||||||
| Number of Wire(Dia.) |
Approx.Strand Dia. |
Siemem Martin Grade | High Strength Grade |
Extra-high Strength Grade |
Approx.Weight |
|
| Inch | mm | KN | KN | KN | kg/km | |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | – | – | – | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | – | – | – | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | – | – | – | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| 19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
| 37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 |
| 37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 |
| 37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 |
| 3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
| 3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
| 3/3.05 | 1/4 | 6.35 | – | – | – | 174 |
| 3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
| 3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
| 3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
| 7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.18 | 49 |
| 7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
| 7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
| 7/1.65 | 3/16 | 4.76 | – | – | – | 118 |
| 7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
| 7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
| 7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
| 7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
| 7/2.77 | 5/16 | 7.94 | – | – | – | 335 |
| 7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
| 7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
| 7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
| 7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
| 7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
| 19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
| 19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
| 19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
| 19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
| 19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
| Galvanized Steel Wire Strand BS183:1972 | |||||||||
|
Number of Wires/Dia. |
Approx.Strand Dia. |
Minimum Breaking Load of Strand |
Approx Weight |
||||||
| Grade 350 | Grade 480 | Grade 700 | Grade 850 | Grade 1000 | Grade 1150 | Grade 1300 | |||
| mm | kN | kN | kN | kN | kN | kN | kN | Kg/km | |
| 3/1.80 | 3.9 | 2.65 | 3.66 | – | – | – | – | – | 60 |
| 3/2.65 | 5.7 | 5.8 | 7.95 | – | – | – | – | – | 130 |
| 3/3.25 | 7 | 8.7 | 11.95 | – | – | – | – | – | 195 |
| 3/4.00 | 8.6 | 13.2 | 18.1 | – | – | – | – | – | 295 |
| 4/1.80 | 4.4 | 3.55 | 4.9 | – | – | – | – | – | 80 |
| 4/2.65 | 6.4 | 7.7 | 10.6 | – | – | – | – | – | 172 |
| 4/3.25 | 7.9 | 11.6 | 15.9 | – | – | – | – | – | 260 |
| 4/4.00 | 9.7 | 17.6 | 24.1 | 35.2 | – | – | – | – | 390 |
| 5/1.50 | 4.1 | 3.1 | 4.24 | 6.18 | – | – | – | – | 69 |
| 5/1.80 | 4.9 | 4.45 | 6.1 | 8.9 | – | – | – | – | 95 |
| 5/2.65 | 7.2 | 9.65 | 13.25 | 19.3 | – | – | – | – | 220 |
| 5/3.25 | 8.8 | 14.5 | 19.9 | 29 | – | – | – | – | 320 |
| 5/4.00 | 10.8 | 22 | 30.15 | 43.95 | – | – | – | – | 490 |
| 7/0.56 | 1.7 | 0.6 | 0.83 | 1.2 | – | 1.7 | 1.98 | 2.24 | 14 |
| 7/0.71 | 2.1 | 0.97 | 1.33 | 1.94 | – | 2.75 | 3.19 | 3.6 | 28 |
| 7/0.85 | 2.6 | 1.39 | 1.9 | 2.8 | – | 3.95 | 4.57 | 5.15 | 31 |
| 7/0.90 | 2.7 | 1.55 | 2.14 | 3..1 | – | 4.45 | 5.12 | 5.8 | 35 |
| 7/1.00 | 3 | 1.92 | 2.64 | 3.85 | – | 5.5 | 6.32 | 7.15 | 43 |
| 7/1.25 | 3.8 | 3.01 | 4.1 | 6 | – | 8.55 | 9.88 | 11.15 | 67 |
| 7/1.40 | 4.2 | 3.75 | 5.17 | 7.54 | 9.16 | 10.75 | 12.35 | 14 | 84 |
| 7/1.60 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | – | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | – | 22 | 25.3 | 28.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | – | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | – | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | – | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | – | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | – | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | – | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.00 | 12 | 30.9 | 42.2 | 61.6 | – | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.5 | – | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | – | 124 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5 | 5.22 | 7.16 | 10.45 | – | 14.92 | 17.16 | 19.4 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | – | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7 | 10.24 | 14.04 | 20.47 | – | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8 | 13.37 | 18.35 | 26.75 | – | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10 | 20.9 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.6 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 | 1870 |
| 19/4.75 | 23.8 | 117.85 | 161.4 | 235.7 | 286 | 336.7 | 387.2 | 437.7 | 2630 |
| 7/1.60 | 4.8 | 4.9 | 6.75 | 9.85 | 11.95 | 14.1 | 16.2 | 18.3 | 110 |
| 7/1.80 | 5.4 | 6.23 | 8.55 | 12.45 | – | 17.8 | 20.5 | 23.2 | 140 |
| 7/2.00 | 6 | 7.7 | 10.55 | 15.4 | – | 22 | 25.3 | 28.6 | 170 |
| 7/2.36 | 7.1 | 10.7 | 14.7 | 21.4 | – | 30.6 | 35.2 | 39.8 | 240 |
| 7/2.65 | 8 | 13.5 | 18.5 | 27 | – | 38.6 | 44.4 | 50.2 | 300 |
| 7/3.00 | 9 | 17.3 | 23.75 | 34.65 | – | 49.5 | 56.9 | 64.3 | 392 |
| 7/3.15 | 9.5 | 19.1 | 26.2 | 38.2 | – | 54.55 | 62.75 | 70.9 | 430 |
| 7/3.25 | 9.8 | 20.3 | 27.85 | 40.65 | – | 58.05 | 66.8 | 75.5 | 460 |
| 7/3.65 | 11 | 25.6 | 35.15 | 51.25 | – | 73.25 | 84.2 | 95.2 | 570 |
| 7/4.00 | 12 | 30.9 | 42.2 | 61.6 | – | 88 | 101 | 114 | 690 |
| 7/4.25 | 12.8 | 34.75 | 47.65 | 69.5 | – | 99.3 | 114 | 129 | 780 |
| 7/4.75 | 14 | 43.4 | 59.45 | 86.8 | – | 124 | 142.7 | 161.3 | 970 |
| 19/1.00 | 5 | 5.22 | 7.16 | 10.45 | – | 14.92 | 17.16 | 19.4 | 120 |
| 19/1.25 | 6.3 | 8.16 | 11.19 | 16.32 | – | 23.32 | 26.81 | 30.31 | 180 |
| 19/1.40 | 7 | 10.24 | 14.04 | 20.47 | – | 29.25 | 33.64 | 38.02 | 230 |
| 19/1.60 | 8 | 13.37 | 18.35 | 26.75 | – | 38.2 | 43.93 | 49.66 | 300 |
| 19/2.00 | 10 | 20.9 | 28.65 | 41.78 | 50.74 | 59.69 | 68.64 | 77.6 | 470 |
| 19/2.50 | 12.5 | 32.65 | 44.8 | 65.29 | 79.28 | 93.27 | 107.3 | 121.3 | 730 |
| 19/3.00 | 15 | 47 | 64.5 | 94 | 114.1 | 134.3 | 154.5 | 174.6 | 1050 |
| 19/3.55 | 17.8 | 65.8 | 90.27 | 131.6 | 159.9 | 188 | 216.3 | 244.5 | 1470 |
| 19/4.00 | 20 | 83.55 | 114.6 | 167.1 | 203 | 238.7 | 274.6 | 310.4 | 1870 |
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC
