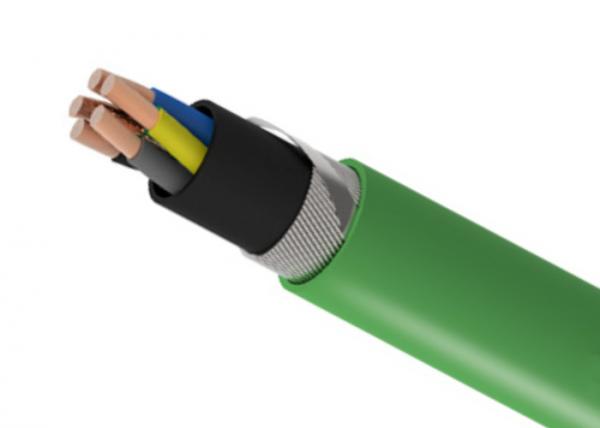

Galvanized Steel Wires 10mm 16mm 25mm 5 Core Armoured XLPE Cable image

Get a Quote Email to us

Brand Name :
OEM

Certification :
ISO/RoHS/CE

Place of Origin :
china

MOQ :
200 meters

Packaging Details :
wooden drum

Conductor :
Class 5 flexible copper conductor

Insulation :
XLPE

Bedding Layer :
Halogen-free thermoplastic polyolefin

Armour :
Galvanized steel wires

Sheath :
Halogen-free thermoplastic polyolefin

cross-sectional diameter :
10/16/25mm

Price :
Negotiable

Delivery Time :
5-15day

Payment Terms :
L/C, T/T

Supply Ability :
50000meters per week

Galvanized Steel Wires 10mm 16mm 25mm 5 Core Armoured XLPE Cable

APPLICATION:
The armoured, halogen-free properties of this cable make it ideal for installations in public areas, hazardous areas and installations in general where the cable is subject to risk of mechanical aggresion

CONSTRUCTION:
Conductor
Class 5 flexible copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding Layer
Halogen-free thermoplastic polyolefin
Armour
Galvanized steel wires
Sheath
Halogen-free thermoplastic polyolefin
CHARACTERISTICS
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
-40oC to +90oC
Sheath Colour
Green

DIMENSIONS

NO. OF
CORES

NOMINAL CROSS
SECTIONAL AREA
mm²

DIAMETER UNDER
ARMOUR
mm

NOMINAL OVERALL
DIAMETER
mm

NOMINAL
WEIGHT
kg/km

MINIMUM BENDING
RADIUS
mm

2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5

5
5
5
5
5
5
5
5

1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
1.5
2.5
4

6
10
16
25
35
50
70
95

7.6
8.4
9.5
10.6
12.5
14.5
17.8
20
19.4
23.2
25.8
29.2
32.4
35.6
41.1
8
8.9
10.1
11.3
13.3
15.5
19.1
21.7
23.3
27.5
30.6
34.4
38.5
42.5
48.7
8.9
9.9
11.2
12.5
14.8
17.3
21.3
24
25.7
30.4
33.9
38.6
42.8
47.1
54.2
9.8
10.9
12.4

13.9
16.5
19.2
23.8
26.8
31.3
37.1
41.6

12.5
13.3
14.4
15.5
18.1
20.1
24.2
26.4
26.1
29.9
33.6
37.4
40.9
45.4
51.4
13
13.9
15
16.2
18.9
21.1
25.6
28.2
30.9
35.2
38.8
42.9
48.3
52.7
59.4
14
15
16.3
18.3
20.6
23.7
27.8
30.8
33.4
38.6
42.3
48.4
53
57.7
65.2
14.9
16.7
18.2

19.7
22.8
25.6
30.6
33.7
39.3
45.6
51.5

290
335
400
480
720
920
1370
1680
1835
2420
3175
3920
4680
5900
7485
320
375
450
545
830
1075
1640
2050
2580
3365
4170
5070
6530
7735
9780
365
435
530
735
990
1405
1960
2480
3175
4235
5245
6900
8295
9850
12560
415
570
705

850
1265
1665
2340
2970
4180
5580
7390

125
135
145
155
185
205
245
265
265
300
340
375
410
455
515
130
140
150
165
190
215
255
285
310
355
390
430
485
530
595
140
150
165
185
210
240
280
310
335
390
425
485
530
580
655
150
170
185
200
230
260
310
340
395
460
515

CONDUCTORS

NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
NOMINAL CROSS SECTIONAL AREA mm²	MAXIMUM DIAMETER OF WIRES IN CONDUCTOR mm	Plain Wires ohms/km
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240	0.26 0.26 0.31 0.31 0.41 0.41 0.41 0.41 0.41 0.51 0.51 0.51 0.51 0.51 0.51	13.3 7.98 4.95 3.3 1.91 1.21 0.78 0.554 0.386 0.272 0.206 0.161 0.129 0.106 0.080

ELECTRICAL CHARACTERISTICS

NOMINAL CROSS SECTIONAL AREA mm²	CURRENT CARRYING CAPACITY				VOLTAGE DROP V/A/km
	2 Core Cables		3, 4 and 5 Core Cables		Cos Ɵ 0.8	Cos Ɵ 1
	In Air at 40°C Amps	In Ground at 25°C Amps	In Air at 40°C Amps	In Ground at 25°C Amps
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240	24 33 45 57 79 105 123 154 188 244 296 348 404 464 552	27 36 46 58 77 100 128 154 183 224 265 302 342 383 442	20 26 36 46 65 87 110 137 167 214 259 301 353 391 468	23 30 38 48 64 82 106 129 152 187 222 253 286 320 370	23.61 14.2 8.839 5.919 3.458 2.218 1.458 1.057 0.759 0.556 0.438 0.358 0.302 0.262 0.215	29.374 17.62 10.93 7.288 4.218 2.672 1.723 1.224 0.852 0.601 0.455 0.356 0.285 0.234 0.177

We are China Galvanized Steel Wires 10mm 16mm 25mm 5 Core Armoured XLPE Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
