Galvanized Monopole Steel Tower With Aviation Lights Electrical Telecommunication Paint Towers

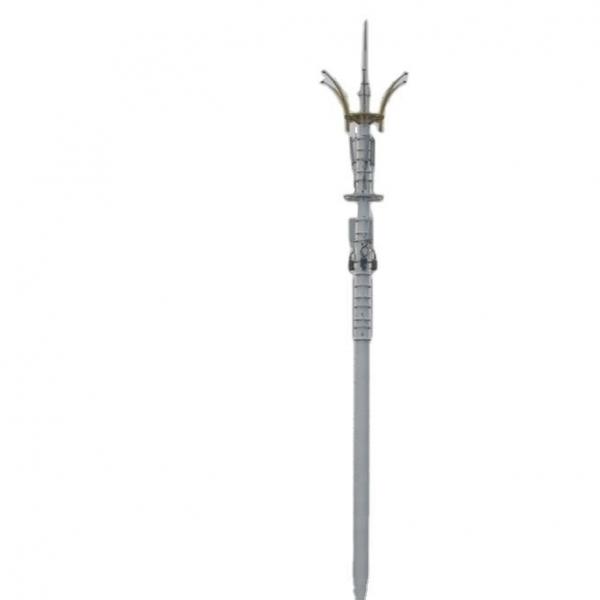

Galvanized Monopole Steel Tower With Aviation Lights Electrical Telecommunication Paint Towers image
Brand Name :
Suntech Tower
Model Number :
Telecommunication Paint Towers
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after payment
Packaging Details :
Exported Containers
Product Name :
Telecommunication Paint Towers
Material List :
Steel Q355 & Q245
Height :
0-80m
Surface Treatment :
Hot Dip Galvanized
Wind Speed :
110~160km/h_3 second gust
Application :
Telecom Tower
Galvanized Monopole Steel Tower With Aviation Lights Electrical Telecommunication Paint Towers
Quick Detail:
Monopole Tower are one of the least intrusive and easiest communication towers to erect. This
fact has led to them quickly becoming one of the most popular structures in the wireless communication industry.
As consumer demand for data on wireless devices continues to skyrocket, wireless carriers are faced with severe
capacity issues on their networks. While new technology and better wireless antennas can help, the best solution
is to add additional towers. However, adding towers in urban areas has become difficult in recent years as more
stringent zoning laws and lack of available land make the process longer and more expensive. Due to monopoles
and concealed monopoles (pine poles, flag poles, palm poles, etc.Requiring smaller footprints and being more
aesthetically pleasing, wireless carriers have increasingly turned to these structures to deploy in populated areas.
Transmission Line Steel Tower & Substation Structure- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code |
1. Chinese National Standard: |
| 2 | Design Software | PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc |
| 3 | Design Loading | As per requirement and specification by Clients worldwide. |
| 4 | Load test/destructive test | We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing. |
| 5 | Voltage | 33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line |
| 6 | Hot-dip galvanization | ISO 1461-2009, ASTM A123 |
| 7 | Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 |
| 8 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard |
| 9 | Tower Type | Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower |
| 10 | Tower Type | Suspension Tower, Tension Tower, Dead Tower, Substation Structure |
| 11 | Warranty | Tower structures: 10 years |
| 12 | Return Period | 50 Years |
| 13 | Transportation | We are very close to the biggest port in the world which is our advantage for sea transportation. |
| 14 | Quality Control |
Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality |
Product Name: 5G Cell Monopole Tower for Telecommunication Industry
Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components,
and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission
and transmission.Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles
Cell Phone Radios Monopole TowerContainer bag for Connection Bolts.
Self-Supporting Towers are appropriate for nearly all wireless communication applications. Self-Supporting Towers
are typically three or four sided lattice type structures made from solid rod, pipe, or angle. Self-supporting Towers
are ideal for installations where space requirements are limited.
We are China Galvanized Monopole Steel Tower With Aviation Lights Electrical Telecommunication Paint Towers manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
