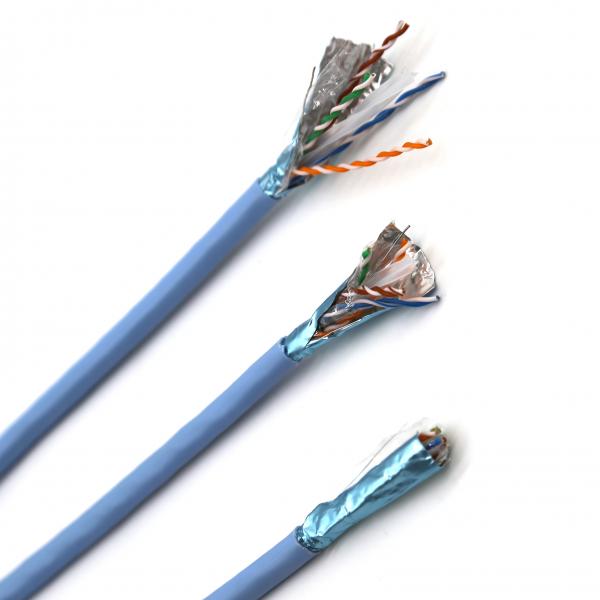

FTP CAT6A OFC conductor ethernet cable 500MHZ 10gbps flexible network cable

FTP CAT6A OFC conductor ethernet cable 500MHZ 10gbps flexible network cable image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
Lan cable-5

Certification :
RoHS/CE/CCC/CB

Place of Origin :
SHENZHEN CHINA

MOQ :
10 boxs

Price :
Negotiable

Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :
100000m/day

Delivery Time :
3-5 day

Packaging Details :
305m/easy pull box

Conductor :
OFC/BC

Insulation :
HDPE

Jacket :
PVC

Type :
FTP

Color :
Blue

Shielded :
Aluminum foil

FTP CAT6A OFC conductor ethernet cable 500MHZ 10gbps flexible network cable

1. Production Application

A very high performance data cable designed for transmission

speeds of up to 10GB per second. These cables allow the use

of protocols supported by class EA for the implementation of

10G Base-T. Cat 6A cables support frequency ranges up to

500MHz compatible with PoE & PoE+. For installations where

fire, smoke emissions and toxic fumes create a potential risk to

life and equipment.

2. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

3.Construction

AWG (Gauge)	23AWG
Conductor Material	OFC
Length	100m/305m/500m
Shiled	FTP
Jacket Material	PVC
Color	Blue Or Grey Or Customized
Certification	CE/ROHS/CB/ISO900
Fire rating	CMR,CM.BS
Operating temperatur	-20°C to +60°C
Application	Network system,PC,ADSL,network Module Plate,Wall Socket,Communication cable,etc

4.CHARACTERISTICS

High purity oxygen free copper
Imported ultra low dielectric constant polyethylene insulation
Flame retardant, environmentally friendly, corrosion resistant, oil resistant PVC sheath

Temperature Rating

Fixed: -20°C to +60°C

Minimum Bending Radius

8 x overall diameter

5.ELECTRICAL CHARACTERISTICS AT 20°C

DELAY SHEW ≤ 45 ns/100m

VELOCITY OF PROPAGATION 68 %

MAXIMUM UNBALANCED-TO-GROUND CAPACITANCE 330 pf/100m

MAXIMUM DC RESISTANCE 9.38 ohms/100m

MAXIMUM DC CONDUCTOR RESISTANCE UNBALANCE 2 %

Lead time:

Quantity(box)	10	100
EST.time(day)	3-5	5-15

Product Describe:

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Email: [email protected]

Website: Http://www.sz-hy.cn
Website on alibaba.com: sz-jhy.en.alibaba.com

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

We are China FTP CAT6A OFC conductor ethernet cable 500MHZ 10gbps flexible network cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

FTP CAT6A OFC conductor ethernet cable 500MHZ 10gbps flexible network cable
