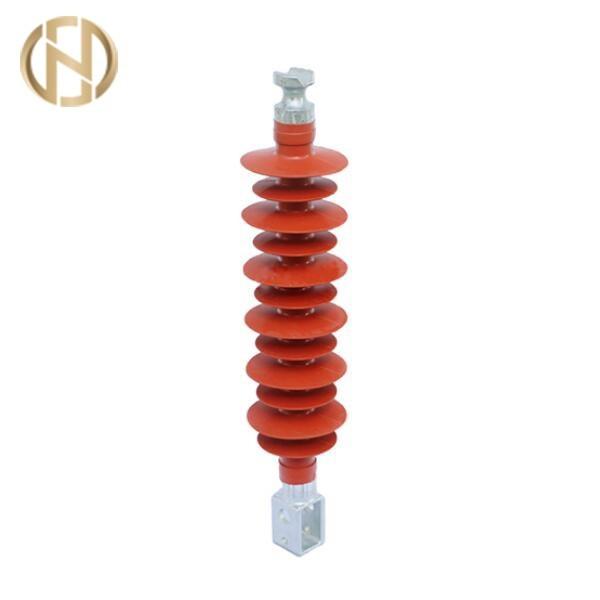

FSP 35-220kV Composite windproof deviation insulator pole accessories

FSP 35-220kV Composite windproof deviation insulator pole accessories

Description:

35kV, 66kV, 110kV, 220kV windproof deviation composite series products are suitable for high-voltage line hard jumper, can effectively prevent the jumper wind deviation, the wire dances with the wind, to ensure the insulation distance between the phase and ground, also called hard jump Wire insulator

Eliminate the phenomenon of line trip due to jumper, wire arc burn, strand break, wire break and so on. It solves the important hidden dangers of the wire galloping in the wind threatening the safety and stable operation of the overhead transmission line.

Features:

The product can be replaced with a suspension insulator that runs on the hard jumper in the line. A variety of connection fittings with the tower can be selected by the user, and a special specification of the tower connection fitting can be customized for the user. Installation is quick and convenient.

Windproof deviation equalizing ring corresponding model:

Installation:

1. The windproof and partial composite insulators should be handled gently during transportation and installation to avoid collision and friction with miscellaneous pieces and sharp objects.

2. When lifting, the knot should be hit on the end attachment. It is strictly forbidden to hit the umbrella skirt or sheath. When the rope must touch the umbrella skirt and the sheath part, it should be wrapped with soft cloth in the contact part;

3. The windproof partial composite insulator should not be used as an auxiliary tool for the discharge (receiving) line, so as not to damage the insulator due to impact or bending moment;

4. It is strictly forbidden to step on the insulator umbrella skirt;

5. When installing the equalizing ring, make the ring perpendicular to the axis of the insulator. For the open type equalizing ring, pay attention to the same direction of opening at both ends to facilitate discharge and protect the umbrella skirt;
