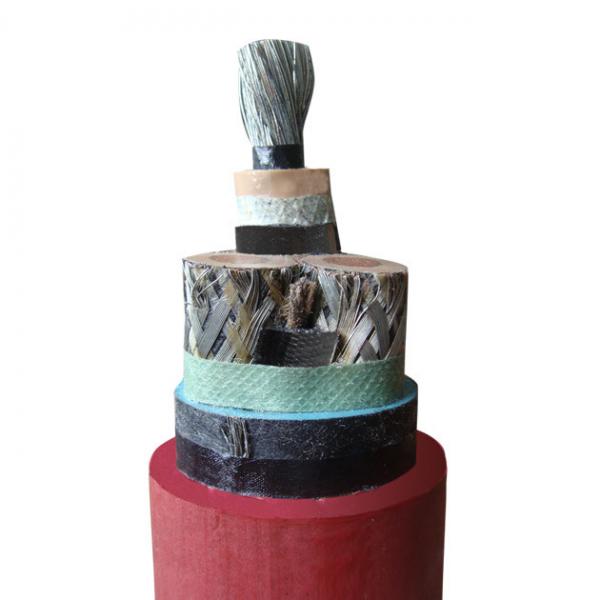

FR-Marine Ship Board Wiring 0.6/1kV Rubber Sheathed Cable with Tinned Copper Braiding
FR-Marine Ship Board Wiring 0.6/1kV Rubber Sheathed Cable with Tinned Copper Braiding image
Brand Name :
SHAN CABLE
Model Number :
MCP
Certification :
CE ROHS
Place of Origin :
CHINA
MOQ :
500M
Price :
0.99USD/M-50USD/M
Supply Ability :
10KM per month
Delivery Time :
30 days
Packaging Details :
Wooden Drum
Conductor :
TC wires
Insulation :
Neoprene Rubber
Braiding :
TC wires
Sheath :
CPE
Application :
Mining
Core :
1.2.3.4.5
FR-Marine Ship Board Wiring 0.6/1kV Rubber Cable with Tinned Copper Braiding
1 Brief introduction
The company have been approved by the Classification of Ship of China (CCS) in 2001and have been approved for rated voltage 1KV and 3KV,6-15KV power cable, rated voltage 150/250V control and instrumentation circuit cable by DEE NORSKE VERITAS CALSSIFICATION (DNV) in 2004.We have acquired Type Approval Certificate. Our shipboard cable cover 2 series altogether over 3000tyoe and dimensions that are extensively used in ship’ power, communication, navigation system and modern warship. The products can also use in oil platform, nuclear power, crane, skyscraper and other electric project.
2 Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
3 Type and Name
Part one: Shipboard power cable rated voltage 0.6/1kV
| Cable type | Description |
| CJV/DA/SA | XLPE insulated PVC outer sheath shipboard power cable, type DA,SA |
| CJY/SC | XLPE insulated PO outer sheath Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC |
| CJVR/DA/SA | XLPE insulated PVC outer sheath shipboard flexible power cable, type DA,SA |
| CJYR/SC | XLPE insulated PO outer sheath Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC |
| CJV90DA/SA | XLPE insulated PVC inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CJV80/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CJY90/SC | XLPE insulated PO inner sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC |
| CJY80/SC | XLPE insulated PO inner sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard power cable, type SC |
| CJVR90/DA/SA | XLPE insulated PVC inner sheathed galvanized steel wire braided shipboard flexible power cable, type DA,SA |
| CJVR80/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided shipboard flexible power cable, type DA,SA |
| CJYR90/SC | XLPE insulated PO inner sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC |
| CJYR80/SC | XLPE insulated PO inner sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible power cable, type SC |
| CJV92/DA/SA | XLPE insulated PVC inner sheath galvanized steel wire braided PVC outer sheath shipboard power cable, type DA,SA |
| CJV82/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided PVC outer sheath shipboard power cable, type DA,SA |
| CJY93/SC | XLPE insulated PO inner and outer sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard cable, type SC |
| CJY83/SC | XLPE insulated PO inner and outer sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard cable, type SC |
| CJVR92/DA/SA | XLPE insulated PVC inner sheath galvanized steel wire braided PVC outer sheath shipboard flexible power cable, type DA,SA |
| CJVR82/DA/SA | XLPE insulated PVC inner sheathed tinned copper wire braided PVC outer sheath shipboard flexible power cable, type DA,SA |
| CJYR93/SC | XLPE insulated PO inner and outer sheathed galvanized steel wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible cable, type SC |
| CJYR83/SC | XLPE insulated PO inner and outer sheathed tinned copper wire braided Halogen-free, Low-smoke, Low-toxicity flame retardant shipboard flexible cable, type SC |
| CEF/DA/SA | EPR insulated PCP sheath shipboard power cable, type DA,SA |
| CEH/DA/SA | EPR insulated CSP sheath shipboard power cable, type DA,SA |
| CEV/DA/SA | EPR insulated PVC sheath shipboard power cable, type DA,SA |
| CEF90/DA/SA | EPR insulation PCP inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEF80/DA/SA | EPR insulation PCP inner sheath tinned copper wire braided shipboard power cable, type DA,SA |
| CEH90/DA/SA | EPR insulation CSP inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEH80/DA/SA | EPR insulation CSP inner sheath tinned copper wire braided shipboard power cable, type DA,SA |
| CEV90/DA/SA | EPR insulation PVC inner sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEV80/DA/SA | EPR insulation PVC inner sheath tinned copper wire braided shipboard power cable, type DA,SA |
| CEF92/DA/SA | EPR insulation PCP inner sheath PVC outer sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEF82/DA/SA | EPR insulation PCP inner sheath PVC outer sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CEH92/DA/SA | EPR insulation CSP inner sheath PVC outer sheath galvanized steel wire braided shipboard power cable, type DA,SA |
| CEH82DA/SA | EPR insulation CSP inner sheath PVC outer sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CEV92/DA/SA | EPR insulation PVC inner sheath PVC outer sheathed galvanized steel wire braided shipboard power cable, type DA,SA |
| CEV82/DA/SA | EPR insulation PVC inner sheath PVC outer sheathed tinned copper wire braided shipboard power cable, type DA,SA |
| CEFR/DA/SA | EPR insulated PCP sheath shipboard power flexible cable, type DA,SA |
| CEHR/DA/SA | EPR insulated CSP sheath shipboard power flexible cable, type DA,SA |
| CEVR/DA/SA | EPR insulated PVC sheath shipboard power flexible cable, type DA,SA |
| CEFR90/DA/SA | EPR insulation PCP inner sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEFR80/DA/SA | EPR insulation PCP inner sheath tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEHR90/DA/SA | EPR insulation CSP inner sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEHR80/DA/SA | EPR insulation CSP inner sheath tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEVR90/DA/SA | EPR insulated PVC inner sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEVR80/DA/SA | EPR insulated PVC inner sheath tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEFR92/DA/SA | EPR insulation PCP inner sheath PVC outer sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEFR82/DA/SA | EPR insulation PCP inner sheath PVC outer sheathed tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEHR92/DA/SA | EPR insulation CSP inner sheath PVC outer sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEHR82/DA/SA | EPR insulation CSP inner sheath PVC outer sheathed tinned copper wire braided shipboard power flexible cable, type DA,SA |
| CEVR92/DA/SA | EPR insulation PVC inner sheath PVC outer sheath galvanized steel wire braided shipboard power flexible cable, type DA,SA |
| CEVR82/DA/SA | EPR insulation PVC inner sheath PVC outer sheathed tinned copper wire braided shipboard power flex |
We are China FR-Marine Ship Board Wiring 0.6/1kV Rubber Sheathed Cable with Tinned Copper Braiding manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
