Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath

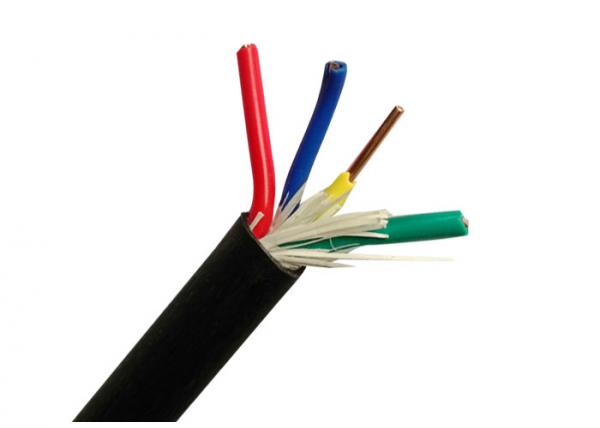

Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath image
Brand Name :
SHANCABLE
Model Number :
BVV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Standard :
IEC 60227
Rated Voltage :
450/750V
Warranty :
2 years
Conductor Temp :
70 degree
Sheath :
PVC
Conductor :
Pure Copper
Color :
Black
Four cores Electrical Cable Wire with CLASS 1 Copper Conductor 450 / 750V Rated Voltage WIth PVC Sheath
Description:
1. Standard IEC60227, BS6004,VDE0281
2. solid bare coppe
3. 300/300v 300/500v 450/750v
4.PVC sheathed , color available
5, PVC temperature: -20 °C to +70 °C , also can be 90 °C and 105 °C PVC
Applications
The cable is suitble to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric enquipment, instrument, eletron equipment, automatization device etc.
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 1×0.75 | 1×1/0.97 | 4.3 | 23 |
| 1×1.0 | 1×1/1.13 | 4.5 | 26.4 |
| 1×1.5(A) | 1×1/1.38 | 4.9 | 34.6 |
| 1×1.5(B) | 1×7/0.52 | 5.2 | 36.5 |
| 1X2.5(A) | 1×1/0.85 | 5.8 | 46.4 |
| 1X4(A) | 1×1/2.25 | 6.4 | 65.9 |
| 1X4(B) | 1×7/0.85 | 6.8 | 73.7 |
| 1X6(A) | 1×1/2.76 | 7.0 | 91.6 |
| 1X10 | 1×7/1.35 | 8.8 | 152.0 |
| 2X1.5(A) | 2×1/1.38 | 10.0 | 109 |
| 2X1.5(B) | 2×7/0.52 | 10.5 | 123 |
| 2X2.5(A) | 2×1/1.78 | 11.5 | 157 |
| 2X2.5(B) | 2×7/0.68 | 12.0 | 172 |
| 2X4(A) | 2×1/2.25 | 12.5 | 205 |
| 2X4(B) | 2×7/0.85 | 13.0 | 222 |
| 2X6(A) | 2×1/2.76 | 13.5 | 265 |
| 2X6(B) | 2×7/1.04 | 14.0 | 286 |
| 2X10 | 2×7/1.35 | 17.5 | 471 |
| 3X1.5(A) | 3×1/1.38 | 10.5 | 136 |
| 3X1.5(B) | 3×7/0.52 | 11.0 | 146 |
| 3X2.5(A) | 3×1/1.78 | 12.0 | 190 |
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 3×2.5(B) | 3X7/0.68 | 12.5 | 207 |
| 3X4(A) | 3X1/2.25 | 13.0 | 252 |
| 3X4(B) | 3X7/0.85 | 13.5 | 272 |
| 3X6(A) | 3X1/2.76 | 14.5 | 344 |
| 3X10 | 3X7/1.35 | 19.0 | 574 |
| 4X1.5(A) | 4X1/1.38 | 11.5 | 164 |
| 4X1.5(B) | 4X7/0.52 | 12.0 | 174 |
| 4X2.5(B) | 4X7/0.68 | 13.5 | 252 |
| 4X4(A) | 4X1/2.25 | 14.5 | 321 |
| 4X4(B) | 4X7/0.85 | 15.0 | 346 |
| 4X6(A) | 4X1/1.04 | 16.0 | 470 |
| 4X6(B) | 4X7/2.76 | 17.0 | 439 |
| 5X1.5(A) | 5X1/1.38 | 12.0 | 192 |
| 5X1.5(B) | 5X7/0.52 | 12.5 | 205 |
| 5X2.5(A) | 5X1/1.78 | 14.0 | 272 |
| 5X2.5(B) | 5X7/0.68 | 14.5 | 292 |
| 5X4(A) | 5X1/2.25 | 16.0 | 397 |
| 5X4(B) | 5X7/0.85 | 17.0 | 418 |
| 5X6(A) | 5X1/2.76 | 17.5 | 518 |
| 5X6(B) | 5X7/1.04 | 18.5 | 550 |
Packing
a) Packing lengths: 100m/roll, 200m/roll, 305m/roll or up to your requirments
b) Inner packing: wooden reel,coil, plastic reel
c) Outer packing: carton box
d) Other packing available according to customer
After-service commitment
Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.
We are China Four Cores Electrical Cable Wire With Solid Copper Conductor 450 / 750V WIth PVC Sheath manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
